Used

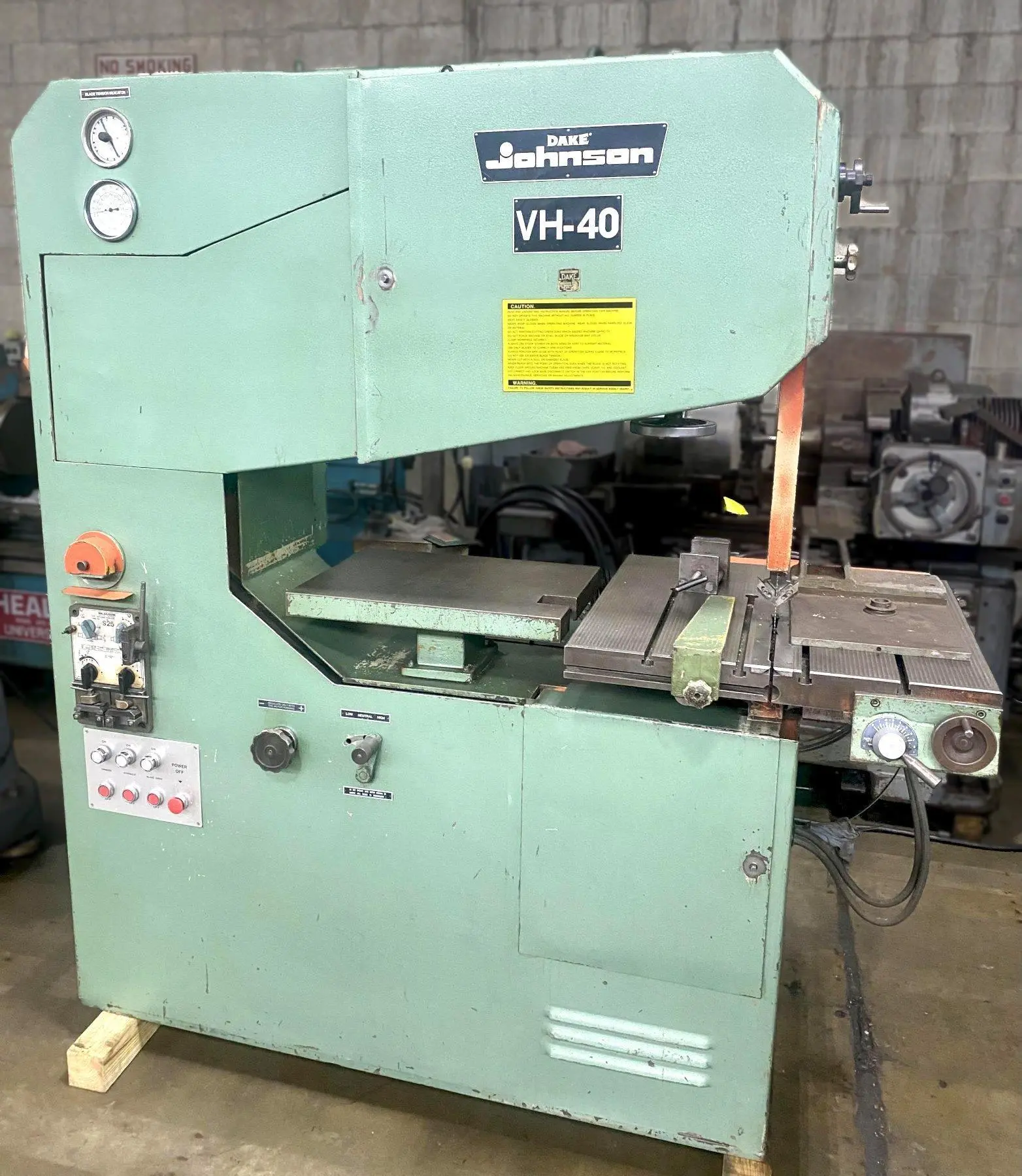

USED 1985 Dake Johnson VH-40

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Band Saws

DAKE JOHNSON VH-40 VERTICAL BAND SAW, 41" Throat Depth, 26" x 26" Table, 12-1/2" Work Height, Power Table Feed, 2.2 HP, New 1985.

Specs
Throat Depth
41"
1,041.4 mm
Max Work Height Capacity
12.5"
317.5 mm
Worktable Dimensions (Overall) - L
26.375"
669.92 mm
Worktable Dimensions (Overall) - W
26.375"
669.92 mm
Worktable Tilt - L
10°
10°
Worktable Tilt - R
30°
30°
Worktable Travel
10"
254 mm
Worktable Height
41"
1,041.4 mm
Blade Length
134"
3,403.6 mm
Max Blade Width
0.75"
19.05 mm
Wheel Diameter
16.5"
419.1 mm
Blade Speeds, Infinitely Variable
Low Range: 50 - 425 FPM | High Range: 425 - 4,250 FPM
Low Range: 50 - 425 FPM | High Range: 425 - 4,250 FPM
Motor Power
2.2 hp
1.6 kW
Electrics
220/440/3
220/440/3
Dimensions
72" x 60" x 78"
72" x 60" x 78"
Weight
2,460 LBS
2,460 LBS

# Table T-Slots: 4
Table Weight Load Capacity: 850 LBS
Wheel Diameter: 16-1/2"
Hydraulic Pump Horsepower: 1/3 HP
Welding Capacity: 1/8" - 1"

Equipped With

Power Table Feed, Blade Welder, Several Extra Blades Included.
