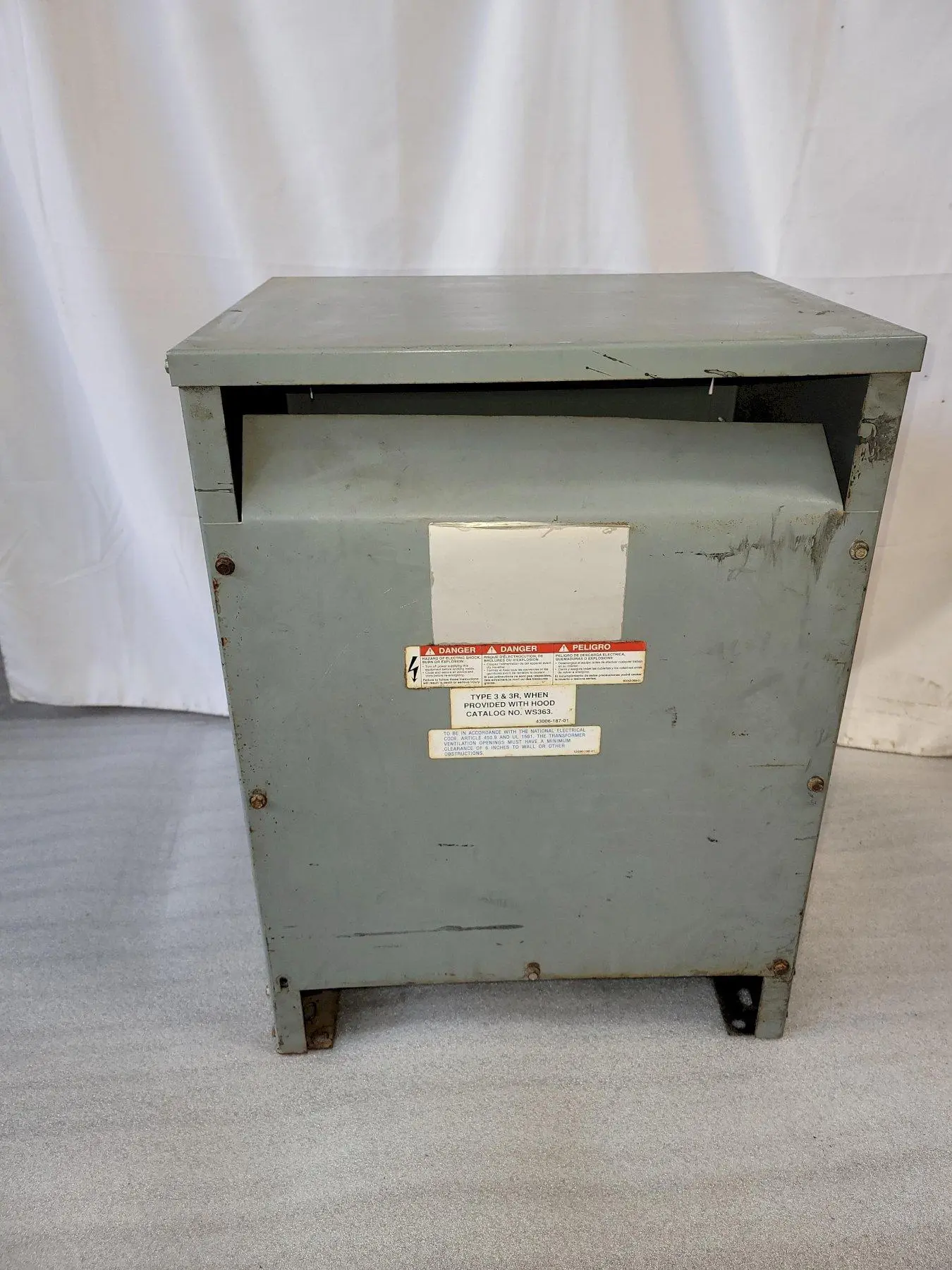

27 KVA SORGEL SQUARE D DRIVE ISOLATION TRANSFORMER, 3-Phase, 460 V Delta Primary to 460Y/265 V Secondary, Dry Type.
| Catalog Number | 27T145HDIT | 27T145HDIT |
| Phase - Electrical | 3 | 3 |
| Primary Input Voltage | 460 V Delta | 460 V |
| Secondary Output Voltage | 460Y/265 V | 460,265 V |
| VA Rating | 27 kV·A | 27 kV·A |
| NEMA Class | AA Dry Type | AA Dry Type |
| Insulation Temperature | 428°F | 220°C |
| Temp Rise | 302°F | 150°C |
| Enclosure Code | 17D | 17D |
| Enclosure Type | NEMA 2 | NEMA 2 |
| Winding Material | Aluminum | Aluminum |
| Dimensions | 20" x 16" x 27" | 20" x 16" x 27" |
| Weight | 271 lbs | 271 lbs |
See attached drawing
