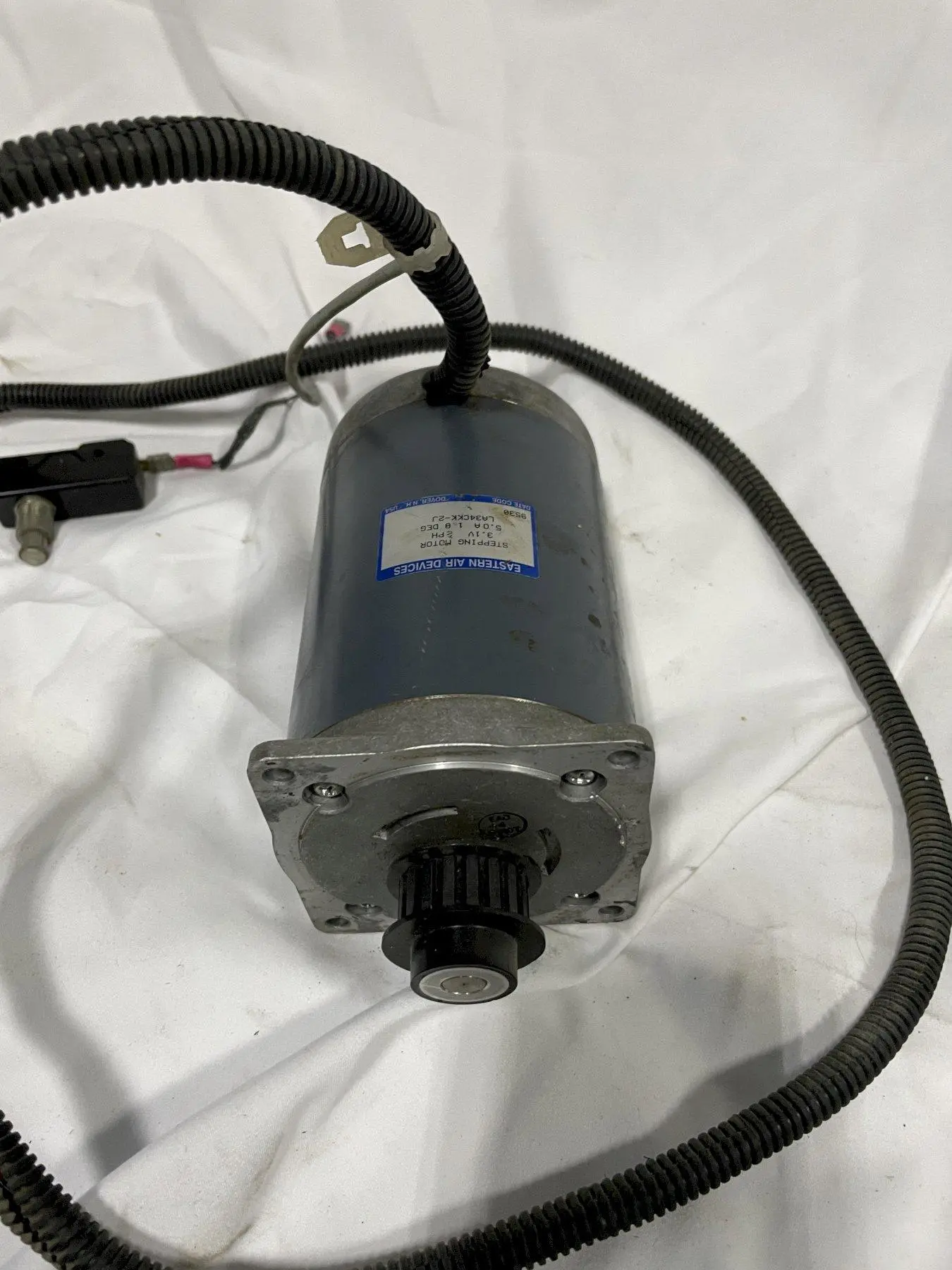

USED Ead LA34CKK-2J
Overview
EAD LA34CKK-2J ROTARY HYBRID STEPPING MOTOR, Size 34, 3.38" Diameter, 1.8°, 6 Leads.
Specs
Size: 34
Drive System: Bipolar, Unipolar
Holding Torque: 496 oz/in Unipolar | 620 oz/in BiPolar
Shaft Diameter: 3.38"
Step Angle: 1.8°
# Leads: 6
Rated Phase Voltage: 2.2 VDC Unipolar | 3.1 VDC BiPolar
Rated Phase Current: 7.1 ADC Unipolar | 5 ADC BiPolar
Resistance (Ω/phase): 0.31 ohms (Ω) Unipolar | 0.62 ohms (Ω) BiPolar
Inductance (mH/phase): 1.81 mH Unipolar | 7.24 mH BiPolar
Rotor Inertia: 0.0265 oz-in-sec²
Insulation Resistance: 2.3°C/watt
Approximate Dimensions: 6" x 7"
Approximate Height: 10"
Approximate Weight: 10 LBS
