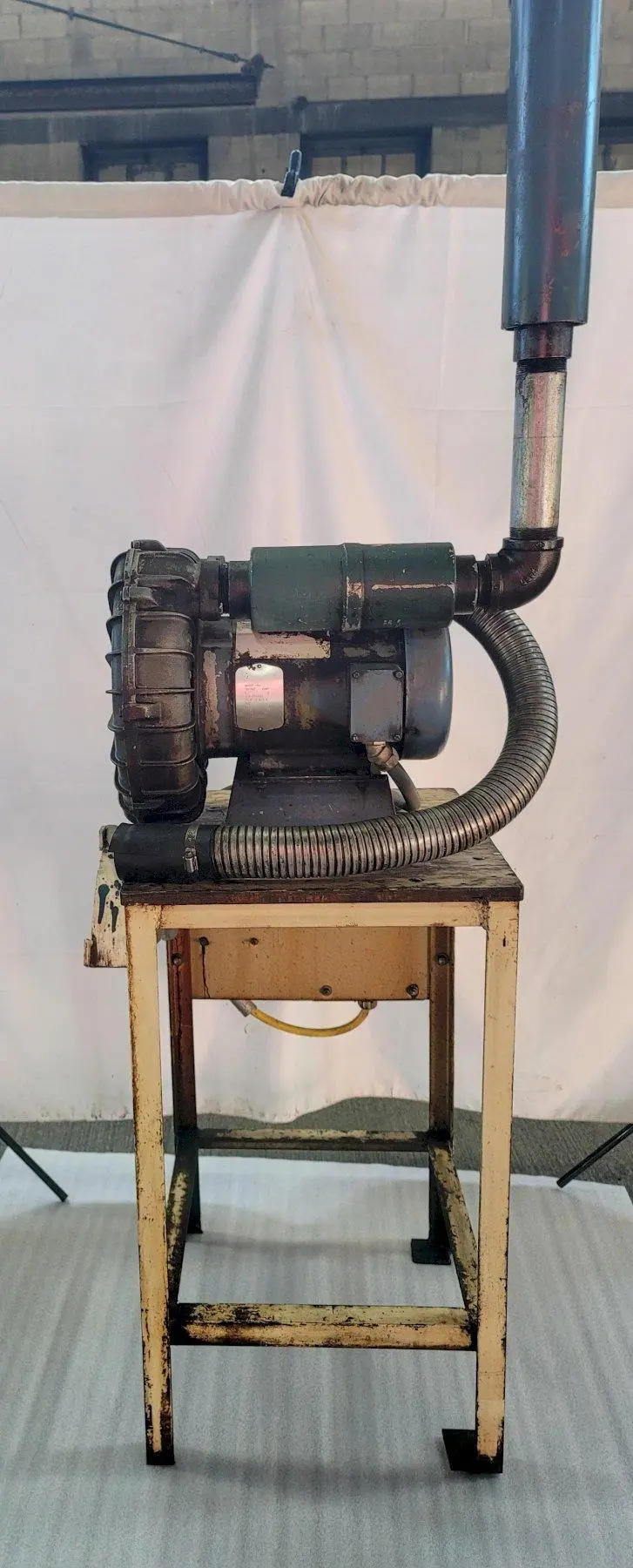

ROTRON RING COMPRESSOR BLOWER WITH BALDOR MOTOR, 5 HP, 3450 RPM.
| Power | 5 hp | 3.7 kW |
| Dimensions | 24x27x76 | 24x27x76 |
| Weight | 233 | 233 |
Spec Number: 36M37-194
Motor Horsepower: 5 HP
Voltage: 208-230/460 V
Base Speed: 3,450 RPM
Frame: 182TCZ
Motor Frequency: 60 Hz
Motor Phase: 3-Phase
Service Factor: 1.15
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 83%
Power Factor: 80%
Ambient and Time Rating: 40° C AMB-CONT
Approximate Dimensions: 24" x 27" x 76"
Approximate Weight: 233 lbs
