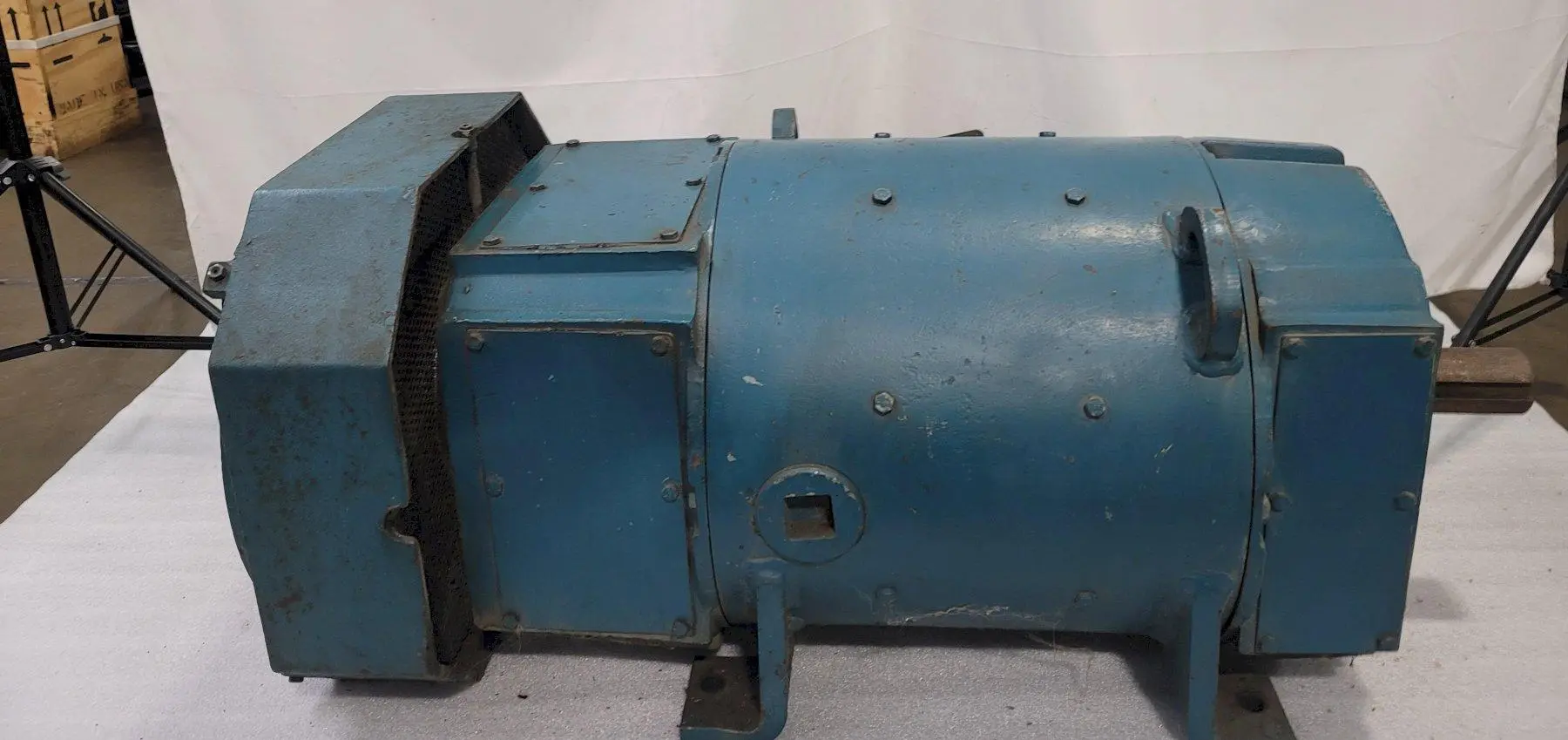

VEE-ARC MOTOR, Model CD368AT-311-001, Motor Controller RIII4-40HP
| Motor Power | 40 hp | 40 hp |
| Actual Rated Input Voltage | 120 V | 120 V |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Dimensions | 43" x 27" x 20" | 43" x 27" x 20" |
| Weight | 1150 | 1150 |
Motor Horsepower: 40 HP
Actual Rated Input Voltage: 120 V
Insulation Class: F (Max 155° C)
Approximate Dimensions: 43" x 27"
Approximate Height: 20"
Approximate Weight: 1,150 LBS
Motor Controller Number RIII4-40HP
Series DU-1-144 DU
Thermal Protection 150° C
40 HP @ 2500 RPM
Speed Range 0-2,500 RPM
Armature Voltage 0 - 500 VDC
Field Voltage 120 VDC
Armature Current F.L. 66.0 Amps
Field Current 2.28 Amps
