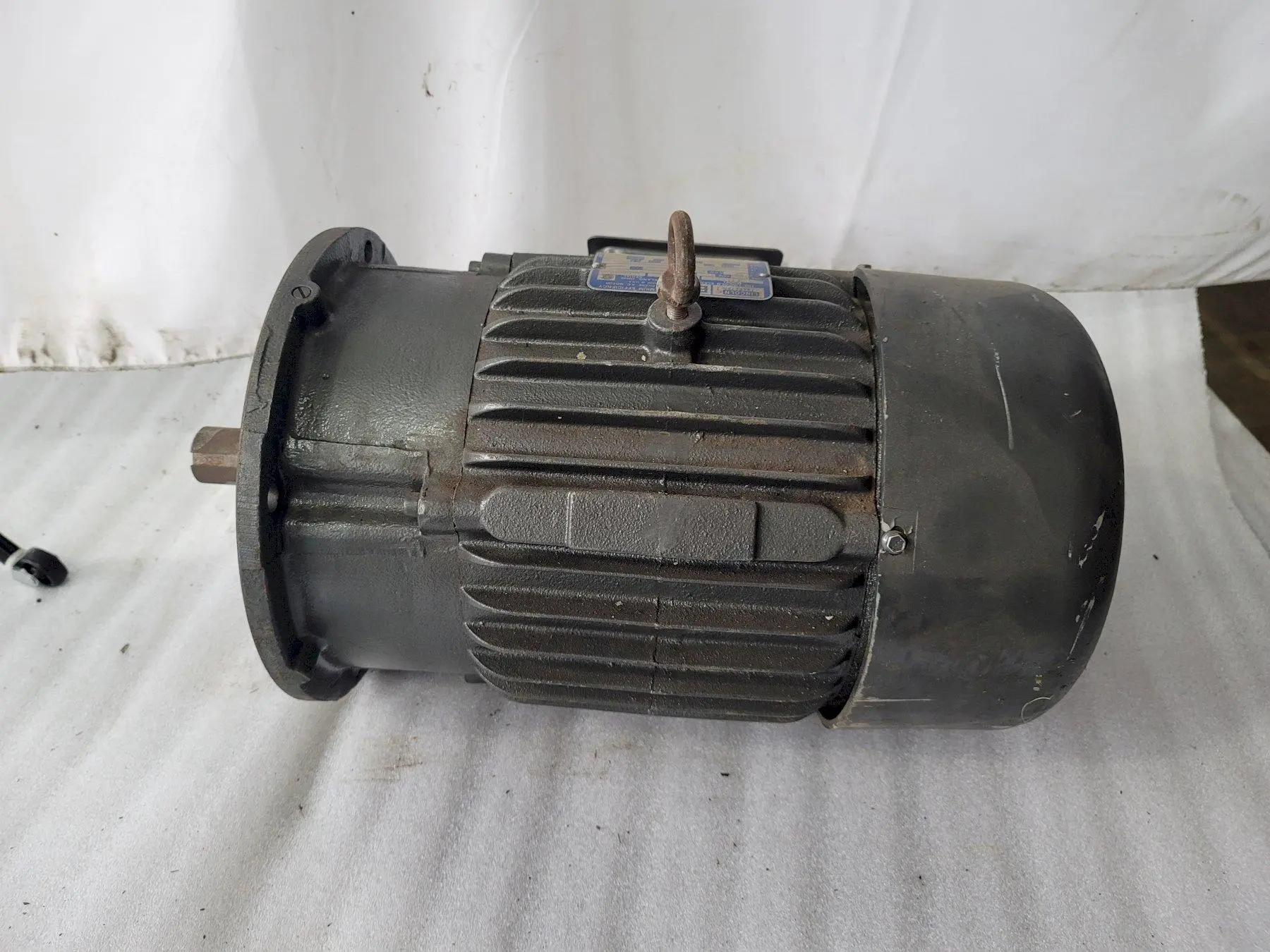

10 HP LINCOLN E2 PREMIUM EFFICIENCY MOTOR, Model JR552702
| Motor Power | 10 hp | 10 hp |
| Actual Rated Input Voltage | 230,460 V | 230,460 V |
| Full Load Amps | 26.6 A | 26.6 A |
| Base Speed | 1,750 RPM | 1,750 RPM |
| Frame | 215 TD | 215 TD |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | -3 | -3 |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | G | G |
| NEMA Design Letter | B | B |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 89.8 | 89.8 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Dimensions | 20" x 10" | 20" x 10" |
| Weight | 175 | 175 |
Motor Horsepower: 10 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 26.6 A
Base Speed: 1,750 RPM
Frame: 215 TD
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Service Factor: 1.15
NEMA KVA Code: G
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 89.8
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Approximate Dimensions: 20" x 10"
Approximate Height: 12"
Approximate Weight: 175 LBS
