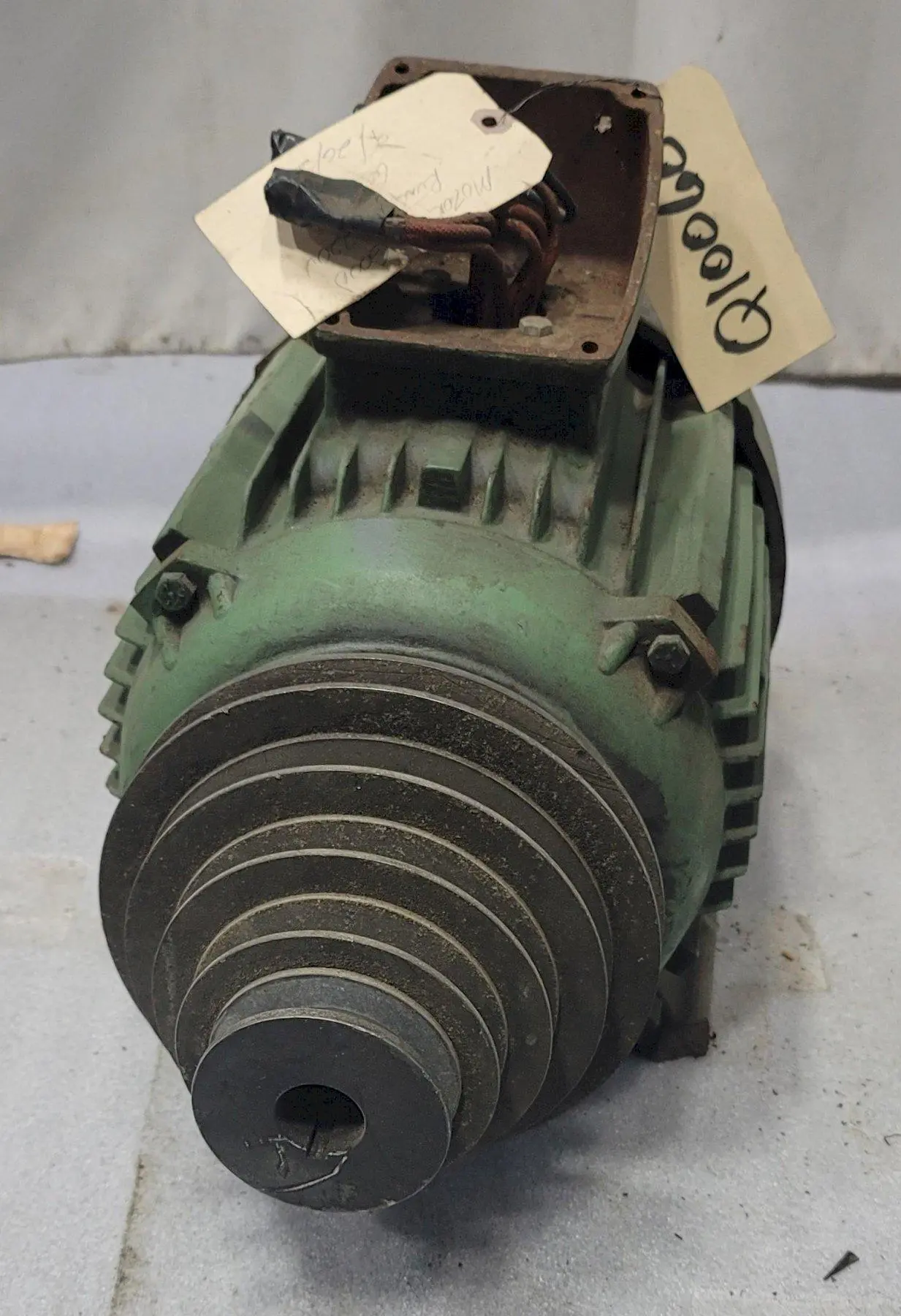

2 HP WESTINGHOUSE LIFE-LINE A MOTOR, Model ADFC
| Motor Power | 2 hp | 2 hp |
| Actual Rated Input Voltage | 220 V | 220 V |
| Full Load Amps | 10 A | 10 A |
| Base Speed | 790 RPM | 790 RPM |
| Frame | 215 | 215 |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | -3 | -3 |
| NEMA KVA Code | G | G |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Ambient and Time Rating | 40° C AMB | 40° C AMB |
| Drive End (DE) | 374P688G01 | 374P688G01 |
| Opposite Drive End (ODE) | 374P687G01 | 374P687G01 |
| Dimensions | 21" x 12" | 21" x 12" |
| Weight | 150 | 150 |
AC Motor Type: Special Reversing Duty
Motor Horsepower: 2 HP
Actual Rated Input Voltage: 220/440 V
Full Load Amps: 10/5 A
Base Speed: 790 RPM
Frame: 215
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
NEMA KVA Code: G
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB
Drive End (DE): 374P688G01
Opposite Drive End (ODE): 374P687G01
Current Type: AC
Approximate Dimensions: 21" x 12"
Approximate Height: 15"
Approximate Weight: 150 LBS
