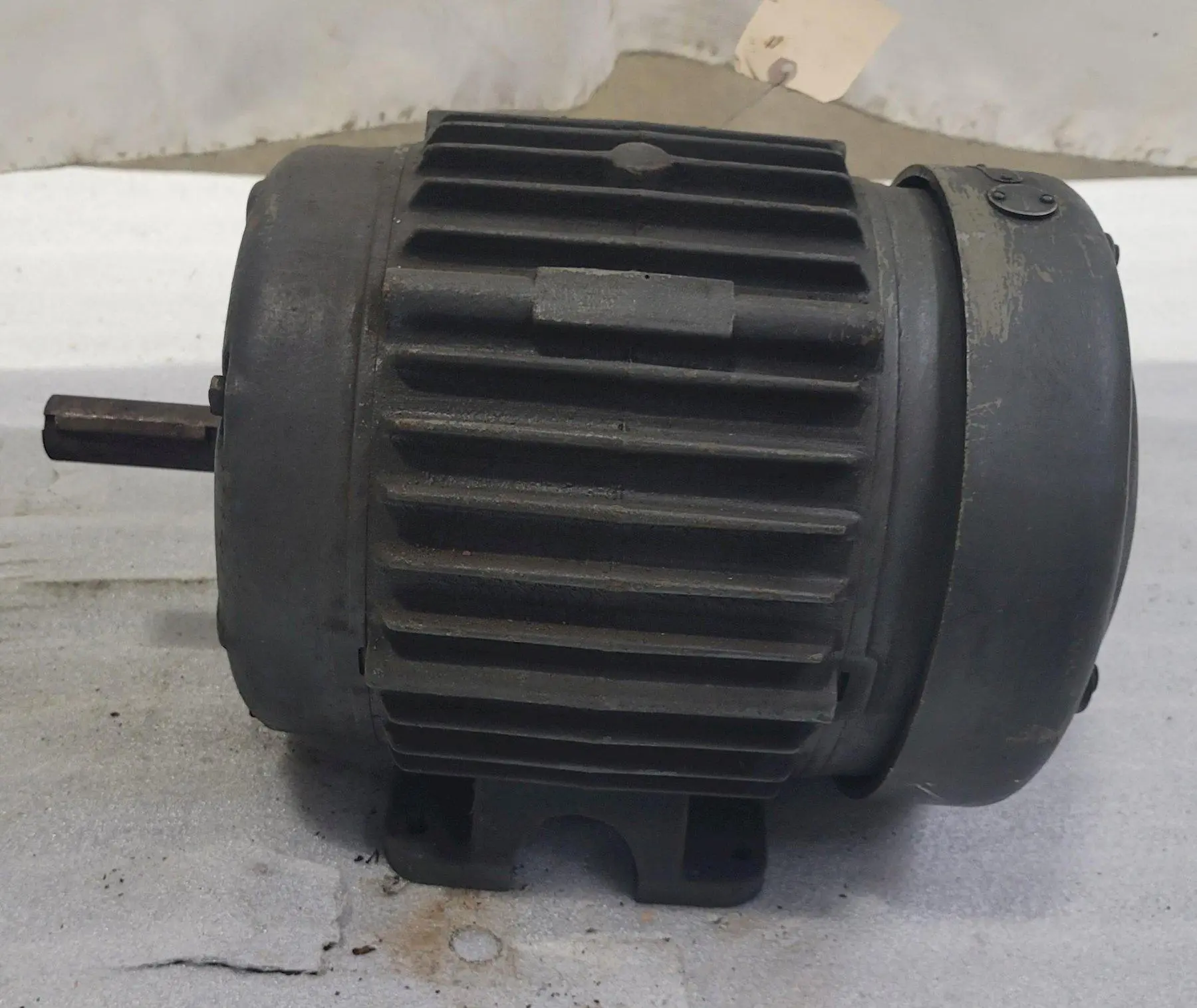

3 HP HOWELL ELECTRIC AC MOTOR, Model 124B-53011
| Motor Power | 3 hp | 3 hp |
| Actual Rated Input Voltage | 220 V | 220 V |
| Full Load Amps | 4.2 A | 4.2 A |
| Base Speed | 1,730 RPM | 1,730 RPM |
| Frame | C213 | C213 |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | J | J |
| NEMA Design Letter | B | B |
| Insulation Class | B (Max 130° C / 266° F) | B (Max 130° C / 266° F) |
| Dimensions | 17x14x11 | 17x14x11 |
| Weight | 100 | 100 |
AC Motor Type: NK
Motor Horsepower: 3 HP
Actual Rated Input Voltage: 208-220/440 V
Full Load Amps: 8.4/4.2 A
Base Speed: 1730 RPM
Frame: C213
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Service Factor: 1.15
NEMA KVA Code: J (Locked Rotor Code: 7.1 - 7.99 kVA)
NEMA Design Letter: B (General Purpose)
Insulation Class: B (Max 266°F)
Current Type: AC
Approximate Dimensions: 17" x 14"
Approximate Height: 11"
Approximate Weight: 100 LBS
