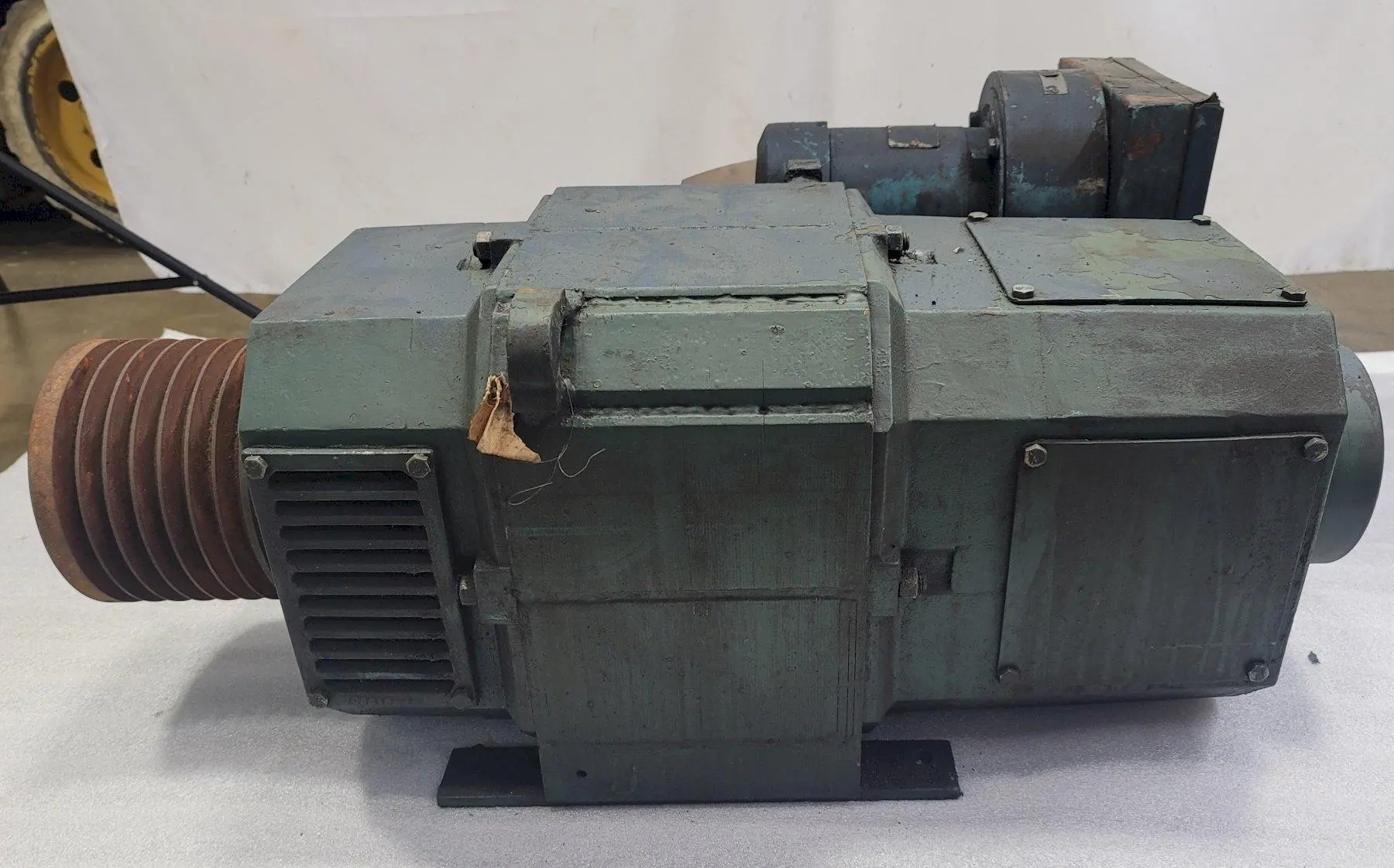

RELIANCE 2/3 HP MOTOR, Type TR, 115-345 RPM.
| Power | 2/3 hp | 2.2 kW |
| Base Speed | 115/345 RPM | 345 RPM |
| Armature Voltage | 24 V | 24 V |
| Armature Amps | 75/11 A | 75 A |
| Wound | STR. SHUNT | STR. SHUNT |
| Field Amps | 2.48/.53 A | 2.5 A |
| Field Voltage | 24 V | 24 V |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Duty | MTD | MTD |
| Frame | 287AT | 287AT |
| Current Type | DC | DC |
| Dimensions | 36" x 26" x 15.5" | 36" x 26" x 15.5" |
| Weight | 650 lbs | 650 lbs |
