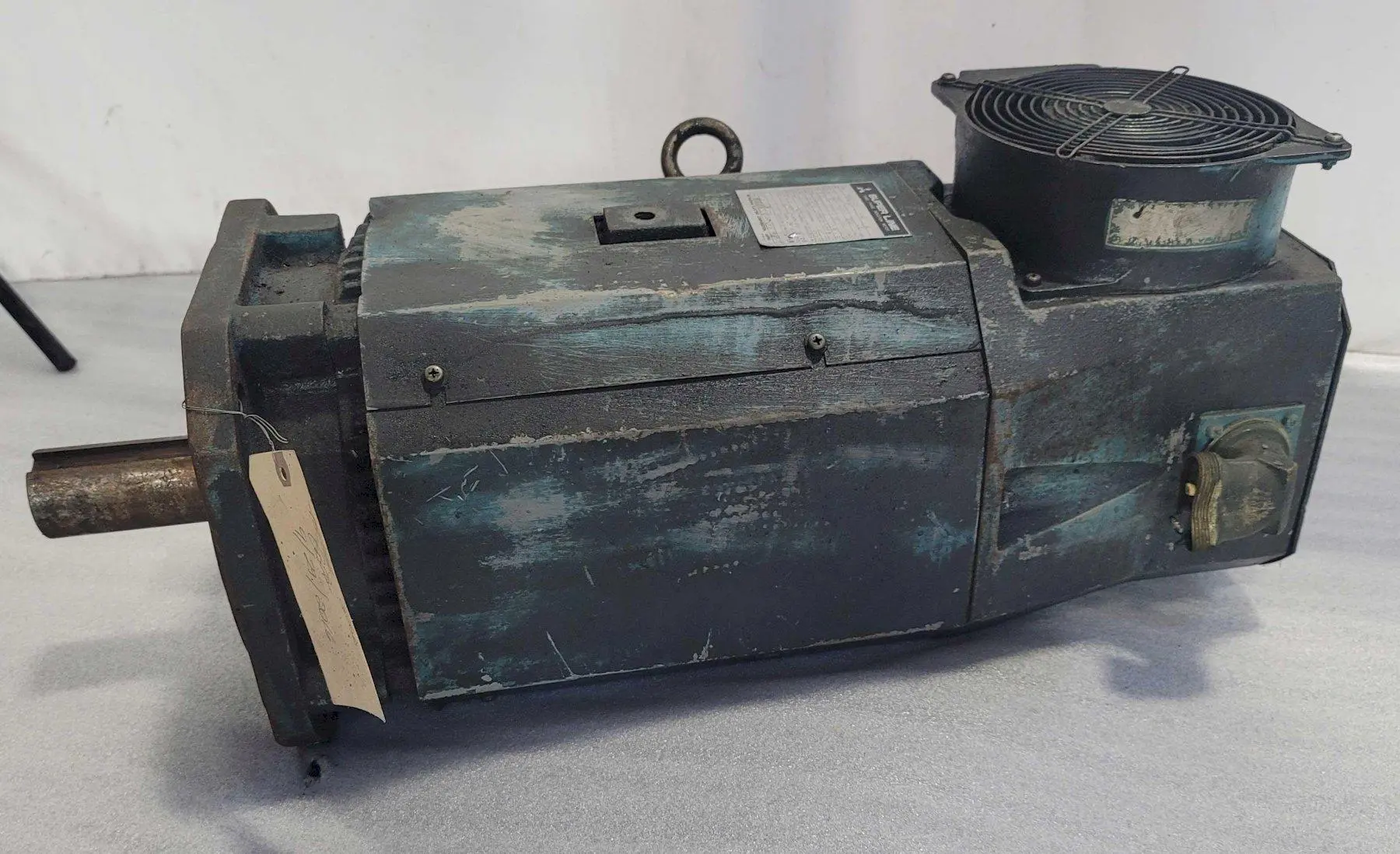

7.5 KW MITSUBISHI ELECTRIC SUPER LINE AC INDUCTION MOTOR, 130/170 VAC, 3-Phase, 4500 RPM, 53 Amps, L5-B132 Frame, Continuous Duty.
| AC Motor Type | Induction | Induction |
| Motor Power | 10 hp | 10 hp |
| Actual Rated Input Voltage | 130 V | 130 V |
| Full Load Amps | 53 A | 53 A |
| Base Speed | 4,500 RPM | 4,500 RPM |
| Frame | L5-B132 | L5-B132 |
| Motor Phase | -3 | -3 |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Drive End (DE) | 6310ZZ | 6310ZZ |
| Opposite Drive End (ODE) | 6308ZZ | 6308ZZ |
| Nominal Rated Input Voltage | 460 V | 460 V |
| Dimensions | 27 x 11 | 27 x 11 |
| Weight | 232 LBS | 232 LBS |
AC Motor Type: Induction
Motor Horsepower: 10 HP
Actual Rated Input Voltage: 130/170 V
Full Load Amps: 53/35 A
Base Speed: 4,500 RPM
Frame: L5-B132
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB-CONT
Drive End (DE): 6310ZZ
Opposite Drive End (ODE): 6308ZZ
Current Type: AC
Nominal Rated Input Voltage: 460 V, 230 V
Approximate Dimensions: 27" x 11"
Approximate Height: 12"
Approximate Weight: 232 LBS
