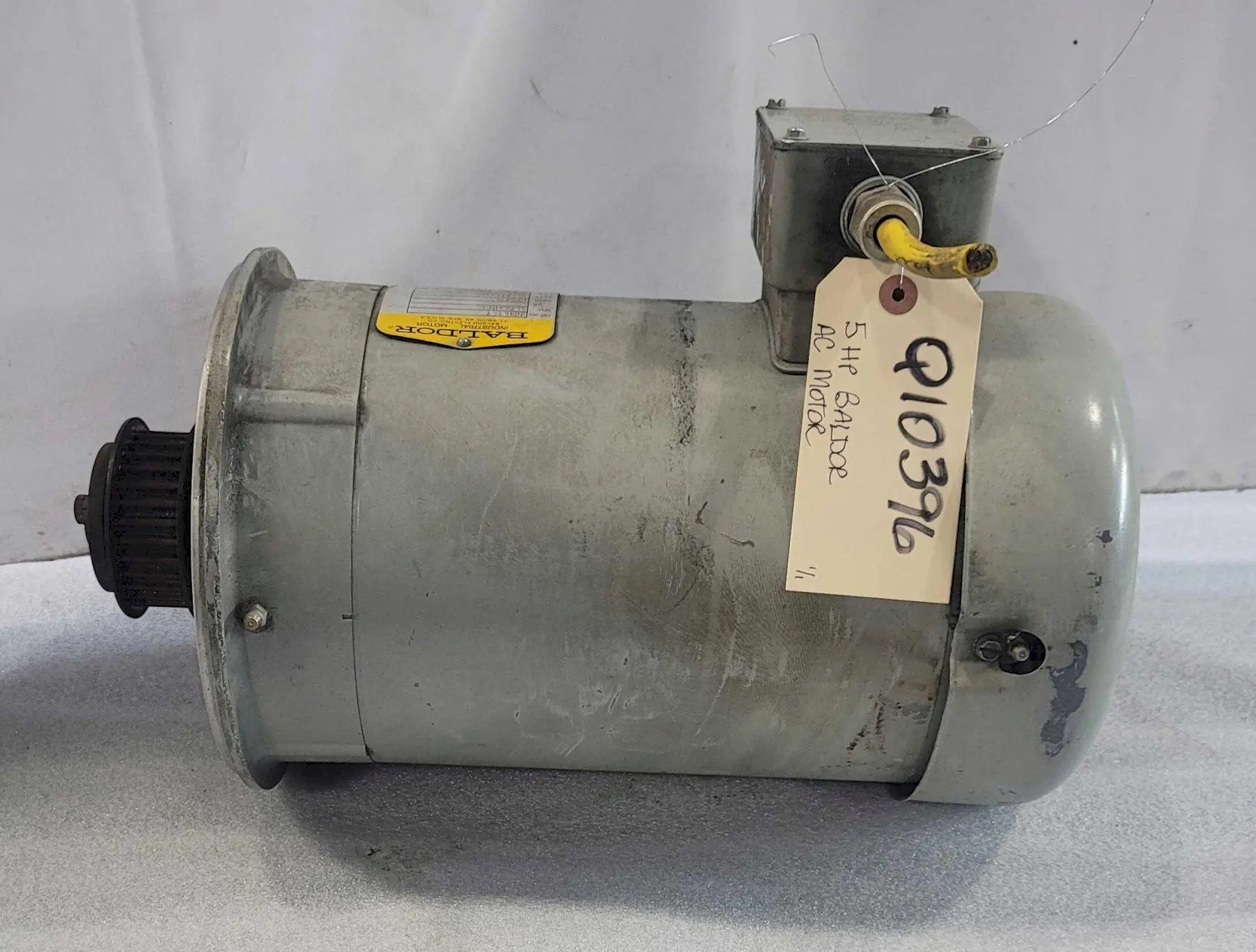

BALDOR INDUSTRIAL AC MOTOR, Cat No VM3615T, 5 HP, 230/460 VAC, 3-Phase, 1725 RPM, 13.2/6.6 Amps, 184TC Frame, TEFC.
| Spec Number | 36A03W415 | 36A03W415 |
| Motor Power | 5 hp | 5 hp |
| Actual Rated Input Voltage | 230,460 V | 230,460 V |
| Full Load Amps | 13.3 A | 13.3 A |
| Base Speed | 1,725 RPM | 1,725 RPM |
| Frame | 184TC | 184TC |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | J | J |
| NEMA Design Letter | B | B |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 85.5 | 85.5 |
| Power Factor | 80 | 80 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Drive End (DE) | 6206 | 6206 |
| Opposite Drive End (ODE) | 6205 | 6205 |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Dimensions | 19" x 12" | 19" x 12" |
| Weight | 74 | 74 |
Spec Number: 36A03W415
Motor Horsepower: 5 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 13.2/6.6 A
Base Speed: 1,725 RPM
Frame: 184TC
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.15
NEMA KVA Code: J (Locked Rotor Code: 7.1 - 7.99 kVA)
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 85.5%
Power Factor: 80%
Ambient and Time Rating: 40° C AMB-CONT
Drive End (DE): 6206
Opposite Drive End (ODE): 6205
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Current Type: AC
Approximate Dimensions: 19" x 12"
Approximate Height: 15"
Approximate Weight: 74 LBS
