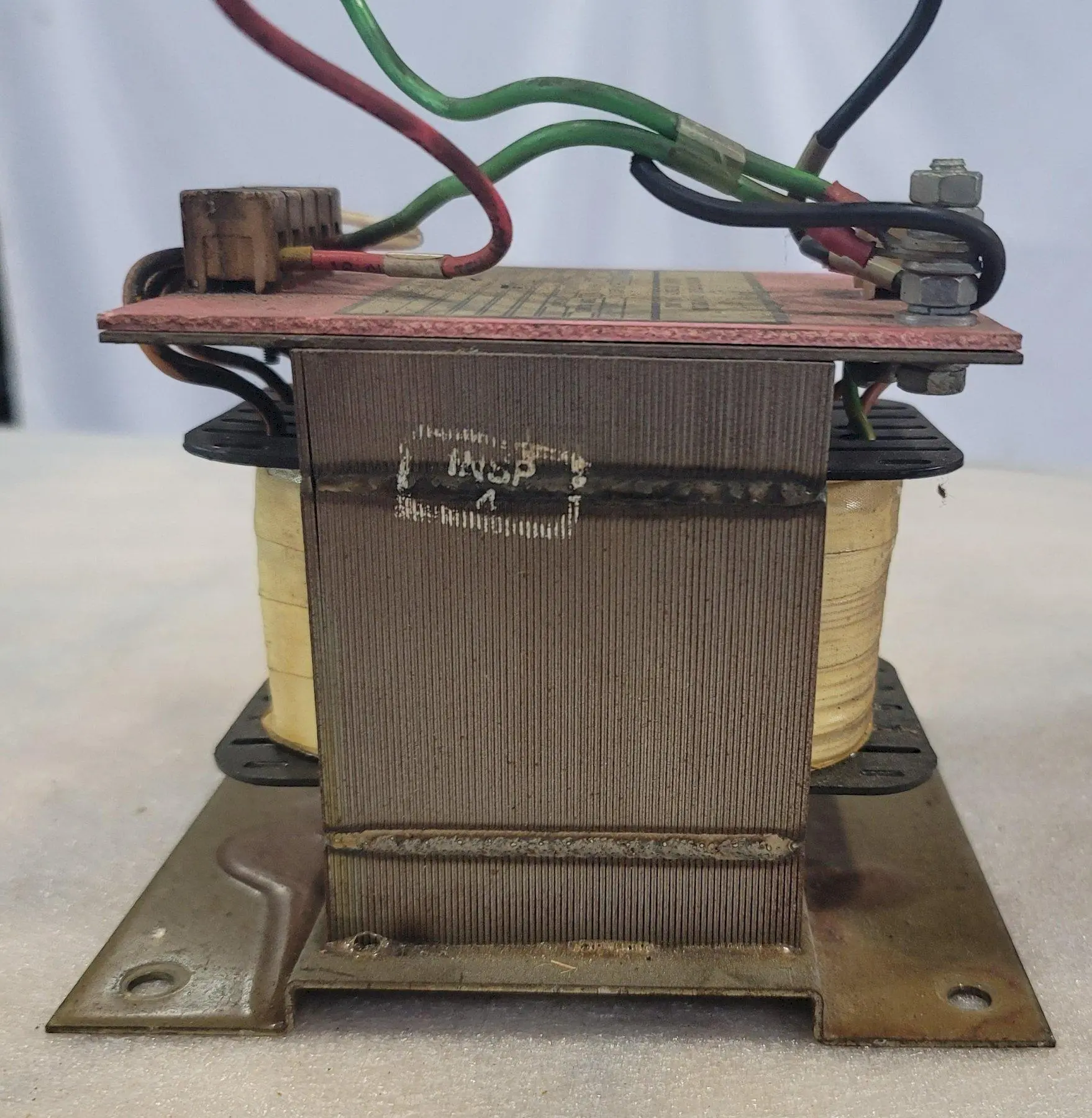

400 VA ROMARSH TRANSFORMER, Part No TX405/1-5, Spec No 1265166-8/91, Single Phase, 230 V Primary to 100/110/115 V Secondary, 50/60 Hz, Dry Type.
| Catalog Number | TX405/1-5 | TX405/1-5 |
| Phase - Electrical | Single Phase | Single Phase |
| Primary Input Voltage | 230 V | 230 V |
| Secondary Output Voltage | 100,115 V | 100,115 V |
| VA Rating | 0.4 kV·A | 0.4 kV·A |
| Frequency | 5,060 Hz | 5,060 Hz |
| Temp Class | 248°F | 120°C |
| Dimensions | 5-1/2 x 6-1/2 | 5-1/2 x 6-1/2 |
| Weight | 15 LBS | 15 LBS |
Phase - Electrical: Single Phase
Primary Input Voltage: 230 V
Secondary Output Voltage: 100, 115 V
VA Rating: 400 VA (0.4 kVA)
Frequency: 50/60 Hz
Temp Class: E (Max 120° C)
Cooling Method: A/N
Approximate Dimensions: 5-1/2" x 6-1/2"
Approximate Height: 5-1/2"
Approximate Weight: 15 LBS
