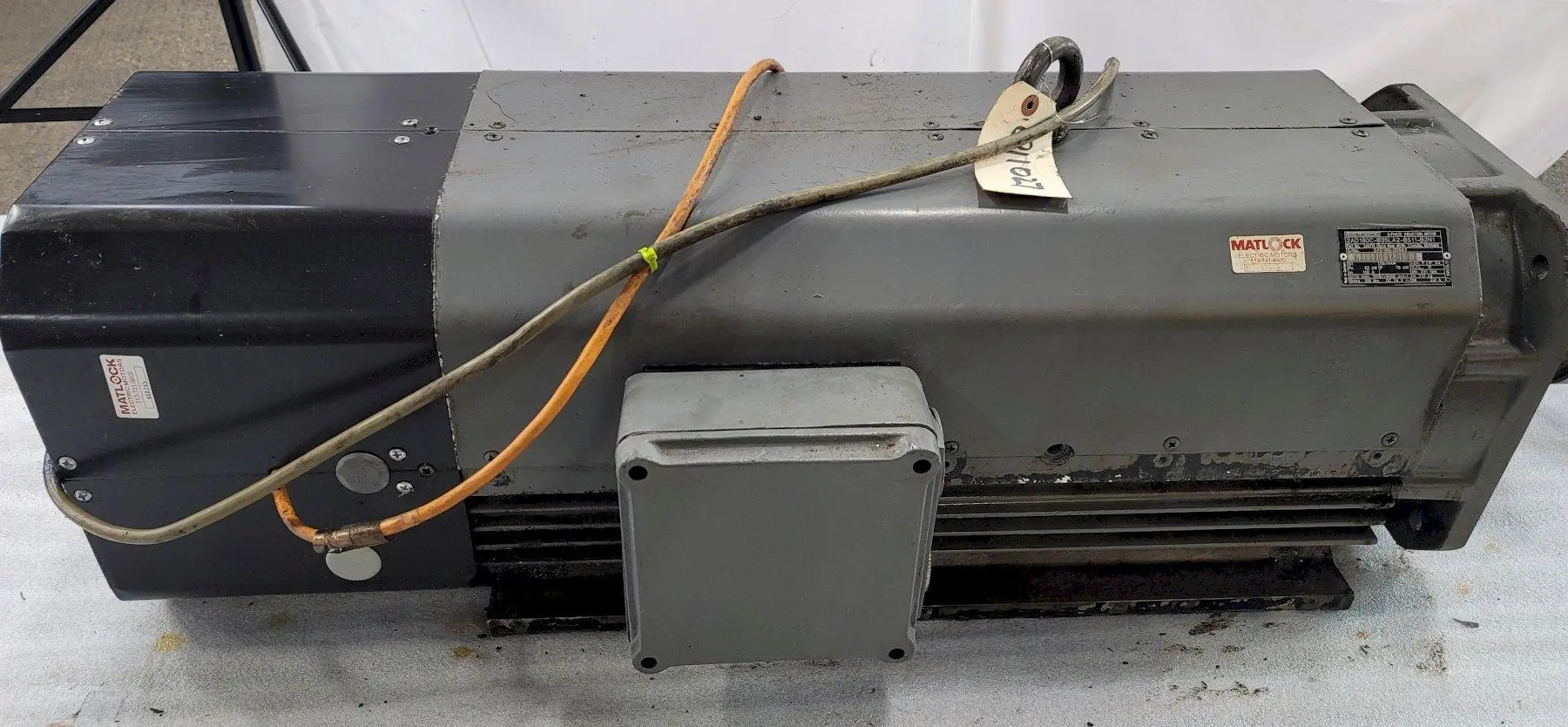

INDRAMAT 3-PHASE AC INDUCTION MOTOR 2AD180C-B35LA2-BS11-B2N1
| AC Motor Type | Induction | Induction |
| Spec Number | 2AD180-63 | 2AD180-63 |
| Rated/Full-Load Torque | 331 | 331 |
| Motor Power | 69.7 hp | 69.7 hp |
| Full Load Amps | 110 A | 110 A |
| Base Speed | 1,500 RPM | 1,500 RPM |
| Motor Phase | 3 | 3 |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP54 | IP54 |
| Mounting Type | Foot-Mounted | Foot-Mounted |
| Dimensions | 51" x 19" x 15" | 51" x 19" x 15" |
| Weight | 850 LBS | 850 LBS |
AC Motor Type: Induction
Spec Number: 2AD180-63
Rated/Full-Load Torque: 331 Nm
Motor Power: 52 kW
Full Load Amps: 110 A
Base Speed: 1,500 RPM
Motor Phase: 3 Phase
Insulation Class: F (Max 155° C)
Enclosure Rating: IP54
Current Type: AC
Mounting Type: Flange and Foot Mounting
Approximate Dimensions: 51" x 19"
Approximate Height: 15"
Approximate Weight: 850 LBS
Axial In-Take Cooling Mode
PART NO 249775
BUILD WEEK 40/95
COM NO 00156403
S.NO 2AD180-00843
