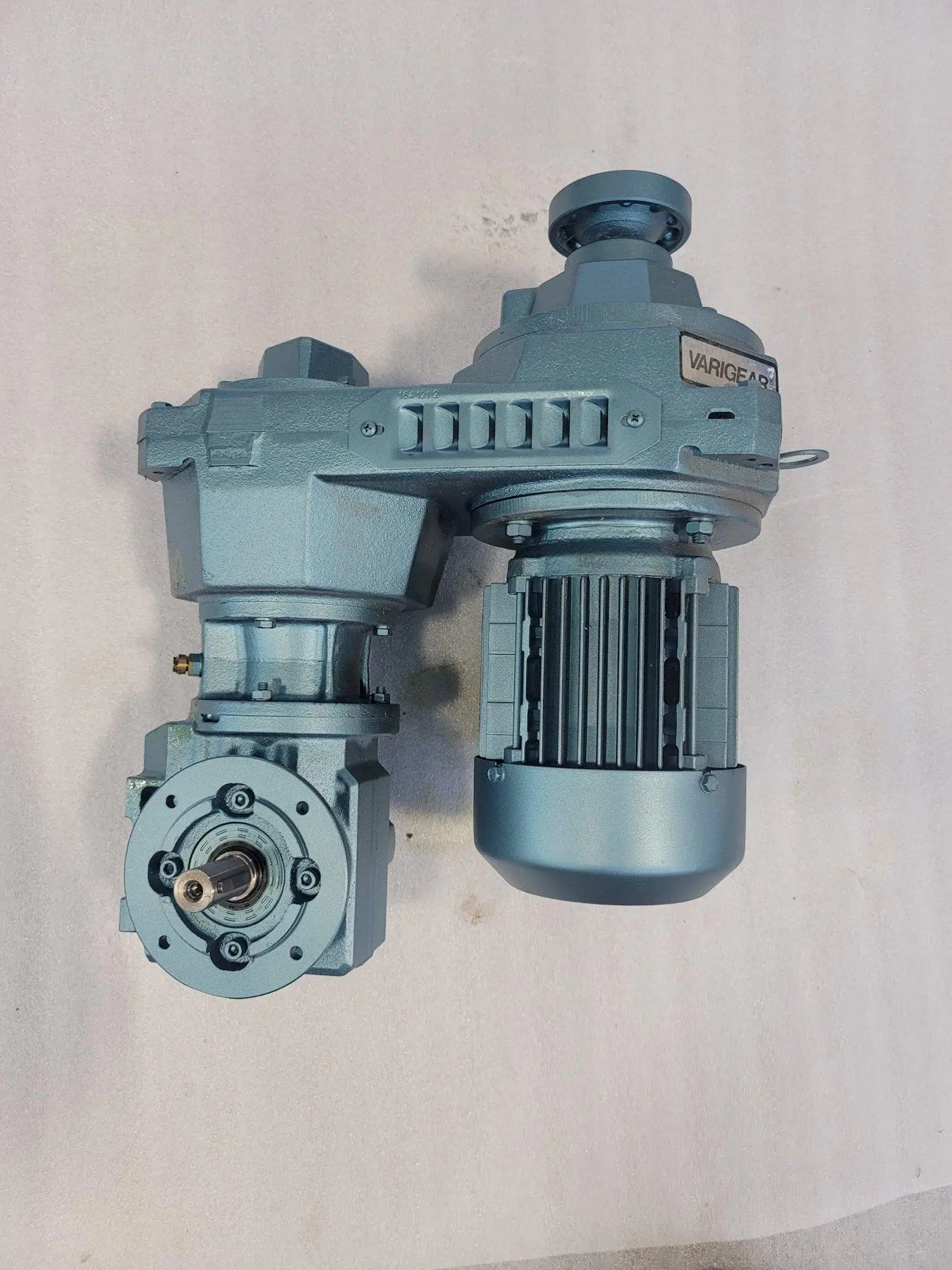

SEW-EURODRIVE VARIGEAR HELICAL-WORM GEAR UNIT (GEARBOX + MOTOR), New 2003.
| Gear Box Model | SF37VU01DT71D4 | SF37VU01DT71D4 |
| Gear Ratio | 122.94 | 122.94 |
| Mounting Position | M4B | M4B |
| Shaft Diameter | 20 | 20 |
| Flange Diameter | 4.72" | 119.89 mm |
| Terminal Box Position | 180 | 180 |
| Gear Box Max Output Torque | 525 | 525 |
| Service Factor | 1 | 1 |
| Motor Power | 0.5 hp | 0.4 kW |
| NEMA Design Letter | B | B |
| Insulation Class | B (Max 130° C / 266° F) | B (Max 130° C / 266° F) |
| Motor Voltage | 460 V | 460 V |
| Motor Frequency | 60 Hz | 60 Hz |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Wiring Diagram | DT79 | DT79 |
| Rated Current | 2 A | 2 A |
| NEMA KVA Code | H | H |
| NEMA Design Letter | B | B |
| Dimensions | 18" x 11" x 15" | 18" x 11" x 15" |
| Weight | 32.20 | 32.20 |
Gear Ratio: 122.94
Output Speed: 6.0 - 31 RPM
Mounting Position: M4B
Shaft Diameter: 20 mm
Flange Diameter: 120 mm
Terminal Box Position: 180
Output Torque: 525 LB-IN
Service Factor: 1.0
Motor Horsepower: 0.5 HP
Motor Voltage: 230YY/460Y V
Motor Frequency: 60 Hz
Ambient and Time Rating: 40° C AMB-CONT
Wiring Diagram: DT79
Rated Current: 2.00 / 1.00 A
NEMA KVA Code: H
NEMA Design Letter: B (General Purpose)
Insulation Class: B (130° C)
Approximate Dimensions: 18" x 11"
Approximate Height: 15"
Approximate Weight: 71 LBS
