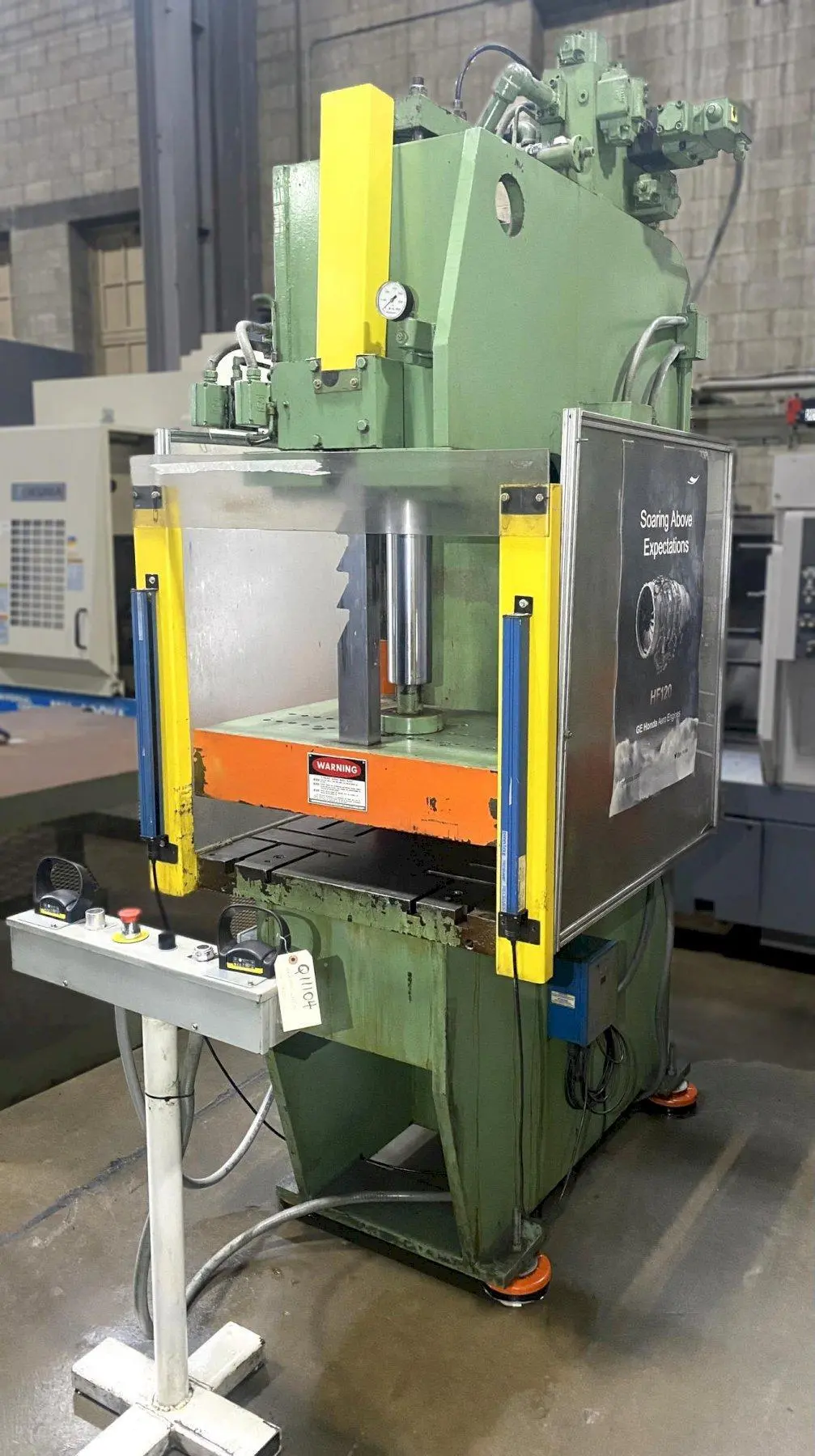

28 TON HANNIFIN OGP-28 C-FRAME HYDRAULIC GAP PRESS, 19" Stroke, 22.5" Throat, 32" x 22.5" Bed.
| Tonnage Capacity | 28 T | 25.401 t |
| Stroke Length | 19" | 482.6 mm |
| Throat Depth | 22.5" | 571.5 mm |
| Main Cylinder Diameter | 4" | 101.6 mm |
| Bed Size (L-R) | 32" | 812.8 mm |
| Bed Size (F-B) | 22.5" | 571.5 mm |
| Working Surface Size: Upper Platen-L | 32" | 812.8 mm |
| Working Surface Size: Upper Platen-W | 22.5" | 571.5 mm |
| Working Surface Size: Lower Platen-L | 32" | 812.8 mm |
| Working Surface Size: Lower Platen-W | 22.2" | 563.88 mm |
| Max Pressure | 1,980 PSI | 13,651,594.8 Pa |
| Max Distance Bed to Floor | 38" | 965.2 mm |
| Hydraulic Pump Power | 20 hp | 14.9 kW |
| Hydraulic Reservoir Capacity | 55 gal | 0.2 m³ |
| Motor Speed | 1,750 RPM | 1,750 RPM |
| Electrics | 230/460 Operating Voltage 460 | 230/460 Operating Voltage 460 |
| Dimensions | 40" x 60" x 113" | 40" x 60" x 113" |
Dual Palm Button, Emergency Stop Pushbutton. Light Curtain, Start and Motor Stop Pushbutton, Parts Counter, Pressure Gauge.
