USED Himmelstein 6-02T(1-4)

USD $975.00
1 available
Overview
Manufacturer:
HIMMELSTEIN
Stock #:
Q10963b
Description

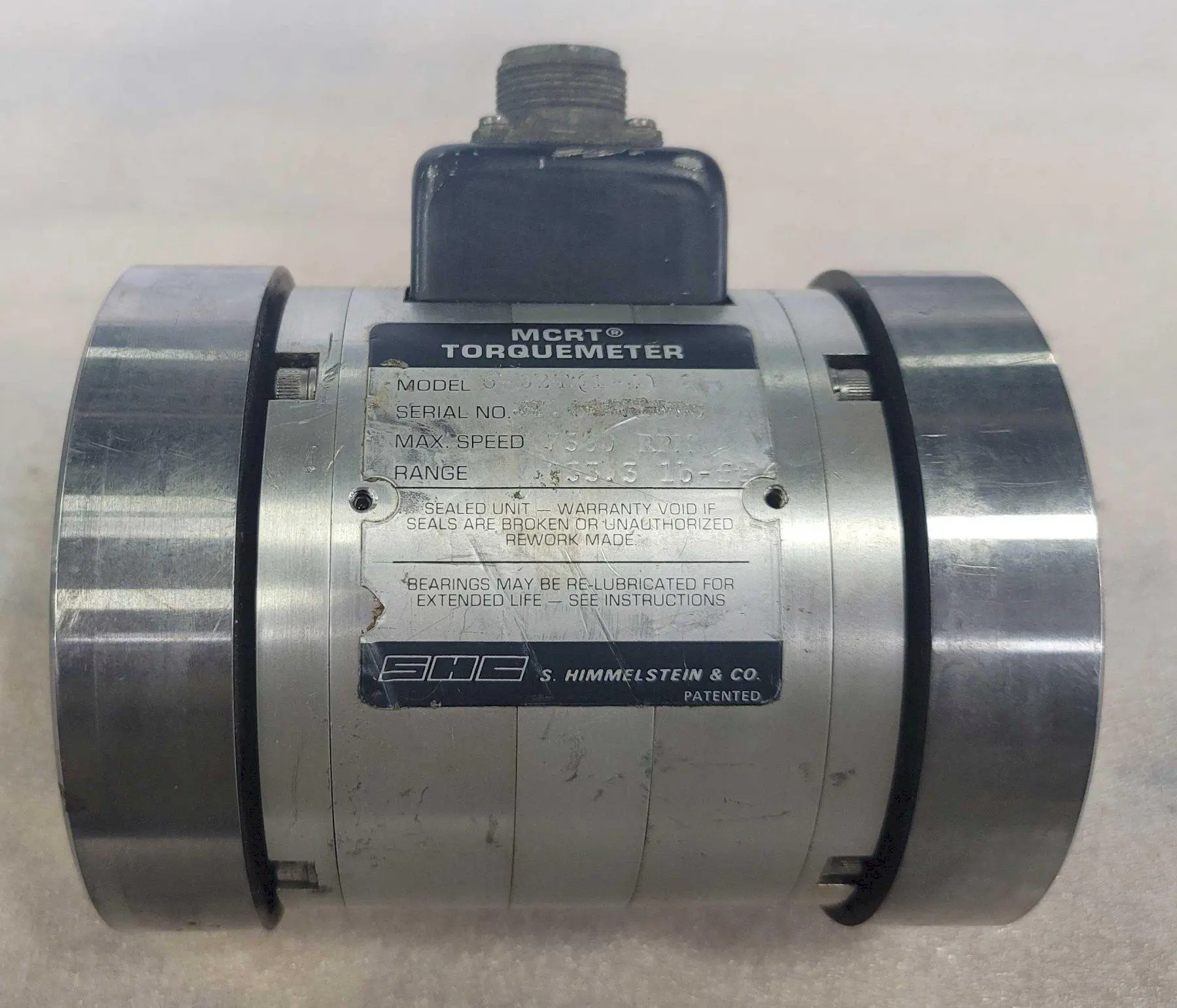

HIMMELSTEIN MCRT® NON-CONTACT TORQUEMETER, Model 6-02T(1-4), 7500 RPM.

Specifications
Capacity633.3 lbf2.8 kN
Dimensions6" x 6" x 5.5"6" x 6" x 5.5"
Weight13 LBS13 LBS

Full Scale Torque: 633.3 lb-ft
Max Speed: 7,500 RPM
Non-Linearity: ±0.1% of Full Scale
Non-Repeatability: ±0.05% of Full Scale
Hysteresis: 0.1% of Full Scale
Approximate Dimensions: 6" x 6" x 5-1/2"
Approximate Weight: 13 LBS

Equipped With

From the Manufacturer:
The MCRT® 6-02T is a compact, high accuracy, flanged torquemeter well adapted for vehicle drive-line measurements and continuous monitoring and feedback applications. It uses a rotating strain gage torque bridge, temperature compensated for drift and modulus. The bridge is connected to a stationary electronic readout via integral, non-contact rotary transformers.

The torquemeter is immune to water, lubricants, coolants, vibration, etc. The elimination of slip-rings permits high accuracy low level measurements with long, maintenance-free life. Thrust and bending loads are inherently cancelled by the transducer design.
