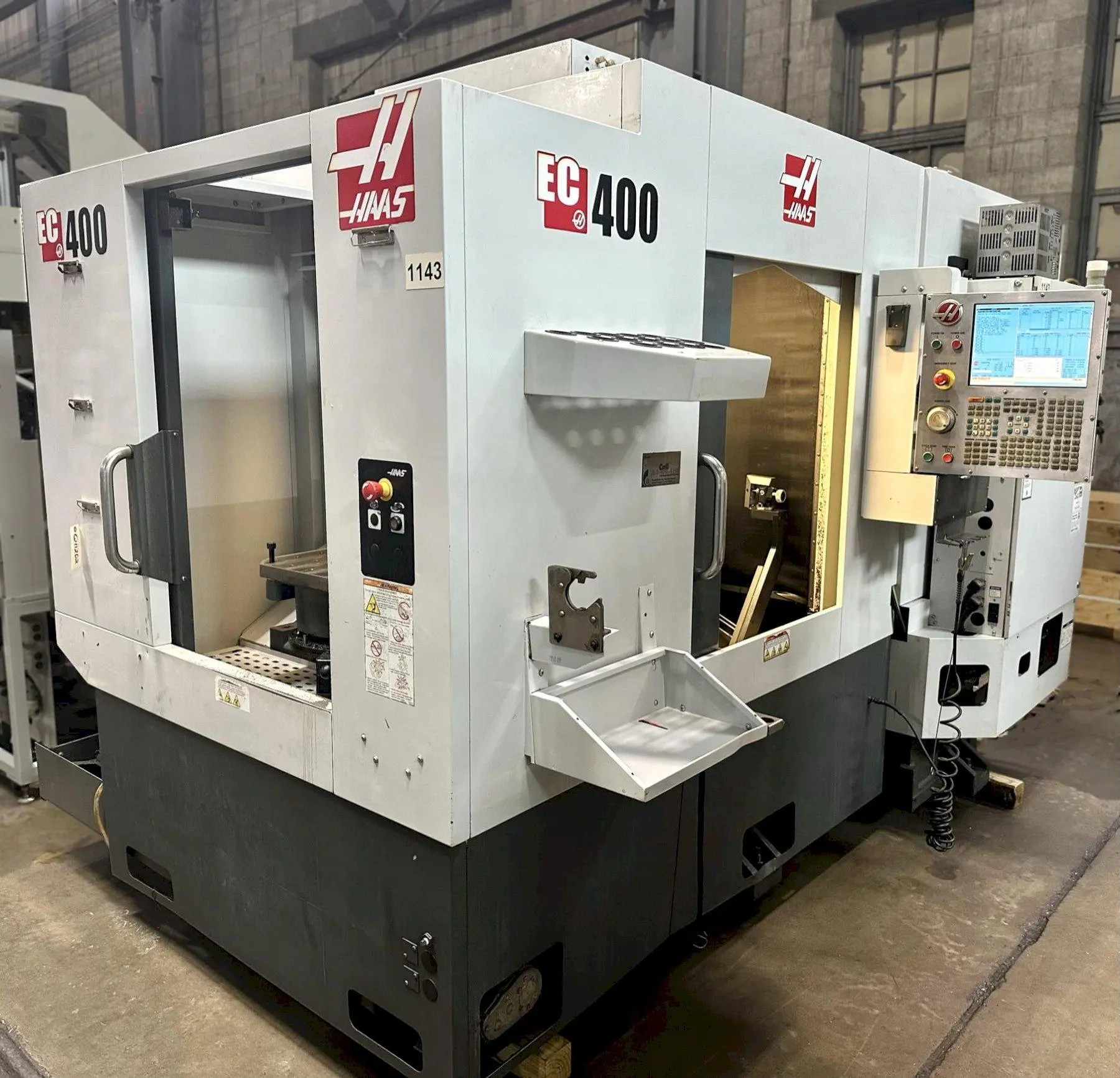

HAAS EC-400 CNC HORIZONTAL MACHINING CENTER, Haas CNC Control, (2) Full Contouring 15.75" x 15.75" Pallets, X=20", Y=20", Z=20", CAT 40 Taper, 8100 RPM Spindle, 24 ATC, WIPS, TSC, Coolant System, New 2011.
| Control | Haas CNC | Haas CNC |
| # Axis | 4 | 4 |
| # Pallets | 2 | 2 |
| Pallet-L | 15.75" | 400.05 mm |
| Pallet-W | 15.75" | 400.05 mm |
| Max Pallet Load Capacity | 1,000 lb | 453.6 kg |
| X-Axis (Longitudinal Table Travel) | 20" | 508 mm |
| Y-Axis (Vertical Travel) | 20" | 508 mm |
| Z-Axis (Spindle Travel) | 20" | 508 mm |
| Max Distance Spindle Nose to Pallet Center | 23.9" | 607.06 mm |
| Min Distance Spindle Nose to Pallet Center | 3.9" | 99.06 mm |
| Feed Rate, All Axes | 500 in/min. | 12.7 m/min. |
| Rapid Traverse Rate, All Axes | 1,000 in/min. | 25.4 m/min. |
| Spindle Power | 20 hp | 14.9 kW |
| Spindle Taper | CAT 40 | CAT 40 |
| Max Spindle Speed | 8,100 RPM | 8,100 RPM |
| Coolant Through Spindle | Yes | Yes |
| Automatic Tool Changer Capacity (ATC) | 24 | 24 |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 140" x 97" x 102" | 140" x 97" x 102" |
| Weight | 22,000 LBS | 22,000 LBS |
Haas CNC Control, (2) 15.75" x 15.75" Full Contouring Pallet w/Pallet-Shuttle, 8100 Max Spindle RPM, Thru the Spindle Coolant, 24 Position Automatic Tool Changer, WIPS-R, Renishaw Probe Receiver, Haas Touch Setter, Control Options (EPFDM, Home, RJH-C, Rtap-3), 80 Gallon Coolant System.
