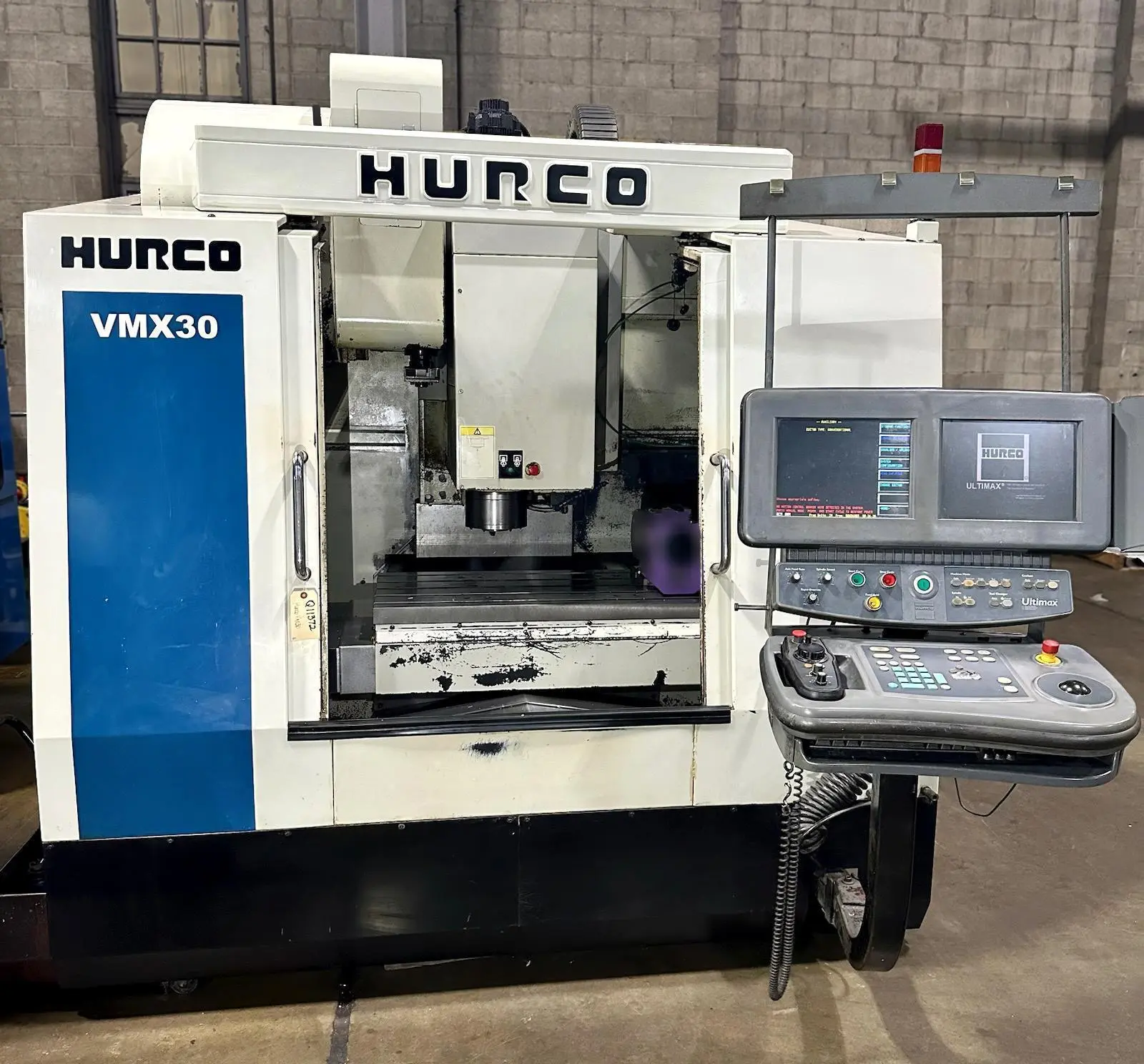

HURCO VMX30 CNC VERTICAL MACHINING CENTER, Ultimax CNC Control, 40" x 20" Table, X=30", Y=20", Z=24", 40 Taper, 10000 Max Spindle RPM, 24 ATC, Coolant System, New 2003.
| CNC Control | Ultimax CNC | Ultimax CNC |
| # Axis | 3 | 3 |
| Table-L | 40" | 1,016 mm |
| Table-W | 20" | 508 mm |
| X-Axis (Longitudinal Travel) | 30" | 762 mm |
| Y-Axis (Cross Travel) | 20" | 508 mm |
| Z-Axis (Vertical Travel) | 24" | 609.6 mm |
| Max Clearance Tabletop to Spindle Nose | 30" | 762 mm |
| Min Clearance Tabletop to Spindle Nose | 6" | 152.4 mm |
| Feed Rates (X, Y, & Z Axis) | 300 in/min. | 7.6 m/min. |
| X-Axis Rapid Traverse Rate | 1,181 in/min. | 30 m/min. |
| Y-Axis Rapid Traverse Rate | 1,181 in/min. | 30 m/min. |
| Z-Axis Rapid Traverse Rate | 787 in/min. | 20 m/min. |
| Spindle Power | 17.7 hp | 13.2 kW |
| Max Spindle Speed | 10,000 RPM | 10,000 RPM |
| Spindle Taper | 40 | 40 |
| Coolant Through Spindle | No | No |
| Automatic Tool Changer Capacity (ATC) | 24 | 24 |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Electrics | 230/3/60 | 230/3/60 |
| Weight | 10,000 LBS | 10,000 LBS |
Ultimax CNC Control, 24-Station Automatic Tool Changer, Metal Way Covers, Chip Auger, Coolant System.
