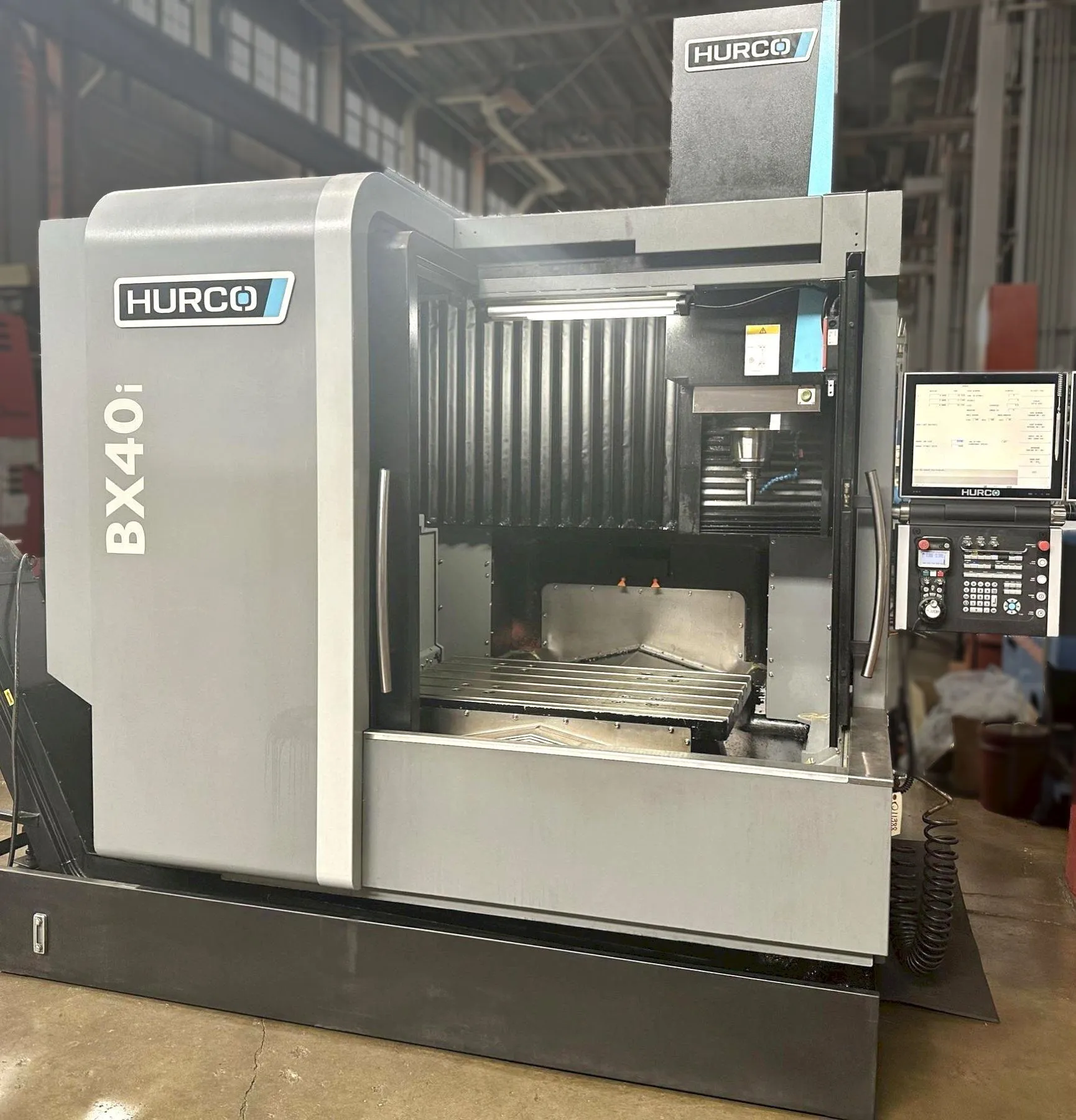

HURCO BX40i HEAVY DUTY DOUBLE COLUMN CNC VERTICAL MACHINING CENTER, WinMax 5 CNC Control, 41" x 27" Table, X=40", Y=27.6", Z=19.7", HSK 63 Taper, 47 HP, 18,000 Max Spindle RPM, 30 ATC, TSC, HPC, Chip Conveyor, New 2019.
| Control | CNC (WinMax 5 CNC Control) | CNC (WinMax 5 CNC Control) |
| # Axis | 3 | 3 |
| Table-L | 41.3" | 1,049 mm |
| Table-W | 27.6" | 701.04 mm |
| Table Load Capacity | 2,204 lb | 999.7 kg |
| T-Slot Length | 6" | 152.4 mm |
| T-Slot Width | 0.7" | 17.78 mm |
| X-Axis (Longitudinal Travel) | 40.2" | 1,021.1 mm |
| Y-Axis (Cross Travel) | 27.6" | 701.04 mm |
| Z-Axis (Vertical Travel) | 19.7" | 500.38 mm |
| Max Clearance Tabletop to Spindle Nose | 26.7" | 678.18 mm |
| Min Clearance Tabletop to Spindle Nose | 7" | 177.8 mm |
| Rapid Traverse Rate, All Axes | 1,417 in/min. | 35,991.8 mm/min. |
| Spindle Power | 47 hp | 35 kW |
| Max Spindle Speed | 18,000 RPM | 18,000 RPM |
| Spindle Taper | HSK 63 | HSK 63 |
| Torque, Up To | 88 FT-LBS @ 2,800 RPM | 391.4 N |
| Coolant Thru Spindle | Yes | Yes |
| Automatic Tool Changer Capacity (ATC) | 30 | 30 |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Machine Hours | 1130 | 1130 |
| Dimensions | 188" x 138" x 124" | 188" x 138" x 124" |
| Weight | 21,000 LBS | 21,000 LBS |
WinMax 5 Double Screen CNC Control, 18,000 RPM High Speed Spindle, Advanced Verification Graphic, DXF, NC Productivity Package, Helical Ramp, 3D Mold, Linear Glass Scales Swept Surface, HSK 63 Spindle, 30 Station Automatic Tool Changer, 300 PSI Coolant Thru Spindle, Chip Conveyor, Coolant System.
*1130 Spindle Hours- Excellent Condition.
