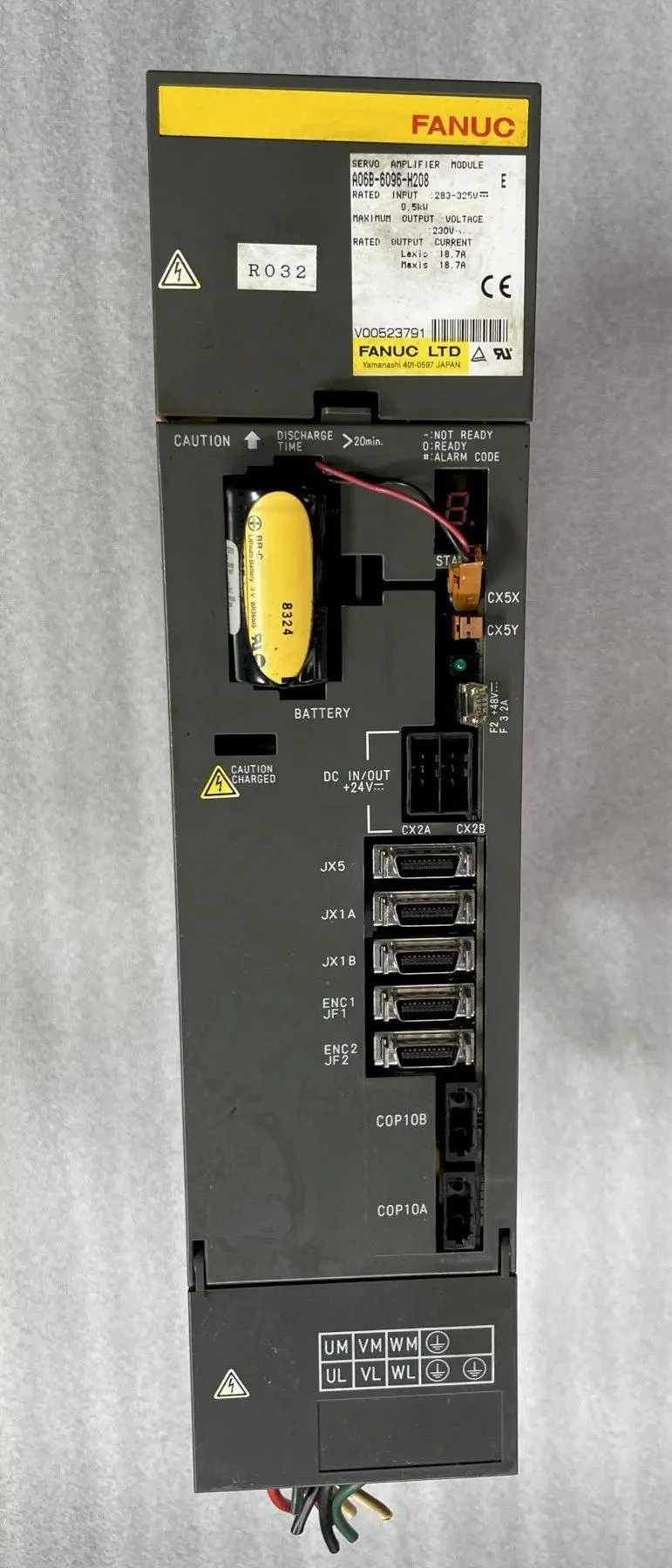

FANUC A06B-6096-H208 SERVO AMPLIFIER MODULE
| Mfr Part Number | A06B-6096-H208 | A06B-6096-H208 |
| Product Type | Servo Amplifier Module | Servo Amplifier Module |
| Function | Axis Control | Axis Control |
| # Axis | 2 | 2 |
| Rated Input | 283 - 325 VDC (9.5 kW) | 9.5 kW |
| Input Voltage | 325 V | 325 V |
| Output Voltage | 230 V | 230 V |
| L-Axis Rated Output Current | 18.7 A | 18.7 A |
| M-Axis Rated Output Current | 18.7 A | 18.7 A |
| Rated Output Current | 48 A | 48 A |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 17" x 14" x 4.5" | 17" x 14" x 4.5" |
| Weight | 16 LBS | 16 LBS |
Servo Amplifier SVM2-80/80 FSSB Interface Alpha
