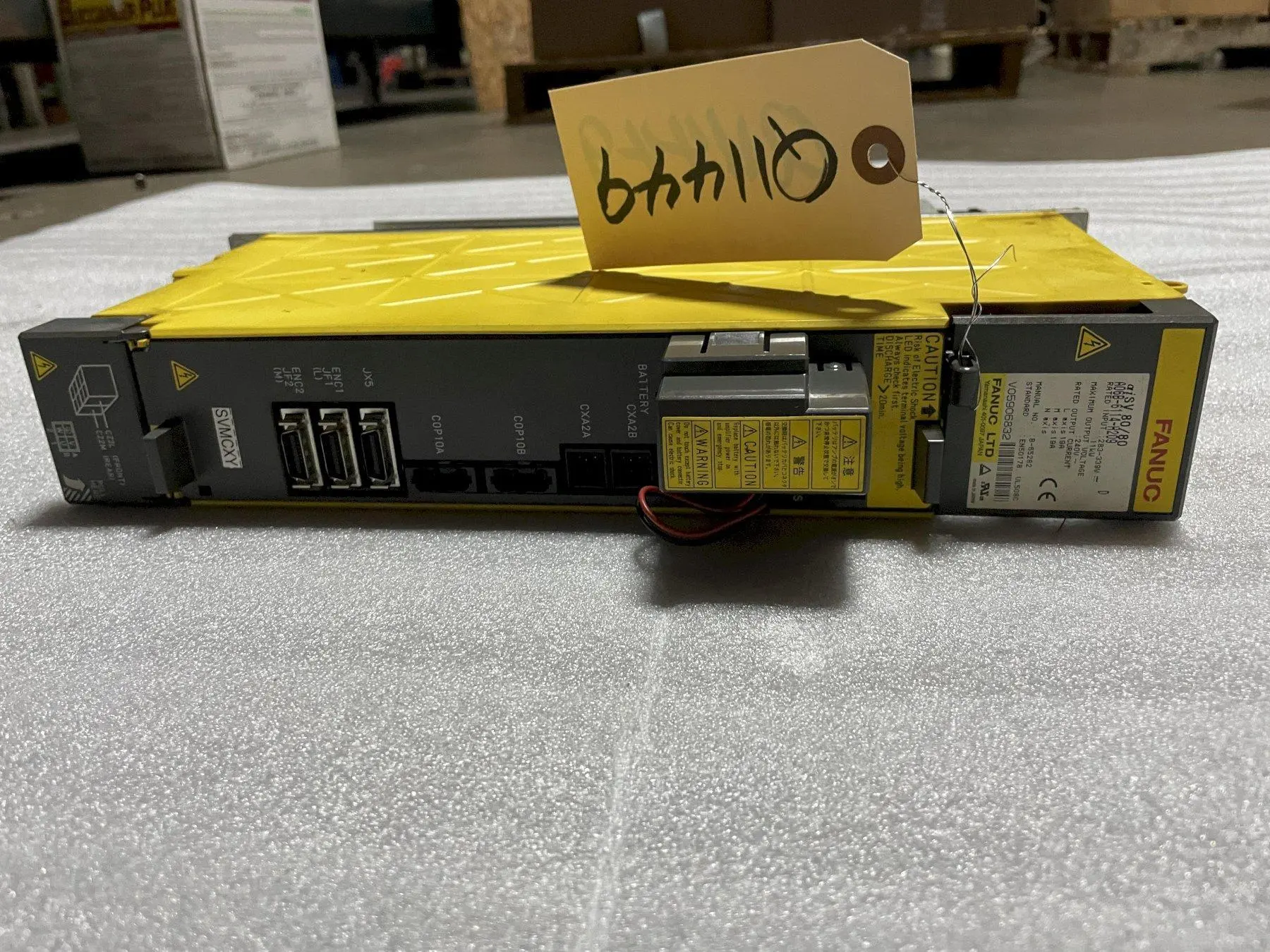

FANUC A06B-6114-H209 SERVO AMPLIFIER MODULE, SVM2-80/80i ALPHAi
| Mfr Part Number | A06B-6114-H209 | A06B-6114-H209 |
| Product Type | Servo Amplifier Module | Servo Amplifier Module |
| Function | SVM2-80/80i Alpha i | SVM2-80/80i Alpha i |
| # Axis | 2 | 2 |
| Rated Input | 283 - 339 VDC (11 kW) | 11 kW |
| Output Voltage | 240 VAC | 240 V |
| L-Axis Rated Output Current | 19 A | 19 A |
| M-Axis Rated Output Current | 19 A | 19 A |
| Manual No | B-65282 | B-65282 |
| Standards | EN50178, UL508C | EN50178, UL508C |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 14" x 5" x 17" | 14" x 5" x 17" |
| Weight | 12 lbs | 12 lbs |
