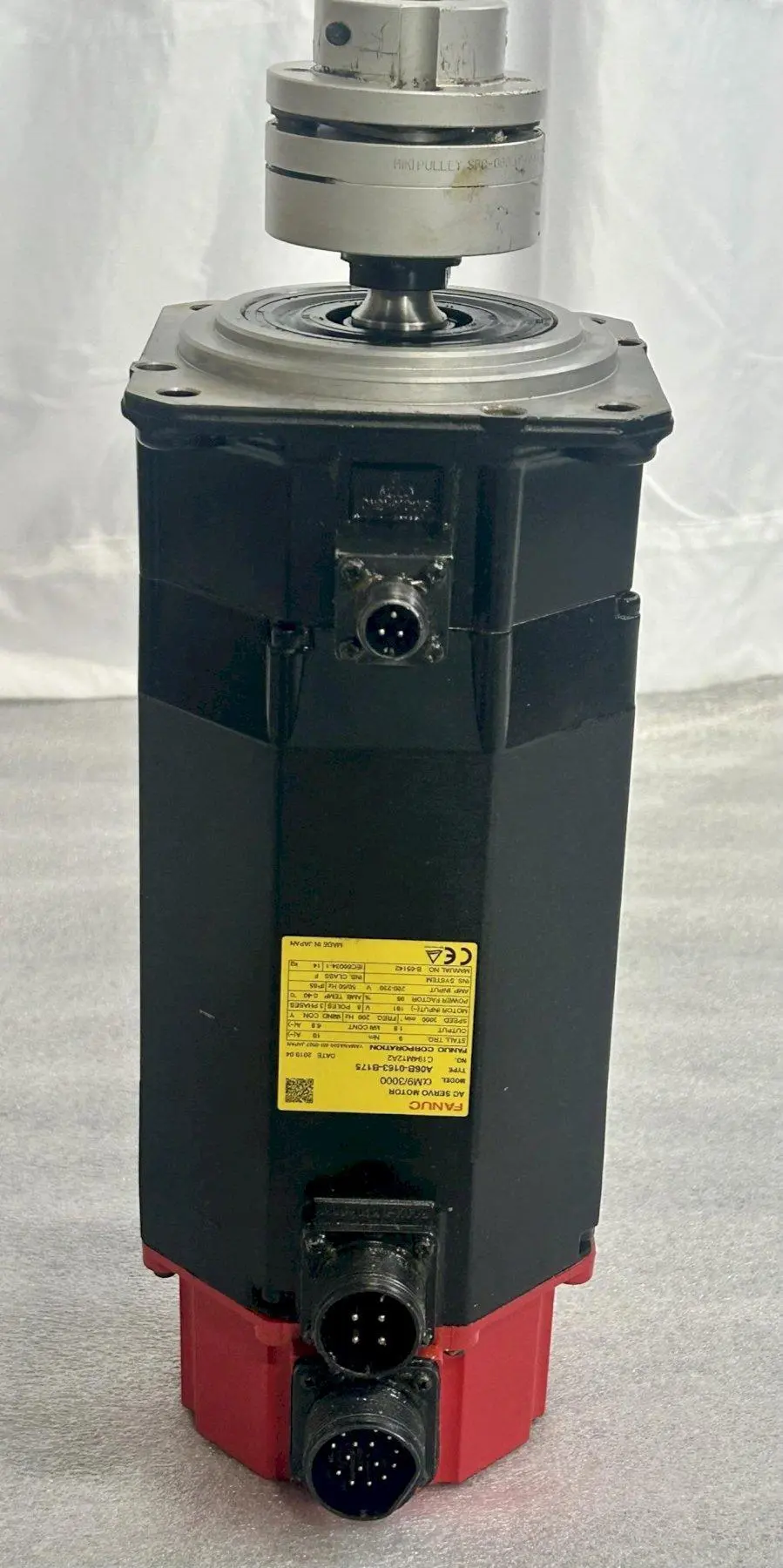

FANUC AC SERVO MOTOR, Type A06B-0163-B175, Model Alpha-M9/3000, 161 V, 3000 RPM.
| Current Type | AC | AC |
| Torque (Stall) | 9 N | 2 lbf |
| Amp (Stall) | 10 A | 10 A |
| Voltage | 161 V | 161 V |
| # Poles | 8 | 8 |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Rating | Continuous | Continuous |
| Power Factor | 99% | 99% |
| Efficiency | 99 | 99 |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 3.8 hp | 2.8 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Manual No | B-65142 | B-65142 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 18" x 8" x 10" | 18" x 8" x 10" |
| Weight | 36 lbs | 36 lbs |
