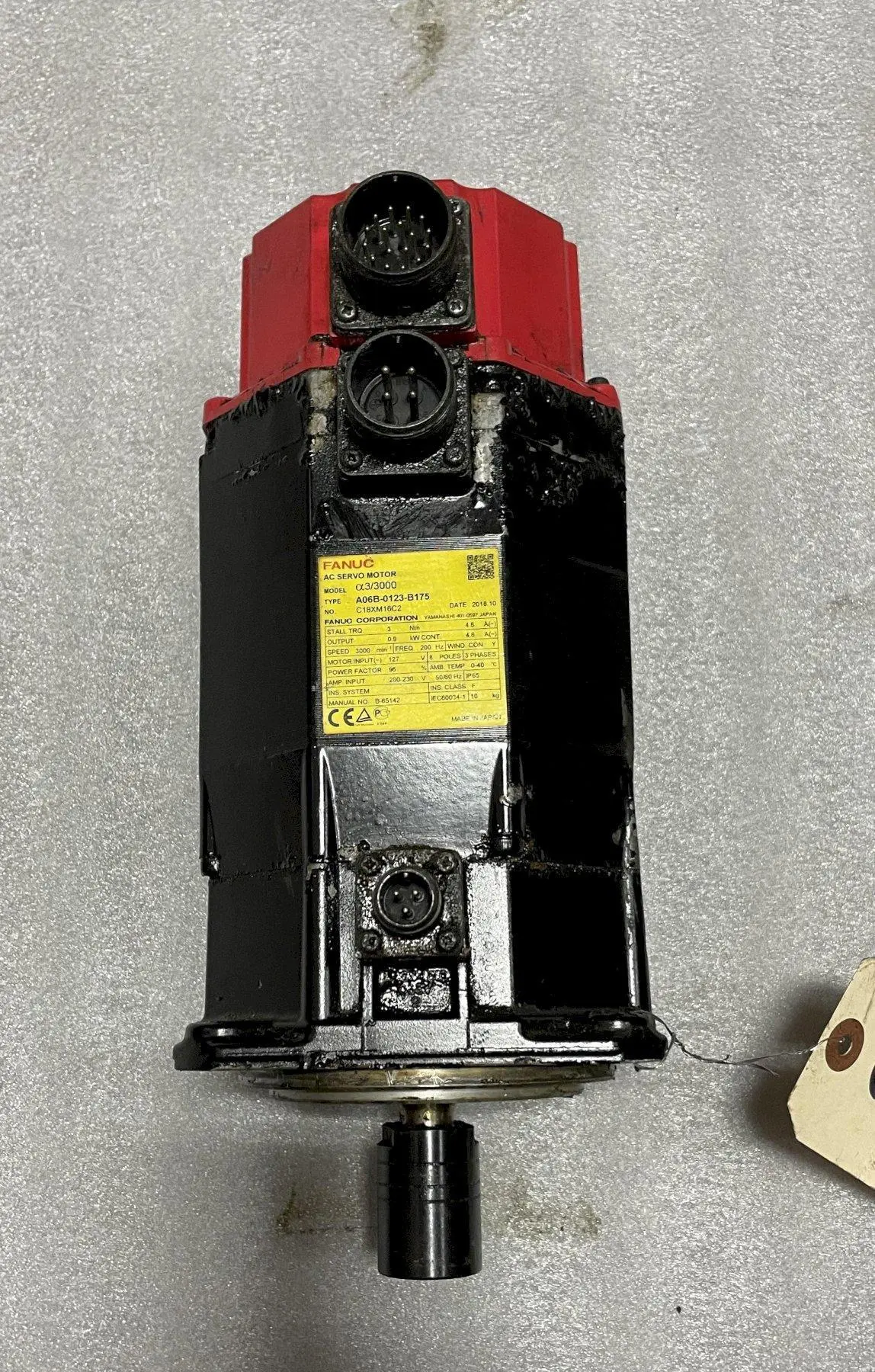

USED 2018 Fanuc A06B-0123-B175 A3/3000
USD $575.00
Overview
Description
FANUC AC SERVO MOTOR, Type A06B-0123-B175, Model Alpha 3/3000, 4.6A, 127 V, 3000 RPM.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 3 N | 0.7 lbf |
| Amp (Stall) | 4.6 A | 4.6 A |
| Voltage | 127 V | 127 V |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Power Rating | Continuous | Continuous |
| Power Factor | 96% | 96% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 0.9 kW | 1.2 hp |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Encoder | A64 | A64 |
| Manual No | B-65142 | B-65142 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 16" x 9" x 9" | 16" x 9" x 9" |
| Weight | 29 LBS | 29 LBS |
Equipped With
Tapered Shaft
Brake
