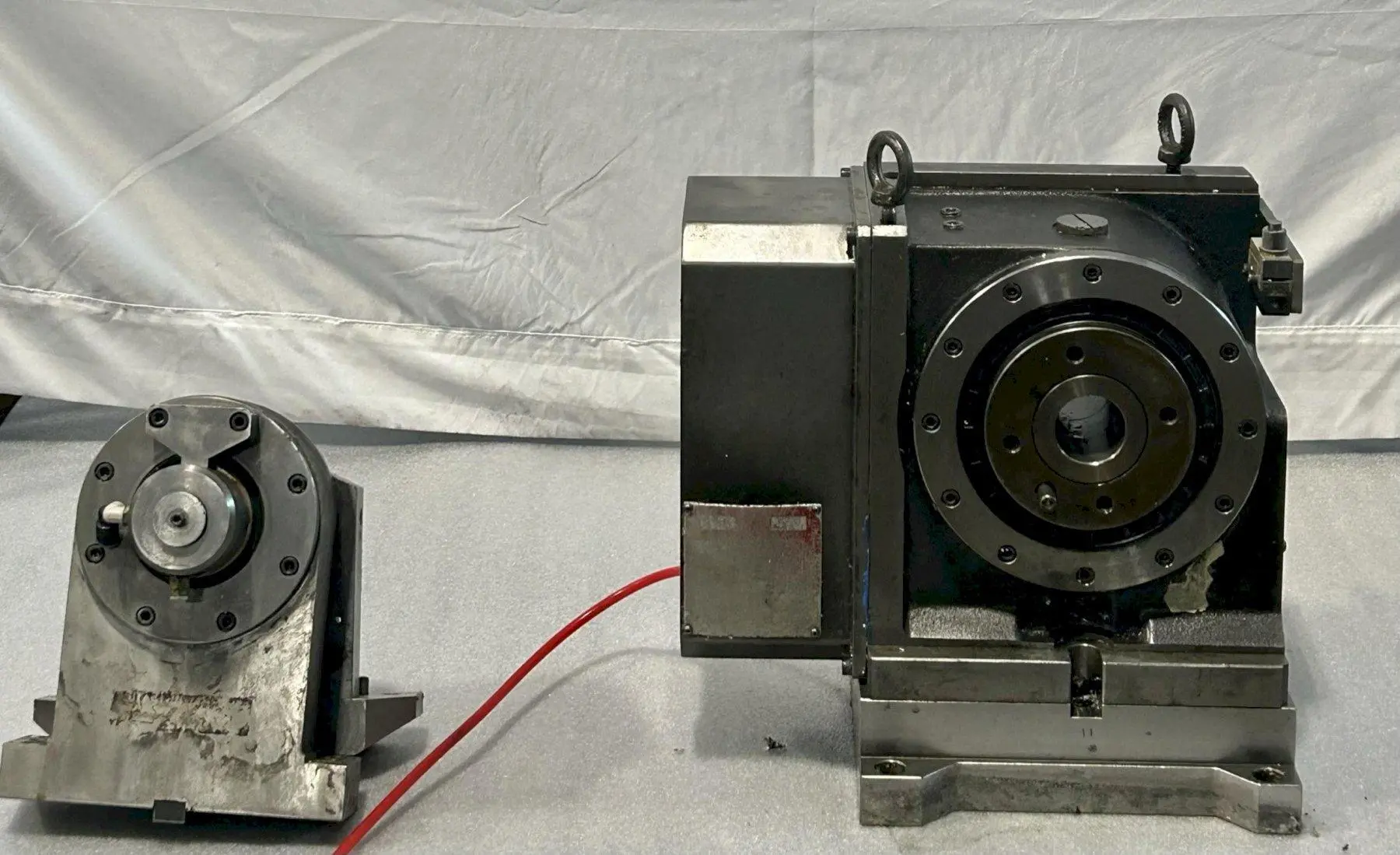

TSUDAKOMA RN-200L CNC ROTARY TABLE, Tsudakoma TPC-JR-E3 Control, Face Plate with 2-1/2" Bolt Pattern, 6-1/2" Height, 2-1/2" Riser Plate, T-Slot Mounting, AC Servo Motor SGMP-08A3TF12, Removed from Okuma Howa MSN-P500 Vert Machining Center.
| Platter Diameter | 8" OD | 8 |
| Max Load Capacity, Horizontal | 552 lb | 250.4 kg |
| Max Load Capacity, Vertical | 220 lb | 99.8 kg |
| Table Positions | 360000 | 360000 |
| Drive Mechanism | Electric | Electric |
| Dimensions | 45" x 30" x 15" | 45" x 30" x 15" |
| Weight | 290 lbs | 290 lbs |
Tsudakoma Rotary Indexer Controller TPC-JR-E3
Yaskawa AC Servo Motor SGMP-08A3TF12
Face Plate with 2.5" Bolt Pattern, 6.5" Height, 2.5" Riser Plate, T-Slot Mounting.
