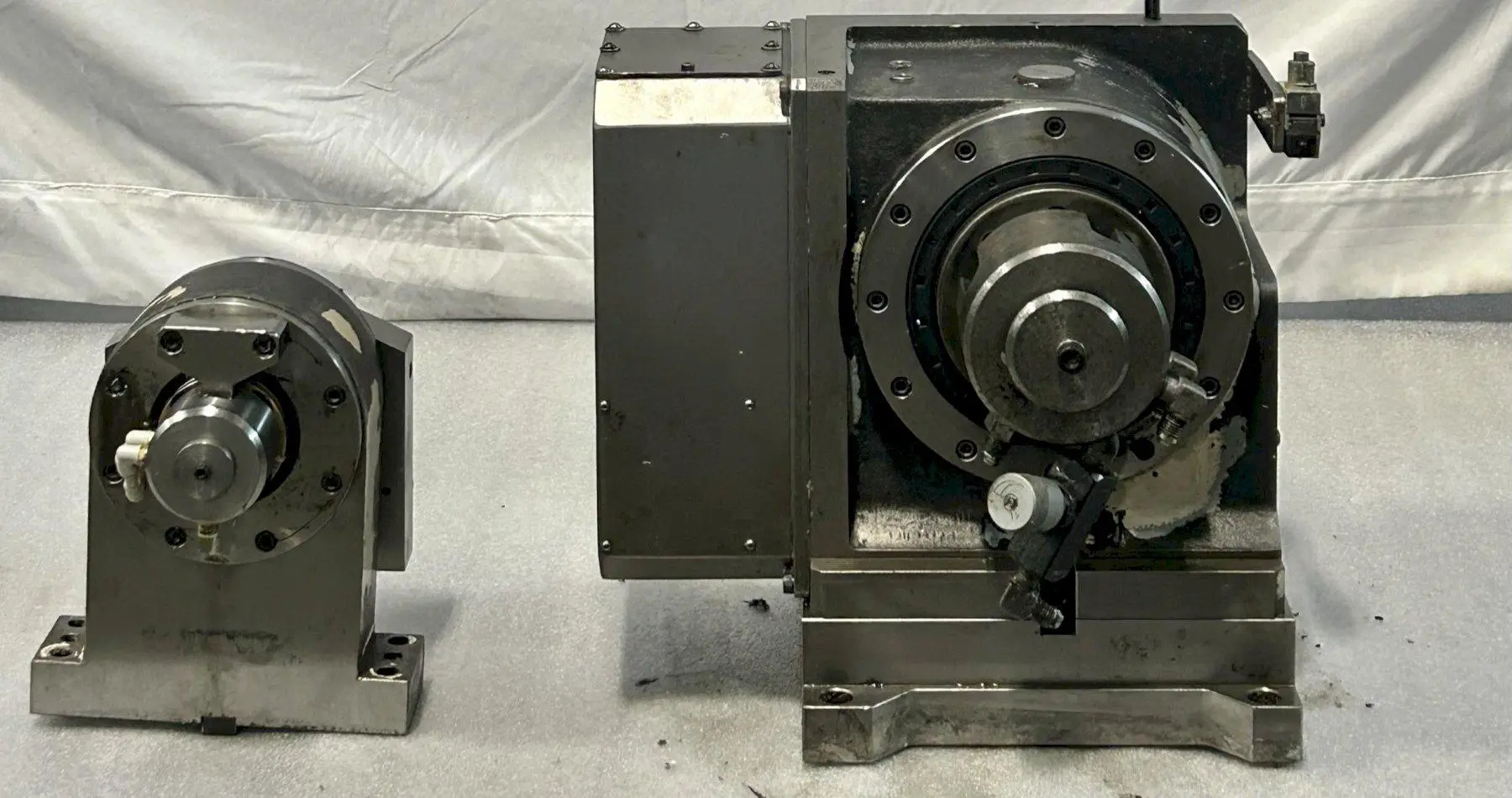

USED Tsudakoma RT-200A

USD $4,950.00
4 available
Overview
Manufacturer:
TSUDAKOMA
Model:
RT-200A
Stock #:
Q11510
Description

TSUDAKOMA CNC ROTARY TABLE AND CONTROLLER, Model RT-200, TPC-JR-G3 Control, 2-1/2" Bolt Pattern Face Plate, 6-1/2" Height, + 2-1/2" Riser Plate. T-Slotted Table Mount, Riser plate has 7-1/2" x 8-1/2" Bolt Holes Pattern, Removed from Okuma Howa MSN-P500 Vert Machining Center.

Specifications
Platter Diameter8" OD8
Max Load Capacity, Horizontal552 lb250.4 kg
Max Load Capacity, Vertical220 lb99.8 kg
Drive MechanismElectricElectric
Dimensions45" x 30" x 15"45" x 30" x 15"
Weight290 lbs290 lbs
Equipped With

Tsudakoma Rotary Indexer Controller, Model TPC-JR-G3
Yaskawa AC Servo Motor  SGMPH-08A1A-TF11

2.5" Bolt Pattern Face Plate, 6.5" Height, + 2.5" Riser Plate. T-Slotted Table Mount, Riser Plate has 7.5" x 8.5" Bolt Holes Pattern.
