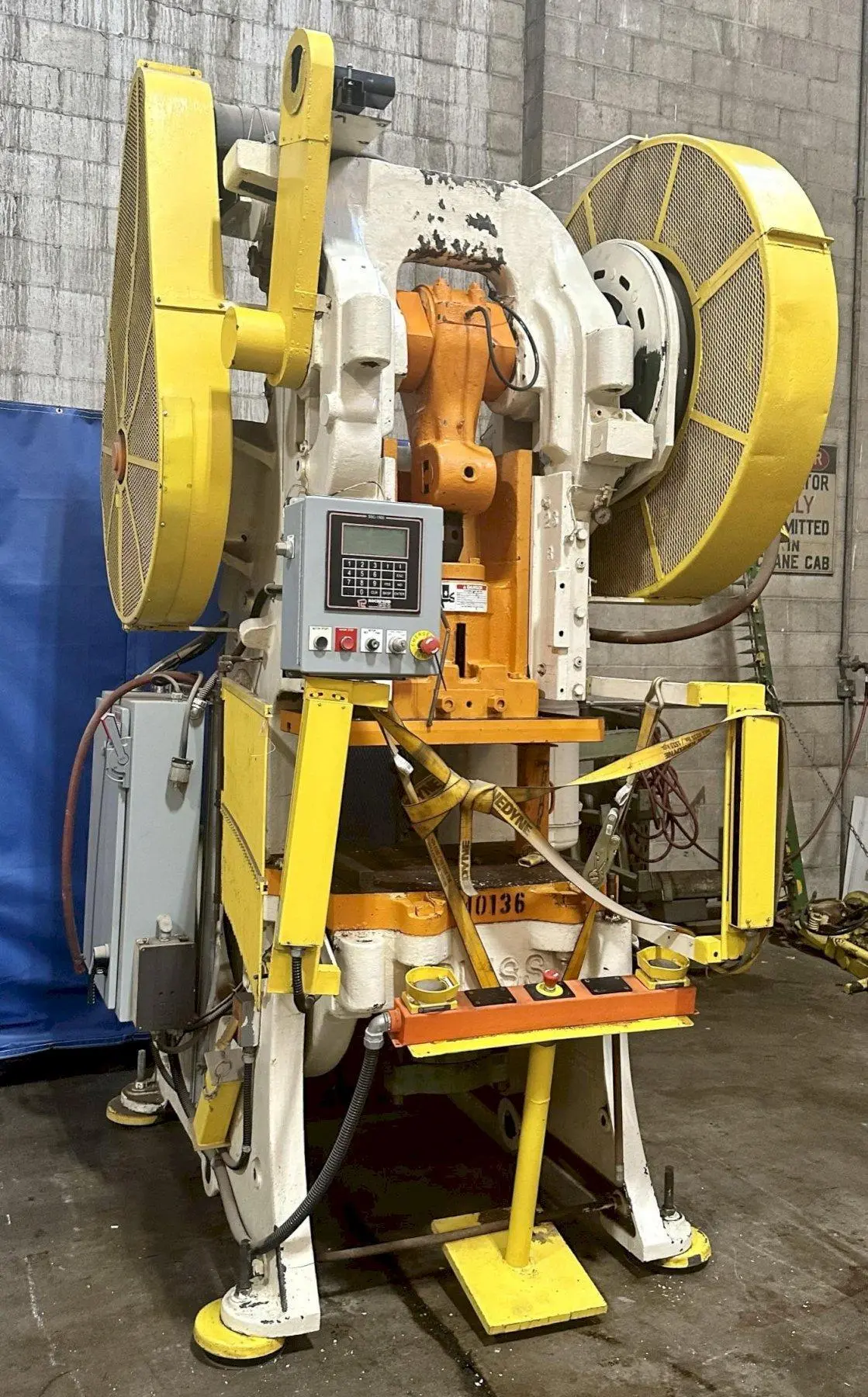

75 TON BLISS #23 SINGLE CRANK BACKGEARED PRESS, 16" x 10" Ram, 24" x 32" Bolster/Bed, 4" Stroke, 14" Shut Height, 45-90 SPM, New 1960
| Control | CNC (2011 Rockford PLC Control Retrofit) | CNC (2011 Rockford PLC Control Retrofit) |
| Tonnage Capacity | 75 T | 68.039 t |
| Stroke Length | 4" | 101.6 mm |
| Shut Height to Bed, SDAU | 14.25" | 361.95 mm |
| Ram Adjustment | 3" | 76.2 mm |
| Ram Area (L-R) | 16" | 406.4 mm |
| Ram Area (F-B) | 10" | 254 mm |
| Bolster/Bed Area (L-R) | 24" | 609.6 mm |
| Bolster/Bed Area (F-B) | 32" | 812.8 mm |
| Strokes Per Minute | 45 - 90 strokes/min. | 90 strokes/min. |
| Type (BG, Double Action, FW) | Backgeared | Backgeared |
| Crank (Single/Double) | Single | Single |
| Air Clutch (Yes/No) | Yes | Yes |
| Motor Power | 5 hp | 3.7 kW |
| Electrics | 240/480/3/60 | 240/480/3/60 |
| Dimensions | 65" x 84" x 112" | 65" x 84" x 112" |
| Weight | 15,300 LBS | 15,300 LBS |
Bolster Plate: 3-1/2" H, T-Slotted
Distance Between Uprights: 14-3/4"
Floor to Bed: 35-1/4"
Strokes Per Minute: 45 - 90 SPM
2011 Rockford PLC Control Retrofit, Backgeared ,Air Clutch and Brake, Dual Palm Buttons, Light Curtains.
