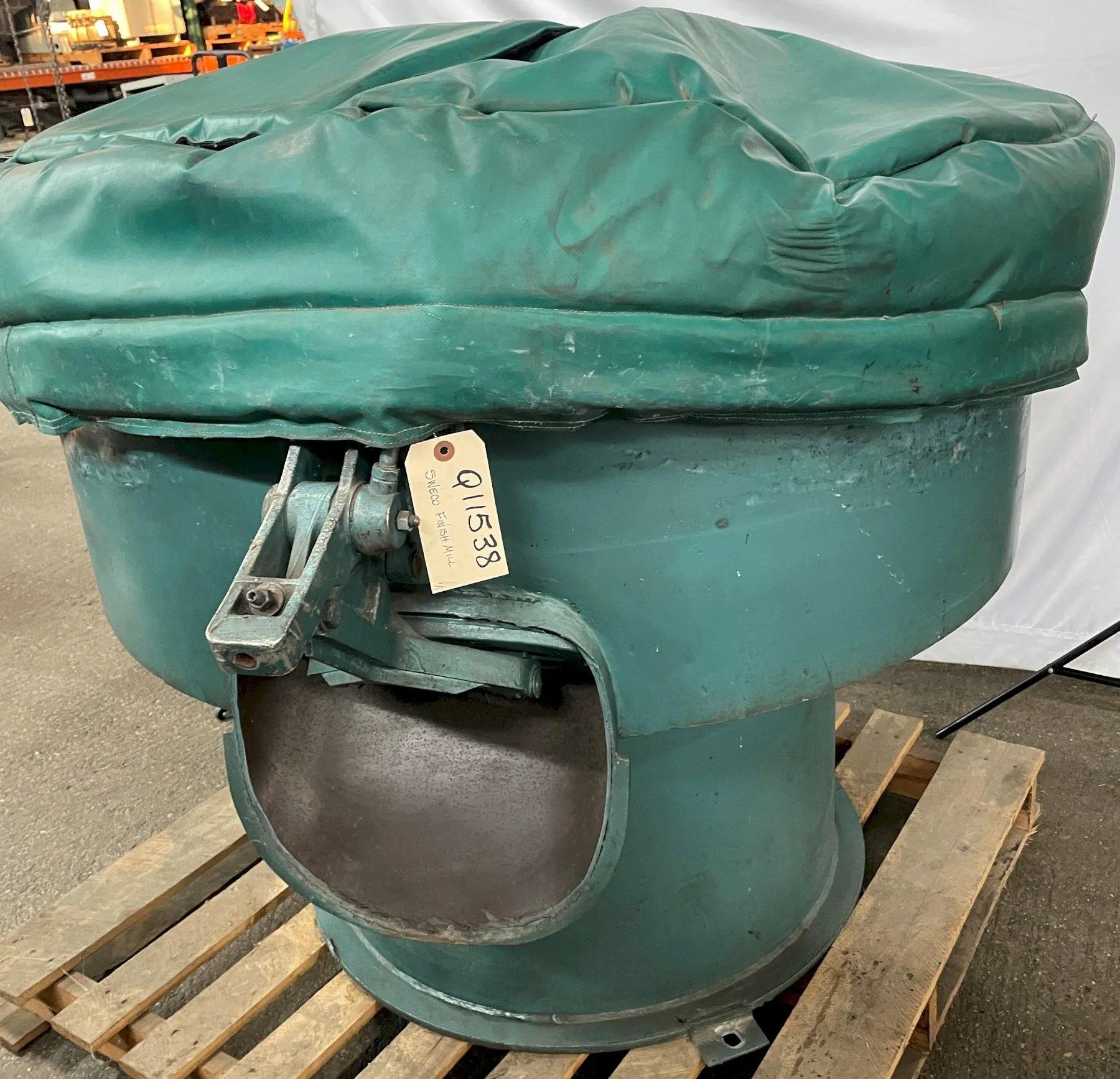

USED 1971 Sweco VIBRO-ENERGY FM-10-7

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Finishing Machines

10 CU FT SWECO VIBRO-ENERGY FINISHING MILL, Model FM-10-7, 24" Max Straight Part Length, 2.5 HP, New 1971.

Specs
Total Capacity
10 ft³
10 ft³
Max Gross Load Capacity
3,000 lb
1,360.8 kg
Overall Diameter
44.75"
1,136.6 mm
Processing Channel Width
13"
330.2 mm
Processing Channel Depth
13"
330.2 mm
Max Straight Part Length
24"
609.6 mm
Motor Power
2.5 hp
1.9 kW
Rotary Speed
1,200 RPM
1,200 RPM
Motor Phase
3
3
Motor Voltage
460 V
460 V
Motor Frequency
60 Hz
60 Hz
Discharge Door Diameter
12" x 6"
304.8 mm
Drain Termination OD Spout
1.25"
31.75 mm
Electrics
460/3/60
460/3/60
Dimensions
51" diameter/48" height
51" diameter/48" height
Weight
1300 lb
1300 lb
Equipped With

Sweco Motion Generator Plus 2.5 HP Motor.

From the manufacturer:
Time-tested technology provides three-dimensional Vibro-Energy motion for all SWECO Finishing Mills. This motion subjects parts and media to a consistent high-frequency tilting movement as they travel in a helical/orbital path around the chamber. The resulting compressive scrubbing action cleans and also removes burrs, round sharp corners, and smooths out surface impressions. Because vertical/horizontal amplitudes and the rate of vibration are completely adjustable, your finishing requirements can be handled quickly and efficiently.
