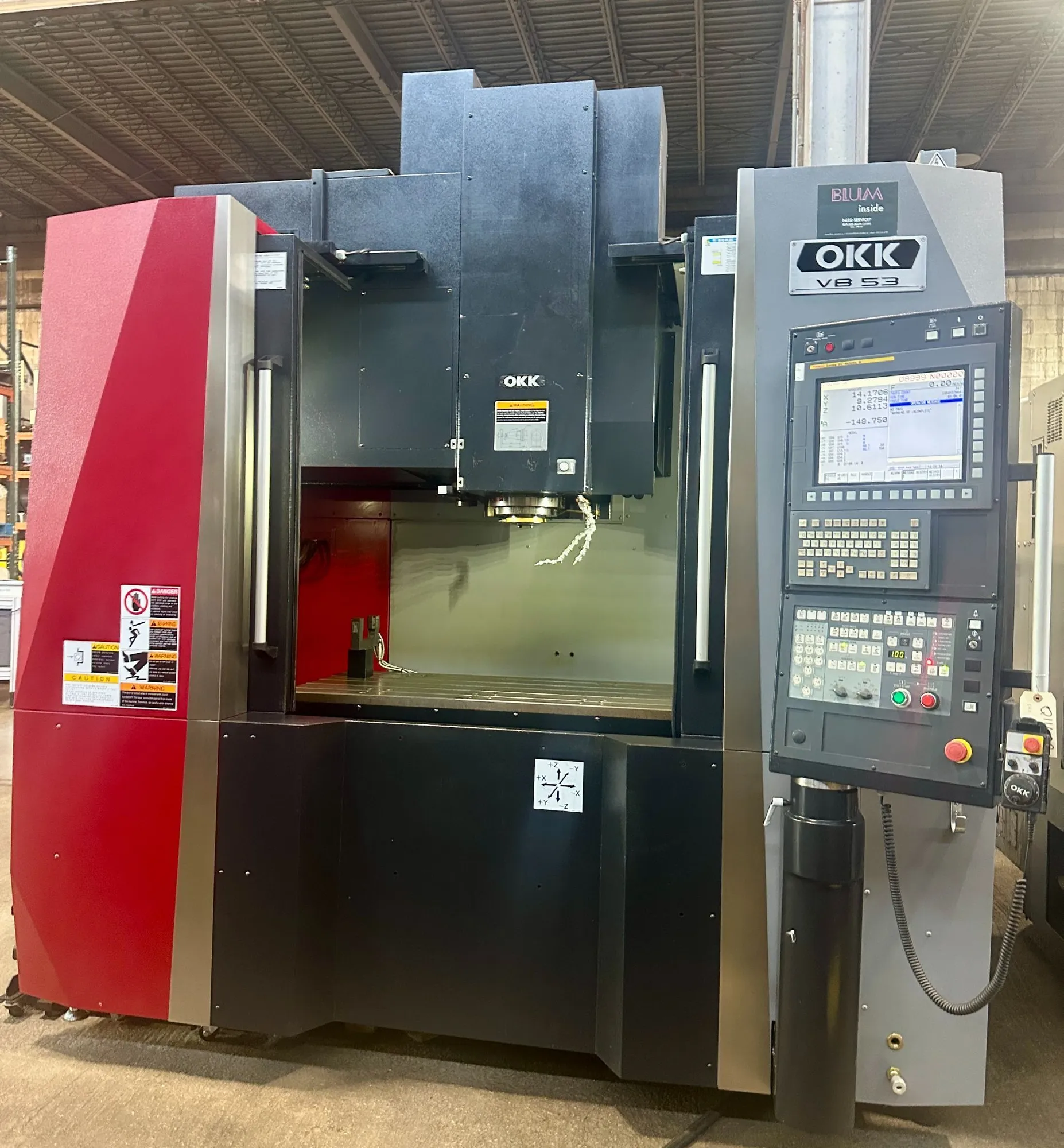

OKK VB53a CNC VERTICAL MACHINING CENTER, Fanuc 31i-B CNC Control, Machine Mounted Micro Compact Laser Tool Management System, Part Probe, 49" x 23" Table, X=41", Y=20", Z=20", Arranged for 4th Axis Rotary Table, CAT 40 BIG+ Taper, 20 HP, 20000 Max Spindle RPM, 30 ATC, TSC, HPC, Chip Conveyor, Low Hours, Die Mold Model, New 2016.
| CNC Control | Fanuc 31i-B CNC | Fanuc 31i-B CNC |
| # Axis | 3 | 3 |

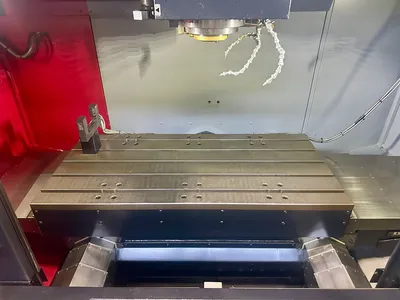

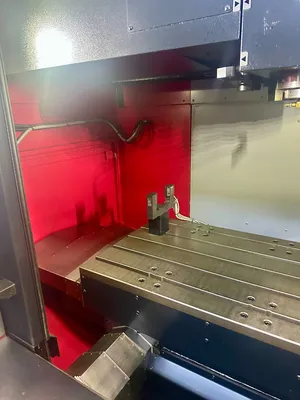

| Table-L | 49.61" | 1,260.1 mm |
| Table-W | 23.62" | 599.95 mm |
| Max Table Load Capacity | 2,646 lb | 1,200.2 kg |
| X-Axis (Longitudinal Travel) | 41.34" | 1,050 mm |
| Y-Axis (Cross Travel) | 20.87" | 530.1 mm |
| Z-Axis (Vertical Travel) | 20.08" | 510.03 mm |
| Max Clearance Tabletop to Spindle Nose | 25.98" | 659.89 mm |
| Min Clearance Tabletop to Spindle Nose | 5.91" | 150.11 mm |
| Feed Rates (X, Y, & Z Axis) | 0.04 - 787 in/min | 20 m/min. |
| Rapid Traverse Rate (X, Y, & Z Axis) | 787 in/min. | 20 m/min. |
| Spindle Power | 20 hp | 14.9 kW |
| Spindle Speed Range | 100 - 20,000 RPM | 20,000 RPM |
| Spindle Taper | CAT 40 BIG Plus | CAT 40 BIG Plus |
| Coolant Through Spindle | Yes | Yes |
| Automatic Tool Changer Capacity (ATC) | 30 | 30 |

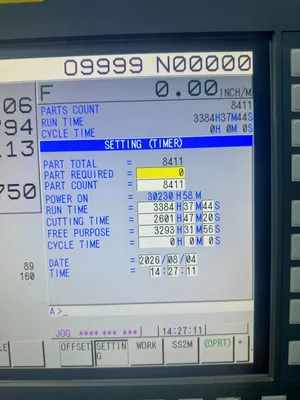

| Machine Hours | 4579 | 4579 |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 99" x 99" x 115" | 99" x 99" x 115" |
| Weight | 15,000 LBS | 15,000 LBS |

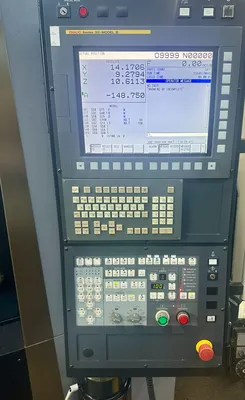

Fanuc 31i-B CNC Control with 512kb Memory, Hyper HQ Mode B and Custom Macro 600, Machine Mounted Micro Compact Non Contact Laser Tool Management System, Part Probe, 20000 Spindle RPM, 30-Station Automatic Tool Changer, CAT 40 Big Plus, Blum Laser for Part Setting, Over-Sized Roller Guide Ways, Fine Pitch Ball Screws, Linear Scale Feedback XYZ, Through Spindle Coolant, ChipBlaster High Pressure Coolant, Spindle Chiller, Coolant System.
FEATURES:
Designed for Tool & Die, its surface finishing capability, fewer vibration stripes by accel and decel, and less quadrant projections features a number of technological innovations. Fine Pitch ball screw reduces the maximum rapid speed but increases the overall precision of the entire system along with a rigid machine base. The VB53 employs an external, isolated oil cooler, which removes a common source of vibration from the machine, resulting in high die quality. Countermeasures for thermal displacement are designed to provide precision capability. The coolant shelter prevents the casting from being exposed to either cutting chips or coolant. Additionally, standard equipment like the 0.05-micron scale feedback linear scale enhances the positioning accuracy through all possible applications.
