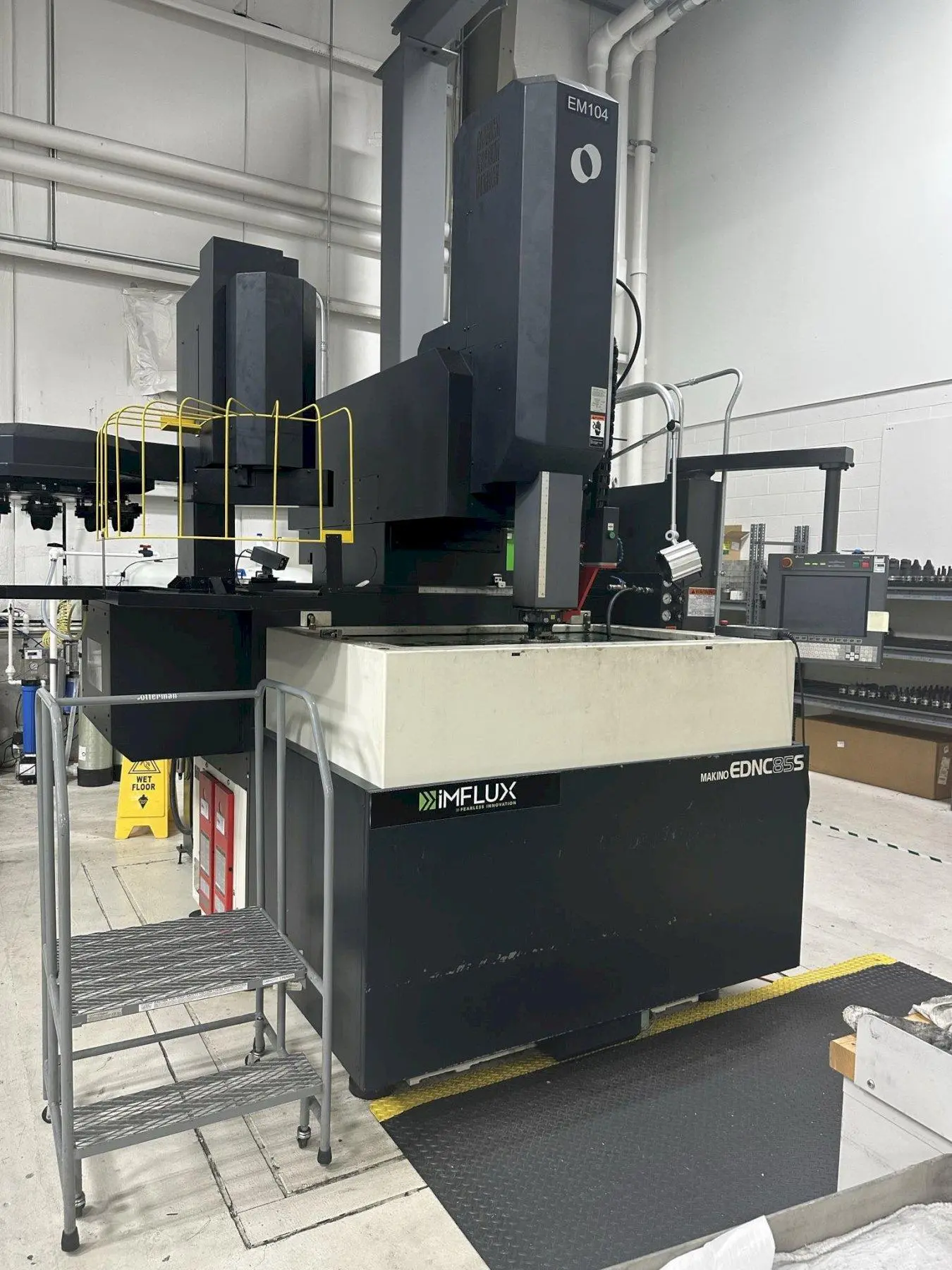

MAKINO EDNC85S SINKER EDM, Makino MGH6 CNC Control, 43.3" x 27.6" Table, X=31.5", Y=19.7", Z=15.7", Full C-Axis 10 RPM, 3000 kg Max Workpiece Weight, 55.1" x 35.4" x 19.7" Tank Size, 16 Station Tool Changer, New 2015.
| Control | CNC (Makino CNC Control) | CNC (Makino CNC Control) |
| Control | Makino MGH6 CNC | Makino MGH6 CNC |
| Internal Work Tank Width | 55.1" | 1,399.5 mm |
| Internal Work Tank Depth | 35.4" | 899.16 mm |
| Internal Work Tank Height | 19.7" | 500.38 mm |
| Table-L | 43.3" | 1,099.8 mm |
| Table-W | 27.6" | 701.04 mm |
| Max Workpiece Weight | 6,613.9 lb | 3,000 kg |
| Dielectric Fluid Capacity | 317 gal | 1,200 L |
| Dielectric Tank Capacity | 185 gal | 700.3 L |
| X-Axis (Longitudinal Travel) | 31.5" | 800.1 mm |
| Y-Axis (Cross Travel) | 19.7" | 500.38 mm |
| Z-Axis (Ram Travel) | 15.7" | 398.78 mm |
| C-Axis (Head Rotation) | 360° Full Contouring | 360° |
| Max Electrode Weight | 661.4 lb | 300 kg |
| Dielectric Fluid Level Adjustment Range (From Top of Table) | 17.7" | 449.58 mm |
| Dimensions | 120" x 144" x 144" | 120" x 144" x 144" |
| Weight | 15,000 LBS | 15,000 LBS |
Makino MGH6 CNC Control, Drop Tank Design, C-Axis/10 RPM, 16 Station Head Changer, (2) Fluid Chillers, Transformer, Extra Filters Included, Brand New Dielectric Fluid Pump.
