Used

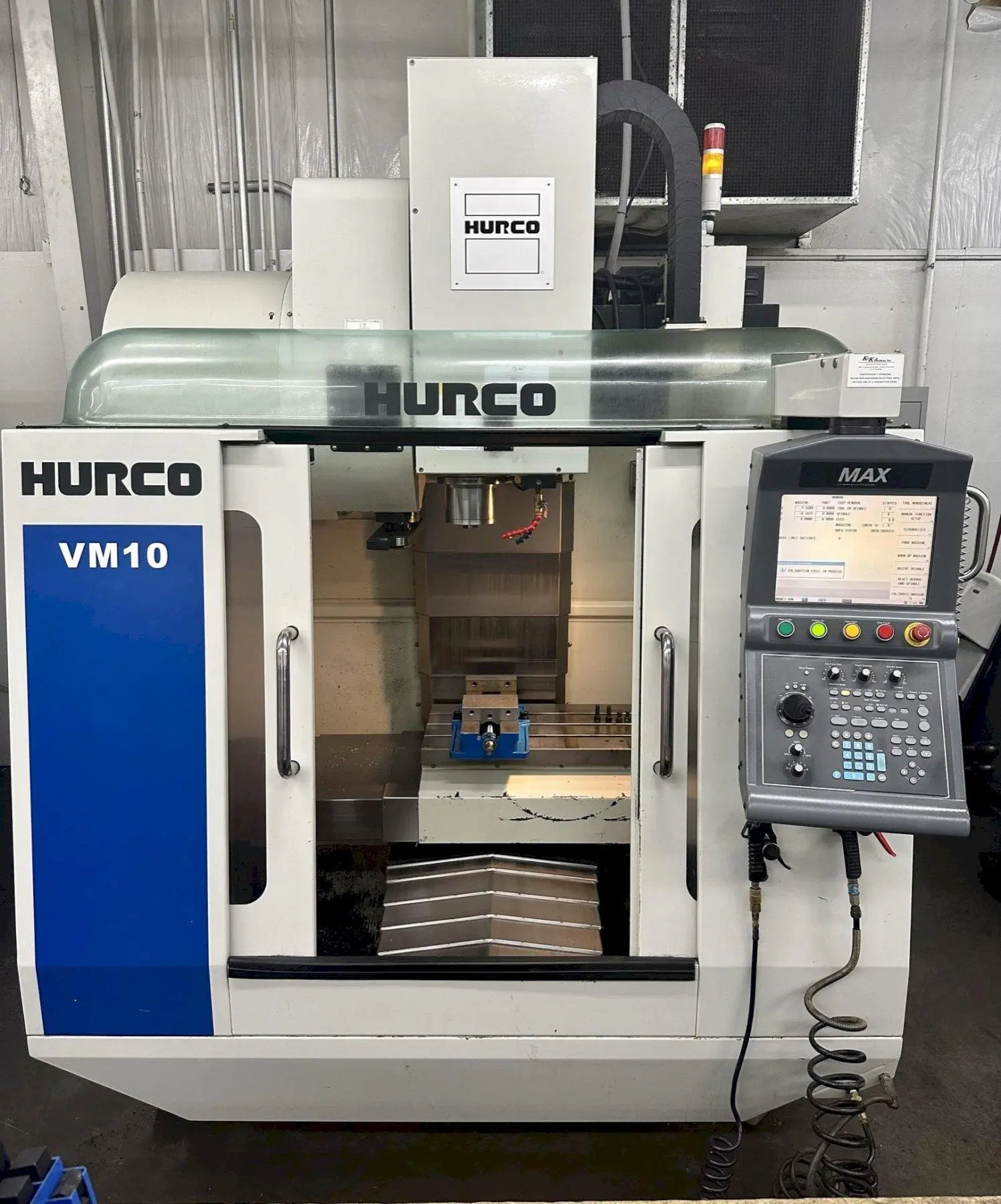

USED 2011 Hurco VM10

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Machining Centers

HURCO VM10 CNC VERTICAL MACHINING CENTER, Hurco WinMax CNC Control, 30" x 14" Table, X=26", Y=16", Z=20", CAT 40 Taper, 15 HP, 10000 Max Spindle RPM, 20 ATC, Coolant System, New 2011.
Frame #H-VIE0472

Specs
CNC Control
Hurco WinMax CNC
Hurco WinMax CNC
# Axis
3
3
Table-L
30"
762 mm
Table-W
14"
355.6 mm
Max Table Load Capacity
750 lb
340.2 kg
X-Axis (Longitudinal Travel)
26"
660.4 mm
Y-Axis (Cross Travel)
16"
406.4 mm
Z-Axis (Vertical Travel)
20"
508 mm
Rapid Traverse Rate (X, Y, & Z Axis)
945 in/min.
24 m/min.
Spindle Power
15 hp
11.2 kW
Max Spindle Speed
10,000 RPM
10,000 RPM
Spindle Taper
CAT 40
CAT 40
Torque, Up To
54 FT-LBS @ 1,450 RPM
240.2 N
Automatic Tool Changer Capacity (ATC)
20
20
Automatic Tool Changer Style
Side-Mount Swing-Arm
Side-Mount Swing-Arm
Electrics
220/3/60
220/3/60
Dimensions
95" x 118" x 100"
95" x 118" x 100"
Weight
6,400 LBS
6,400 LBS
Equipped With

Hurco WinMax CNC Control, 10000 RPM Spindle, 20 Station Automatic Tool Changer, Automatic Central Lubrication System, Coolant System.
