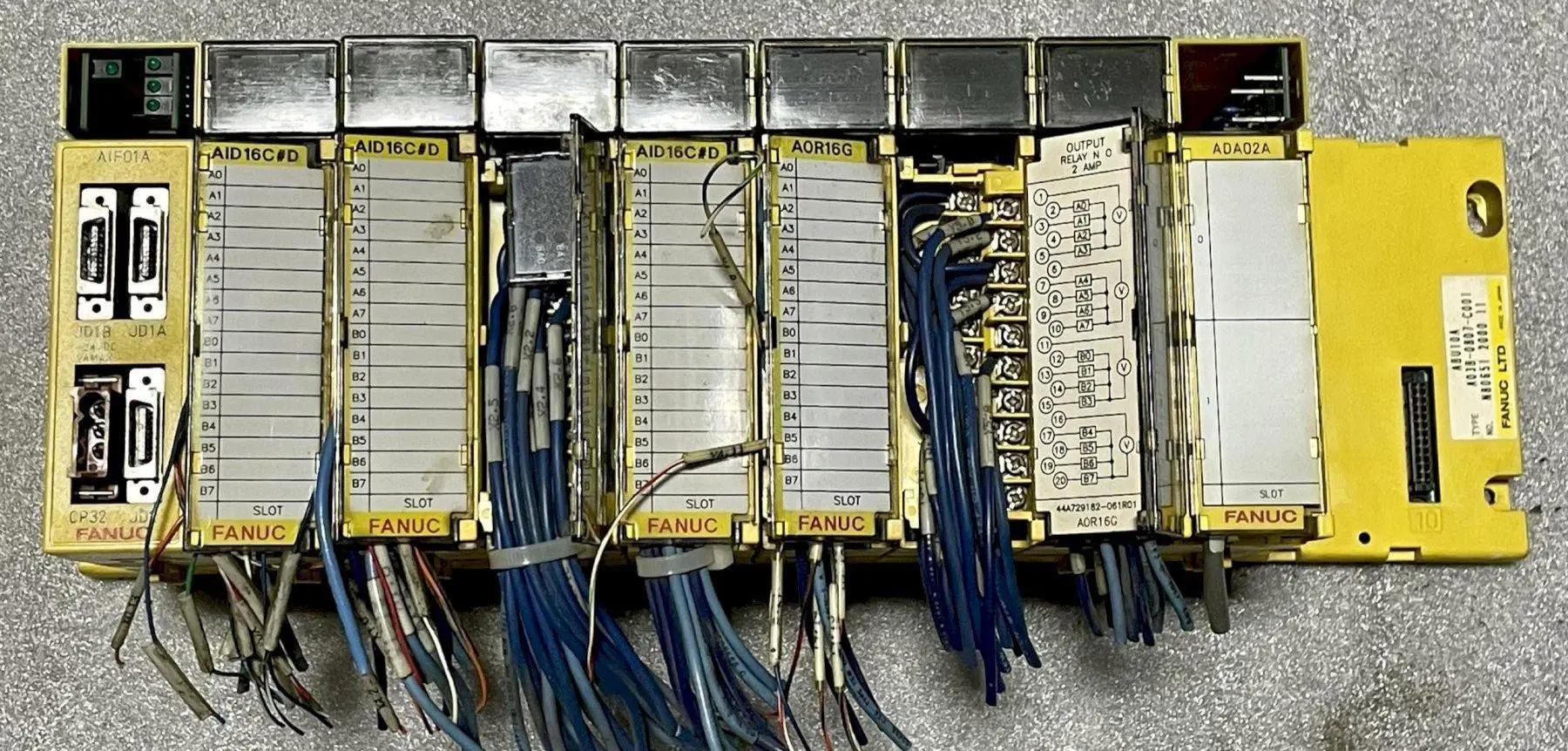

FANUC A03B-0807-C001 I/O 10-SLOT HORIZONTAL BASE UNIT, includes (1) A03B-0807-C011 I/O Interface Module, (4) A03B-0807-C103 I/O Input Modules, (3) A03B-0807-C161 I/O Output Modules, and (1) A03B-0807-C052 I/O Output Module.
| Product Type | Servo Drives | Servo Drives |
| Function | I/O Base Unit ABU10A Horizontal | I/O Base Unit ABU10A Horizontal |
| Input Voltage | 24 V | 24 V |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 19" X 7" X 7" | 19" X 7" X 7" |
| Weight | 9 LBS | 9 LBS |
Product Series: A03B-0807
Function: I/O Base Unit ABU10A Horizontal
Discontinued by Manufacturer?: yes
CNC?: yes
# Slots: 10
Slots Empty?: no
Slot 1: A03B-0807-C011 I/O Interface Module Model AIF01A 24VDC
Slot 2: A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC
Slot 3: A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC
Slot 4: A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC
Slot 5: A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC
Slot 6: A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC
Slot 7: A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC
Slot 8: A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC
Slot 9: A03B-0807-C052 2 Point Analog Output Module Model ADA02A
Slot 10: empty
