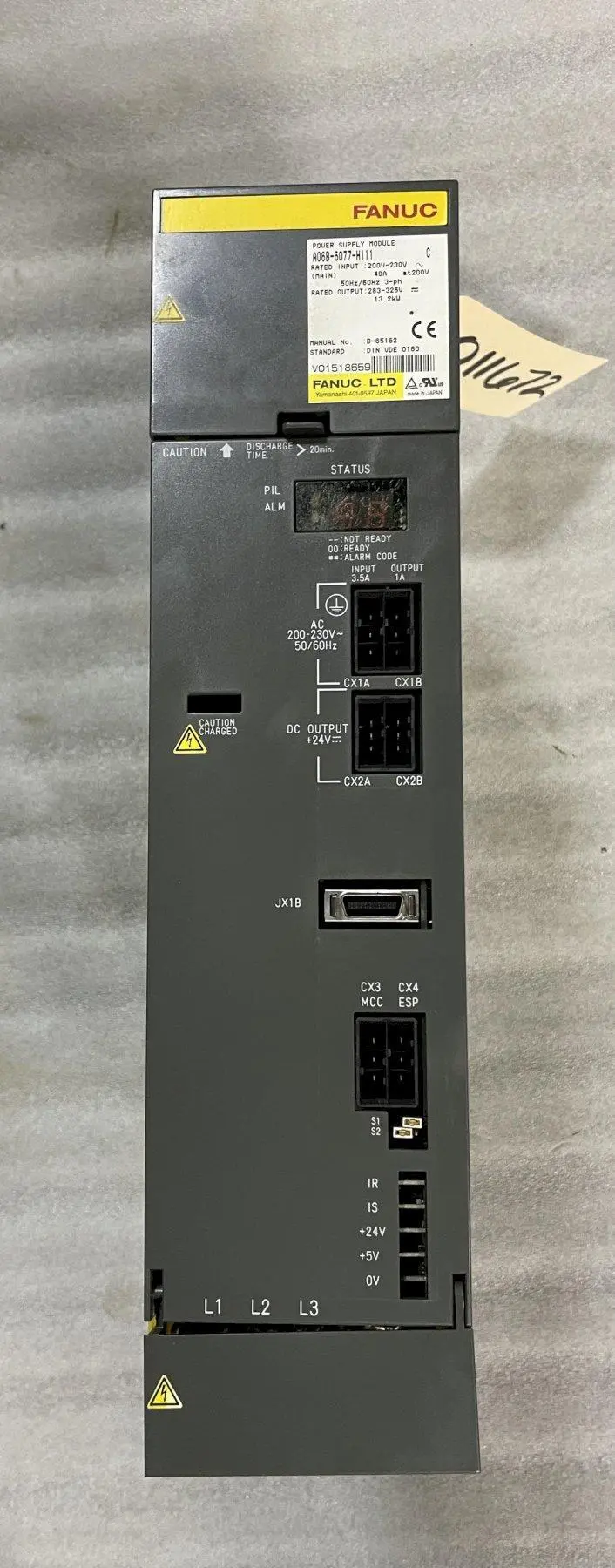

FANUC POWER SUPPLY MODULE, Part # A06B-6077-H111
| Control | CNC | CNC |
| Product Type | Power Supply Module | Power Supply Module |
| Function | Servo Power Converter | Servo Power Converter |
| Rated Input | 200 - 230 VAC (49 A at 200 V) 50/60 Hz 3-Phase | 9.8 kW |
| Input Voltage | 200 V | 200 V |
| Output Voltage | 283 - 325 VDC (13.2 kW) | 283 V |
| Output Power | 17.7 hp | 13.2 kW |
| Frequency | 50 Hz | 50 Hz |
| Manual No | B-65162 | B-65162 |
| Standards | EN50178, UL508C | EN50178, UL508C |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 18" x 10" x 16" | 18" x 10" x 16" |
| Weight | 16 LBS | 16 LBS |
NOTE: Alpha Power Supply Model PSM-11
