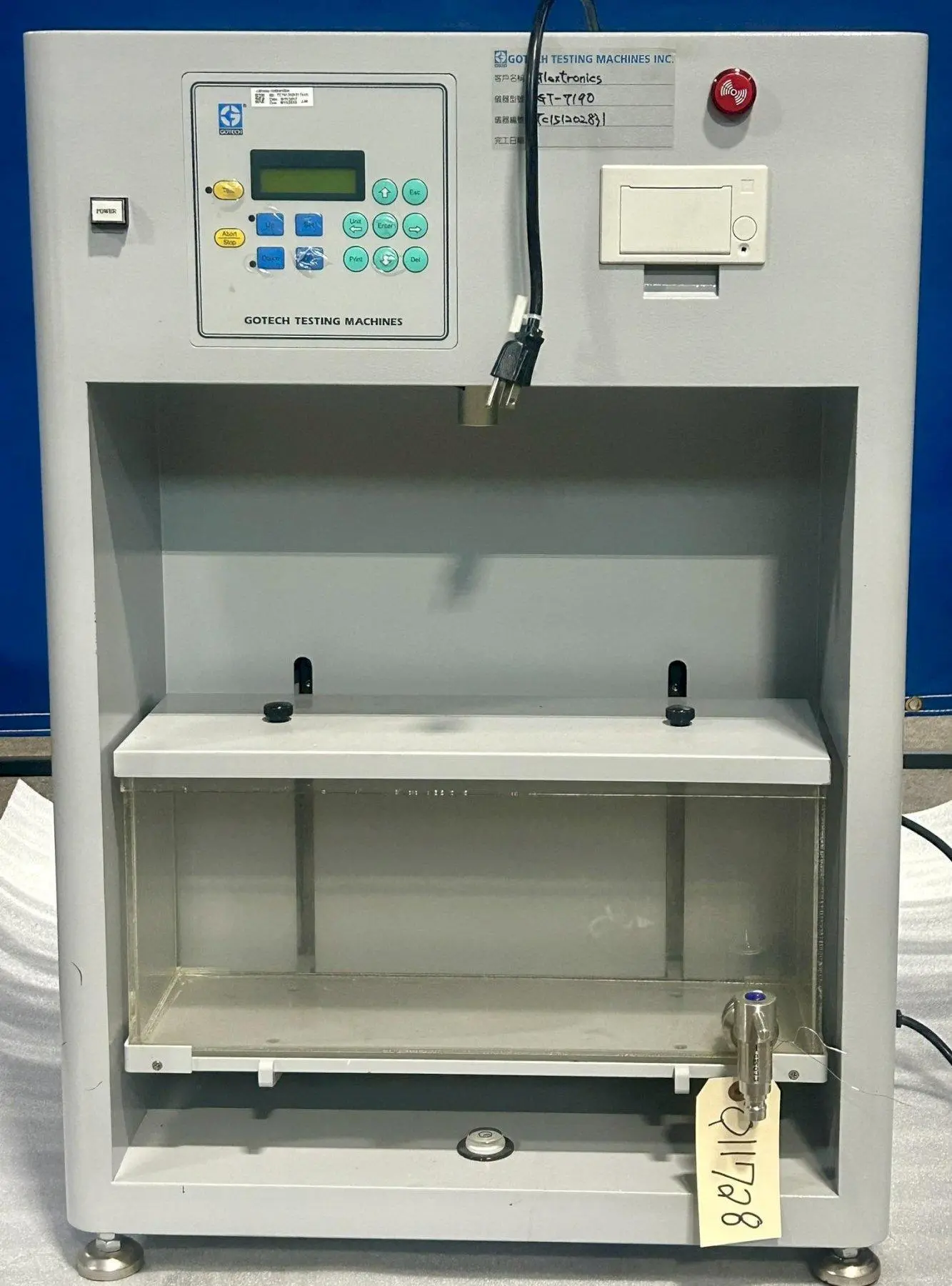

GOTECH DENSICOM DENSITY TESTER, Model GT-7190, 1000G Capacity, New 2015. This machine is a precise digital gravitometer used for measuring the specific gravity of outsoles made of rubber, plastics or EVA foam.
| Tester Type | Density | Density |
| Force Capacity | 2.2 lbf | 9.8 N |
| Load Accuracy | 1% | 1% |
| Water Tank-L | 19.29" | 489.97 mm |
| Water Tank-W | 5.71" | 145.03 mm |
| Water Tank-H | 8.86" | 225.04 mm |
| Stroke | 9.84" | 249.94 mm |
| Grips | Insert x1, clip x1 | Insert x1, clip x1 |
| Printing | Compact printer | Compact printer |
| Electrics | 220 VAC / 1 / 50/60Hz | 220 VAC / 1 / 50/60Hz |
| Dimensions | 27 x 19 | 27 x 19 |
| Weight | 200 | 200 |
Tester Type: Density
Capacity: 1 kgf
Load Accuracy: ± 1%
Volume of Water Tank: 490 x 145 x 225mm
Stroke: 250mm
Grips: Insert x1, clip x1
Printing: Compact printer
Electrics: 220 VAC / 1 / 50/60Hz
Approximate Dimensions: 27" x 19"
Approximate Height: 40"
Approximate Weight: 200 LBS
DESCRIPTION:
This machine is a precise digital gravitometer used for measuring the specific gravity of outsoles made of rubber, plastics or EVA foam. High sensitivity assembly and automatic lifting tank are used for automatic monitoring and calculation. Various clamps are available for your convenience. It can save and read out parameters. Test result can be printed out.
