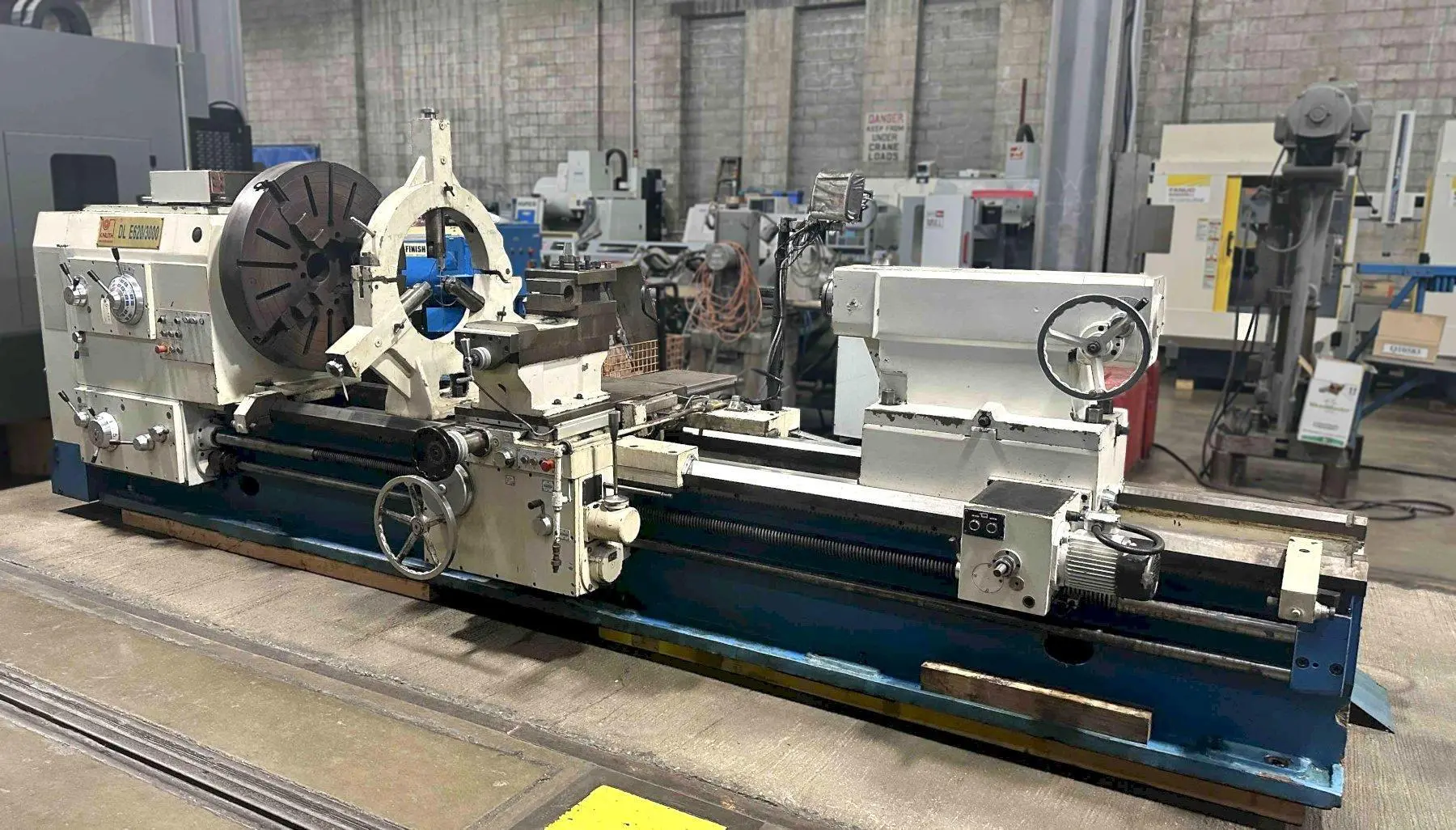

49" x 118" Knuth Heavy-Duty Engine Lathe, Model DL E 620/3000, 49" Swing Over Bed, 35" Swing Over Cross Slide, 118" Centers, 39.5" 4-Jaw Chuck, 5.1" Thru Hole, Tailstock, Follow and Steady Rest, Inch/Metric Threading, 3 Axis DRO Position Indicator, Coolant, Chuck Guard and Chip Guards, New 2010, Excellent Condition.
| Max Workpiece Length | 118" | 2,997.2 mm |
| Max Turning Diameter Over Bed | 49" | 1,244.6 mm |
| Max Turning Diameter Over Carriage | 35" | 889 mm |
| Width of Bed | 30" | 762 mm |
| Max Weight Capacity Between Centers | 13,200 lb | 5,987.4 kg |
| Max Weight Capacity on Chuck | 3,300 lb | 1,496.9 kg |
| Chuck Size | 39.5" | 1,003.3 mm |
| X-Axis Travel | 24.8" | 629.92 mm |
| Z-Axis Travel | 110" | 2,794 mm |
| Z1-Axis Travel | 12" | 304.8 mm |
| Swing Range of Top Slide | ± 180° | 180° |
| X-Axis Rapid Traverse Rate | 73.62 in/min. | 1,869.9 mm/min. |
| Z-Axis Rapid Traverse Rate | 147.24 in/min. | 3,739.9 mm/min. |
| Spindle Nose | A2-15 | A2-15 |
| Spindle Bore | 5.1" | 129.54 mm |
| # Spindle Speeds (Right) | 21 | 21 |
| Spindle Speed Range (Right) | 3.15 - 315 RPM | 315 RPM |
| # Spindle Speeds (Left) | 12 | 12 |
| Spindle Speed Range (Left) | 4 - 315 RPM | 315 RPM |
| # of Threads - Inch | 48 | 48 |
| Inch Threads | 5 - 60 TPI | 5 - 60 TPI |
| # of Threads - Metric | 45 | 45 |
| Metric Threads | 1 - 120 mm | 120 |
| # of Feeds | 3 | 3 |
| X-Axis Feed Rates | 0.00252 - 0.47244 IPR | 12 mm/rev |
| Z-Axis Feed Rates | 0.00126 - 0.23622 IPR | 6 mm/rev |
| Z1-Axis Feed Rates | 0 - 0.12 IPR | 3 mm/rev |
| Tailstock Quill Diameter | 6" | 152.4 mm |
| Tailstock Quill Taper | metric 80 | metric 80 |
| Tailstock Quill Stroke | 12" | 304.8 mm |
| Tailstock Traverse Adjustment | ± 0.1" | 2.54 mm |
| Main Motor Power | 29.5 hp | 22 kW |
| Electrics | 440/3/60 | 440/3/60 |
| Dimensions | 241" x 76" x 76" | 241" x 76" x 76" |
| Weight | 28,000 lbs | 28,000 lbs |
This is the Heavy Duty DL E Series (It's a Beast), Hardened and Ground Ways, Joy Stick Power Rapid Traverse of X & Z Axis, Power Feeds of X and Z Axis, Independent Tailstock Positioning Motor, 4 Sided Tool Post with an Add-On Removable 2-1/4" Boring Bar Holder on One Side, 2"-9" Cap Follow Rest, Optional 2"-23" Steady Rest Included, Inch/ Metric Threading, 3 Axis DRO Position Indicator, 4-Jaw Independent 39.5" Face Plate Chuck with lots of Extra Jaws and Factory Chuck Wrench, Central Lubrication, Coolant System, Chuck Guard and Auxiliary Chip Guards and Pan Behind the Machine, Leveling Pads and Manuals. Free Loading on Your Truck.
