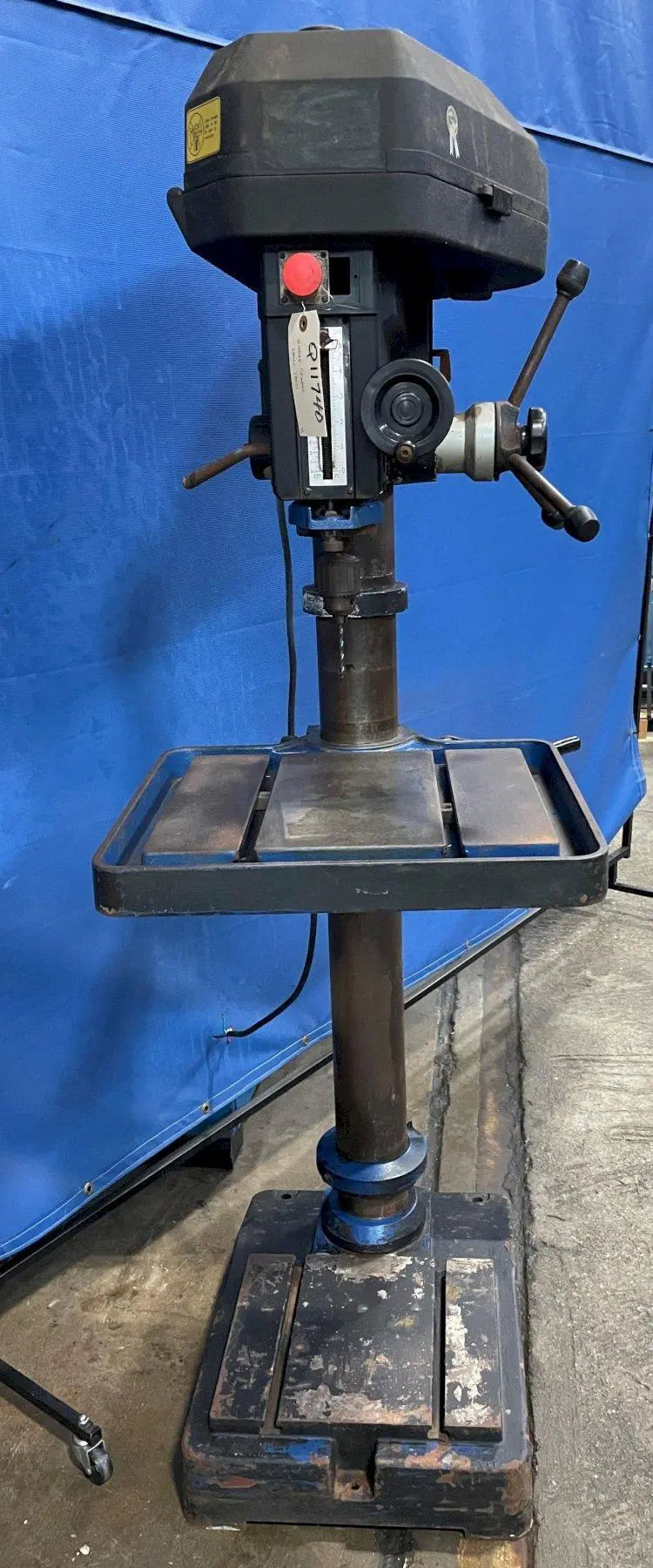

SINGLE SPINDLE DRILL PRESS, 18" x 15" Adj Table w/ 25" of Vertical Travel, 15" x 13" Lower Table, 8" Throat, 5" Quill Stroke, 4" Column, 1.5 HP Motor.
| Table-L | 18" | 457.2 mm |
| Table-W | 15" | 381 mm |
| Throat | 8" | 203.2 mm |
| Spindle Travel | 5" | 127 mm |
| Vertical Adjustment of Sliding Head | 25" | 635 mm |
| Spindle Taper | #4 MT | #4 MT |
| Column Diameter | 4" | 101.6 mm |
| Spindle Quill Stroke | 5" | 127 mm |
| Motor Power | 1.5 hp | 1.1 kW |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 38" x 25" x 72" | 38" x 25" x 72" |
| Weight | 1,200 LBS | 1,200 LBS |
