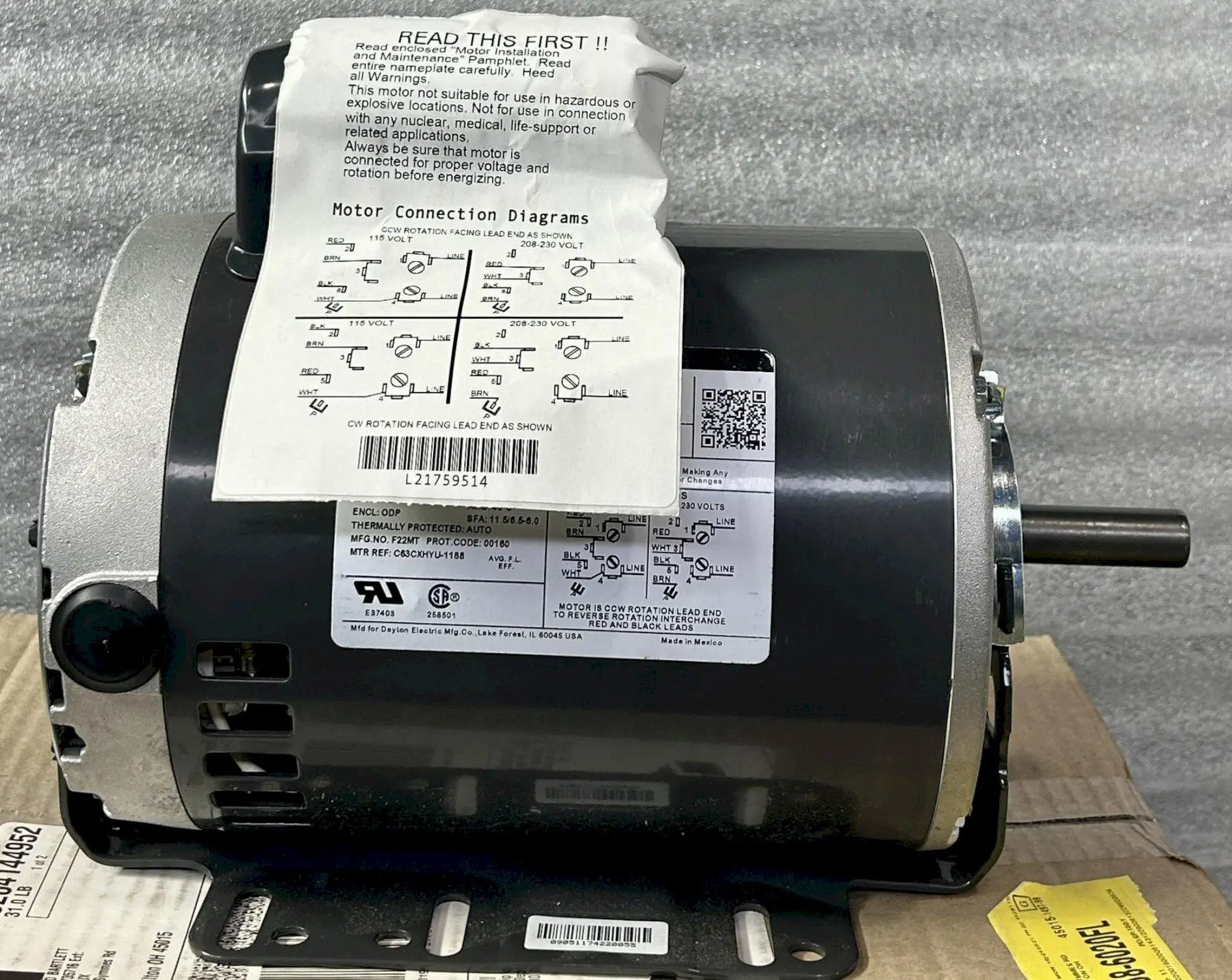

DAYTON 24C181A AC MOTOR, Belt Drive Fan & Blower Motor, 3/4 HP, 115/208-230 VAC, Single Phase, 1725 RPM, 9.8/5.2-5.0 Amps, 56H Frame, ODP, Cradle Base Mount.
| Shaft Diameter | 58" | 1,473.2 mm |
| Motor Power | 34 hp | 34 hp |
| Actual Rated Input Voltage | 0 V | 0 V |
| Full Load Amps | 0 A | 0 A |
| Base Speed | 1,725 RPM | 1,725 RPM |
| Frame | 56H | 56H |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 0 | 0 |
| Service Factor | 1.2 | 1.2 |
| NEMA KVA Code | K | K |
| Insulation Class | B (Max 130° C / 266° F) | B (Max 130° C / 266° F) |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Enclosure Type | ODP: Open Drip Proof | ODP: Open Drip Proof |
| Mounting Type | Cradle Base | Cradle Base |
| Special Motor Construction | Belt Drive Fan & Blower | Belt Drive Fan & Blower |
| Dimensions | 18 x 15 | 18 x 15 |
| Weight | 40 | 40 |
AC Motor Type: Capacitor-Start
Shaft Diameter: 5/8"
Motor Horsepower: 3/4 HP
Actual Rated Input Voltage: 115/208-230V AC
Full Load Amps: 9.8/5.2-5.0 A
Base Speed: 1,725 RPM
Frame: 56H
AC Frequency Rating: 60 Hz
Motor Phase: Single Phase
Service Factor: 1.25
NEMA KVA Code: K
Insulation Class: B (Max 266°F)
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: ODP (Open Drip Proof)
Current Type: AC
Mounting Type: Cradle Base
Special Motor Construction: Belt Drive Fan & Blower
Approximate Dimensions: 18" x 15"
Approximate Height: 16"
Approximate Weight: 40 LBS
