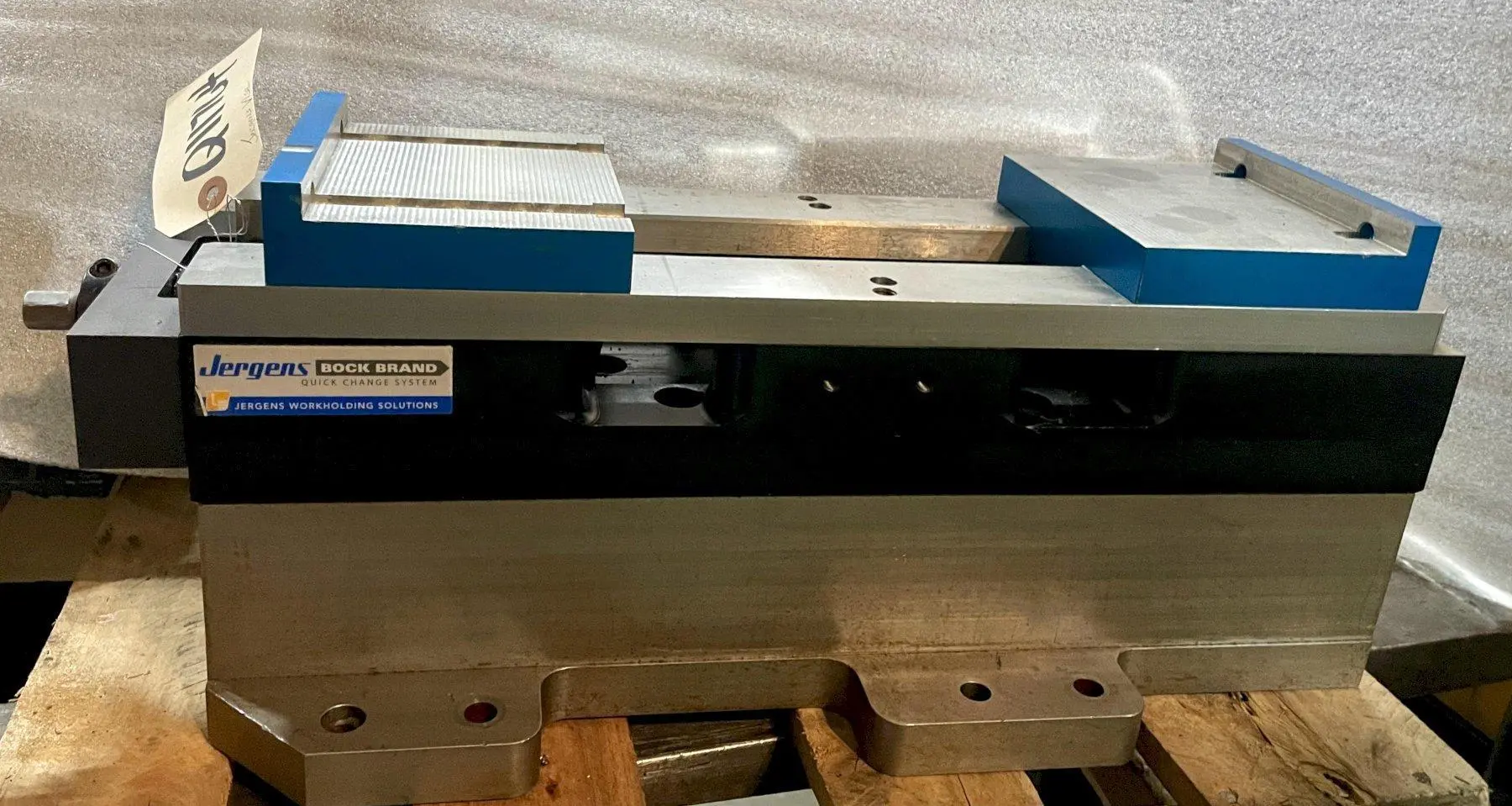

USED Jergens BOCK BRAND TV6S

Features, Benefits, & Product Specifications:

Hard-coated machined aluminum base
Compact lightweight design for easy setup
Fully sealed, patented lead screw assembly for long maintenance free service
Openings allow chips to flow out of the vise base
Hardened ground stainless steel rails for precision, wear resistance, and jaw support
Supplied with fully machinable and reversible aluminum soft jaws

Clamping Force Data Table:

Torque (ft. lbs / Nm)
Clamping Force (lbs / kfg):

20 / 27 3600 / 1630
30 / 41 4500 / 2040
40 / 54 5300 / 2400
50 / 68 6200 / 2800
60 / 81 7200 / 3250
70 /95 8400 / 3800
80 / 108 9200 / 4150
90 / 122 10100* / 4550*

* Recommended Maximum
Maximum Clamping Range with Shaped Jaws:

Dual Station
9.2" (233mm)

Single Station
19.5" (495mm)
