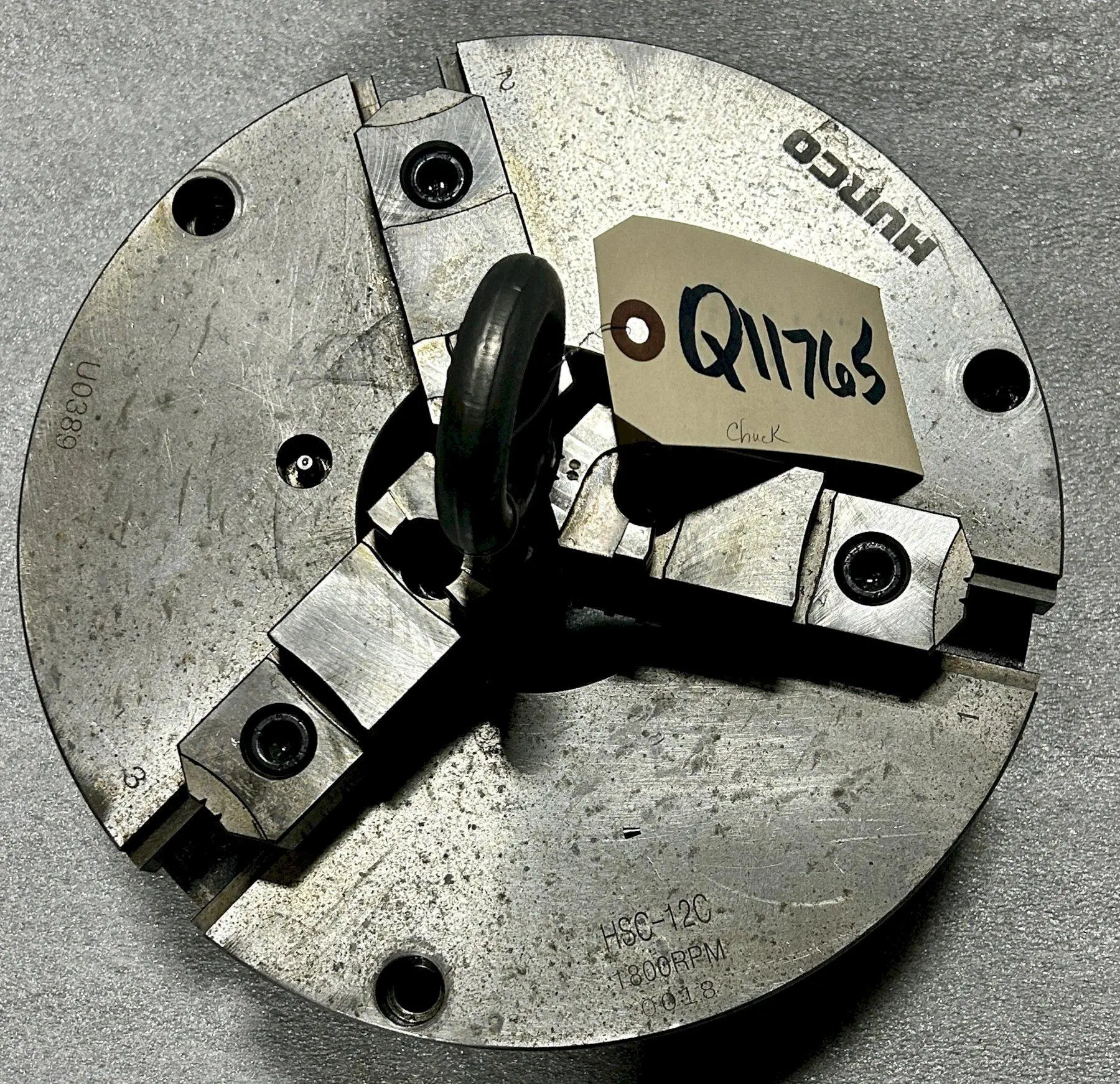

12" AUTO STRONG HSC-12 3-JAW SCROLL CHUCK, Plain Back, Solid Jaws, 1800 RPM Max Speed, 4200 kgf Gripping Force.
| Type | Self-centering | Self-centering |
| # Jaws | 3 | 3 |
| Type of Actuation | Manual | Manual |
| Body Diameter | 12" | 304.8 mm |
| Body Height | 5" | 127 mm |
| Through Hole Diameter | 4.75" | 120.65 mm |
| Max Speed | 1,800 RPM | 1,800 RPM |
| Max Grip Force | 9,237.2 lbf | 41.1 kN |
| Min Grip | 0.394" | 10.008 mm |
| Max Grip | 11.811" | 300 mm |
| Dimensions | 14 x 14 | 14 x 14 |
| Weight | 90 LBS | 90 LBS |
Type: Self-centering
# Jaws: 3
Type of Actuation: Manual
Body Diameter: 12"
Through Hole Diameter: 4-3/4"
Max Speed: 1,800 RPM
Max Grip Force: 4,200 kgf
Gripping Range: Ø10mm~Ø300mm OD / Ø86mm~Ø290mm ID
Approximate Dimensions: 14" x 14"
Approximate Height: 5"
Approximate Weight: 90 LBS
