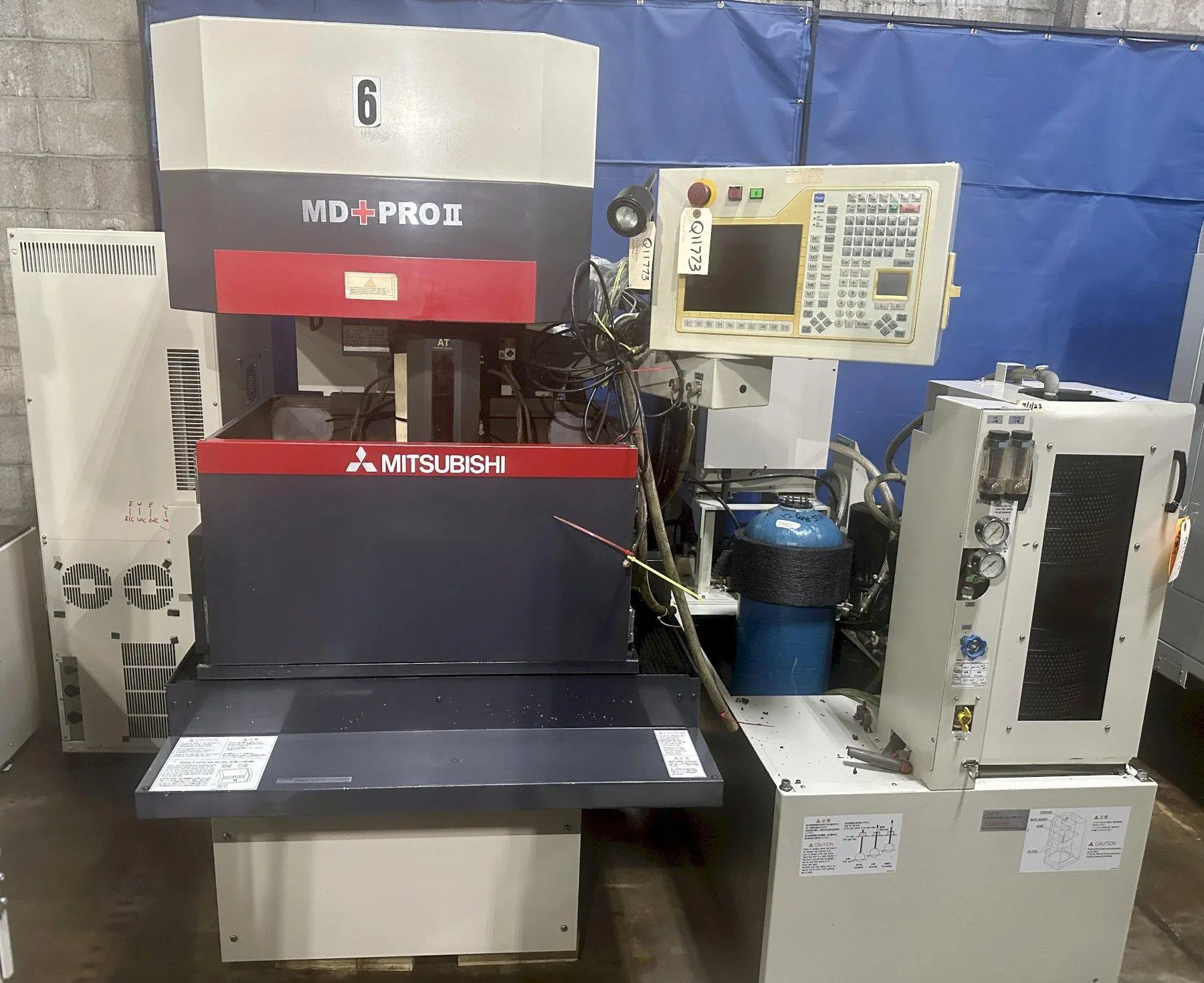

Mitsubishi MD+PRO II CNC Wire EDM, Model BA8, Mitsubishi V350 CNC Control, 31" x 23" x 18.5" Tank, X=12.598", Y=9.843", Z=8.661", U & V Axis=1.26", Auto Wire Threading, New 2007.
| Control | CNC (Mitsubishi V350) | CNC (Mitsubishi V350) |
| Control | Mitsubishi V350 CNC | Mitsubishi V350 CNC |
| Table-L | 21.3" | 541.02 mm |
| Table-W | 16.9" | 429.26 mm |
| Max Workpiece Length | 27.6" | 701.04 mm |
| Max Workpiece Width | 21.7" | 551.18 mm |
| Max Workpiece Height | 8.5" | 215.9 mm |
| Max Workpiece Weight | 1,100 lbs | 499 kg |
| X-Axis (Longitudinal Travel) | 12.6" | 320.04 mm |
| Y-Axis (Cross Travel) | 9.8" | 248.92 mm |
| Z-Axis (Vertical Travel) | 8.6" | 218.44 mm |
| U-Axis Travel | ±1.2" | 30.48 mm |
| V-Axis Travel | ±1.2" | 30.48 mm |
| Max Taper Angle | 15° at 3.93" Thickness | 15° |
| Wire Diameter Range | 0.004" - 0.012" | 0.3048 mm |
| Dielectric Fluid Capacity | 93 gal | 0.4 m³ |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Dimensions | 79.7" x 106.4" x 79.3" | 79.7" x 106.4" x 79.3" |
| Weight | 5,952 LBS | 5,952 LBS |
Mitsubishi V350 CNC Control (PC Based), Automatic Wire Threading, Submerged Machining, Linear Guide Ways.
