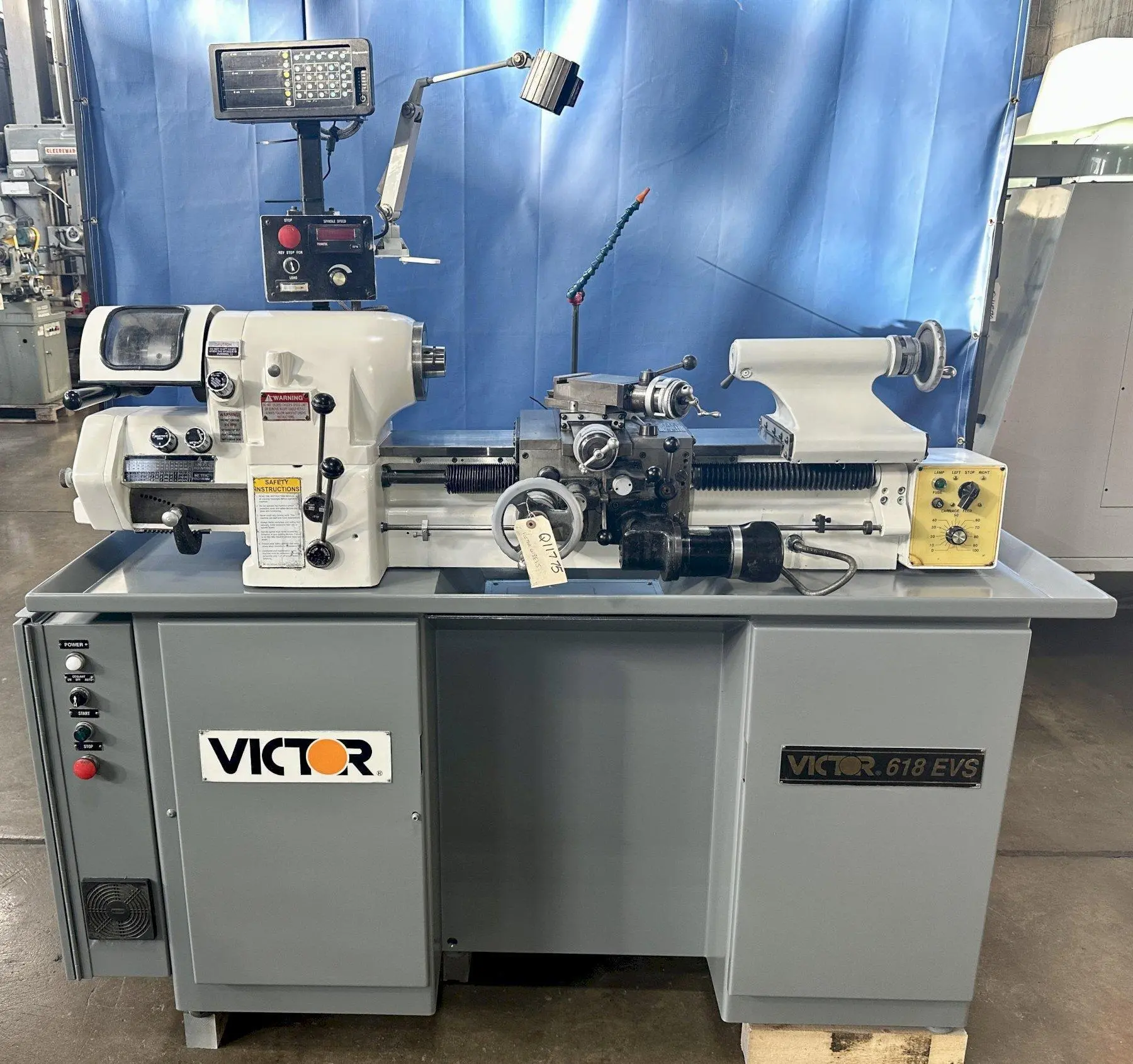

6" x 18" VICTOR 618EVS PRECISION TOOLROOM LATHE, DRO, 11" Swing Over Bed, 6" Swing Over Cross Slide, 18" Between Centers, Collet Chuck, Compound Cross Slide, 4000 RPM Variable Speed Spindle, 3 HP, New 2005.
| Max Swing Over Bed | 11" | 279.4 mm |
| Max Swing Over Carriage | 9" | 228.6 mm |
| Max Swing Over Cross Slide | 6" | 152.4 mm |
| Distance Between Centers | 18" | 457.2 mm |
| Spindle Thru Hole Capacity with Round Collets | 1-1/16" (Round 5C Collet) | 26.988 mm |
| Spindle Thru Hole Capacity with Hex Collets | 0.875" | 22.225 mm |
| Spindle Thru Hole Capacity with Square 5C Collets | 1.25" | 31.75 mm |
| Spindle Speed Range | 1 - 3,000 RPM for 6" 3-Jaw Chuck / 1 - 4,000 RPM for 5C Collet | 0 RPM |
| Max Spindle Speed for Chuck | 3,000 RPM | 3,000 RPM |
| Max Spindle Speed for Collet | 4,000 RPM | 4,000 RPM |
| # of Threads - Inch | 36 | 36 |
| Inch Threads | 11 - 108 TPI | 11 - 108 TPI |
| Tailstock Spindle Travel | 3.75" | 95.25 mm |
| Tailstock Taper | #2 MT | #2 MT |
| Motor Power | 3 hp | 2.2 kW |
| Electric | 220/3/60 | 220/3/60 |
| Dimensions | 73" x 30" x 67" | 73" x 30" x 67" |
| Weight | 2,530 lbs | 2,530 lbs |
Digital Read Out, 5C Collet Chuck, Variable Frequency Spindle (4,000 RPM), Compound Cross Slide, English and Metric Threading, Coolant Pump.
* High Quality Precision Tool Room Lathe, similar to a Monarch EE
