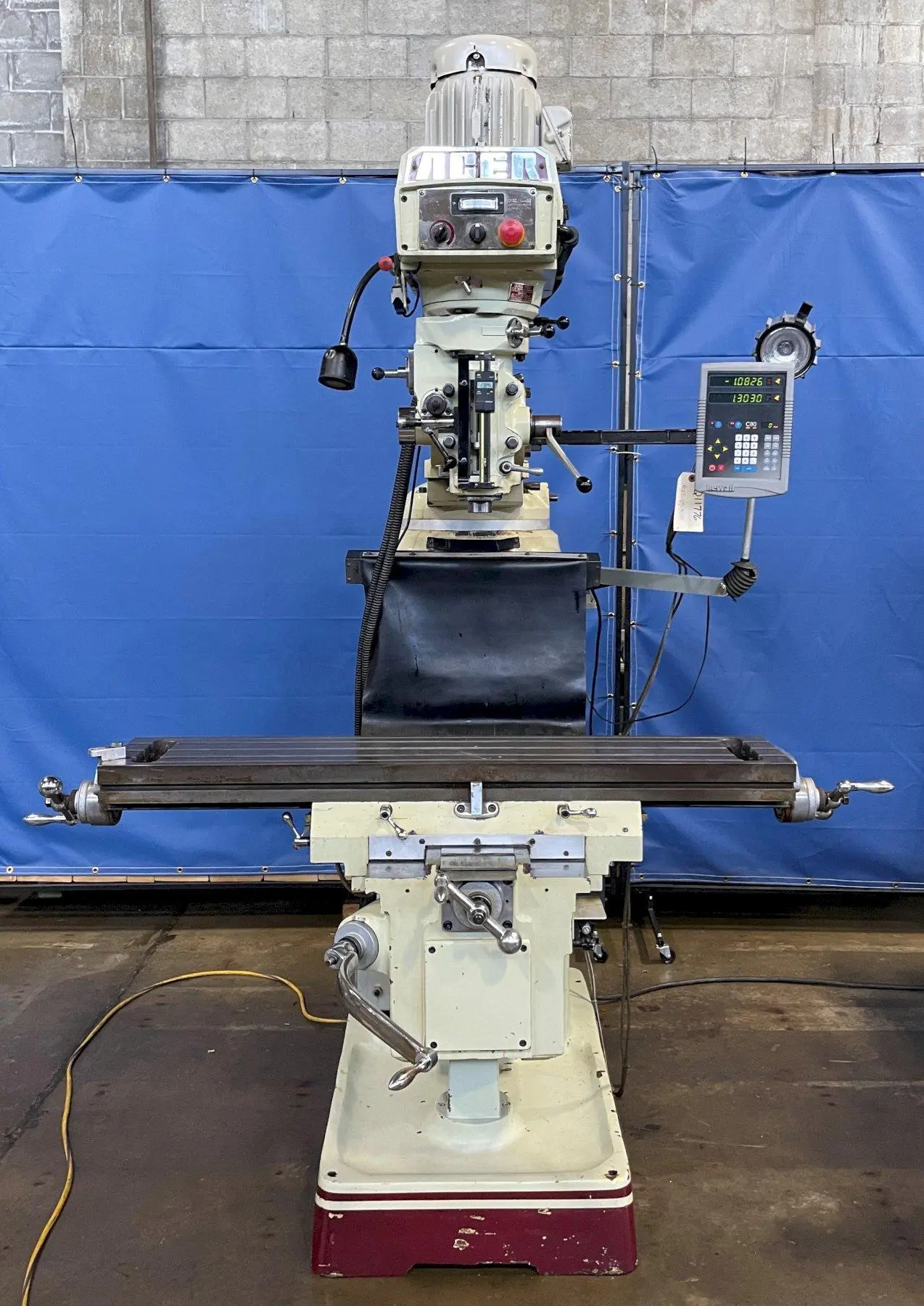

ACER eMill 3VKH VERTICAL MILL, 2-Axis Newall C-80 DRO, 10" x 50" Table, 3 HP Motor, 4500 RPM, New 2004.
| Table-L | 50" | 1,270 mm |
| Table-W | 10" | 254 mm |
| Table Working Surface-L | 50" | 1,270 mm |
| Table Working Surface-W | 10" | 254 mm |
| Max Weight of Workpiece | 850 lbs | 385.6 kg |
| X-Axis (Longit. Table Travel Power Feed) | 34" | 863.6 mm |
| Y-Axis (Cross Saddle Travel) | 17" | 431.8 mm |
| W-Axis (Vertical Knee Travel) | 19" | 482.6 mm |
| Z-Axis (Vertical Quill Travel) | 5" | 127 mm |
| Ram Travel | 20" | 508 mm |
| Spindle Taper | R-8 | R-8 |
| Spindle Speeds | 60 - 4,500 RPM | 4,500 RPM |
| Quill Feeds | 0.0015 - 0.006 IPR / Rev | 0.0015 - 0.006 IPR / Rev |
| Spindle Power | 3 hp | 2.2 kW |
| Electrics | 220/440/3/60 | 220/440/3/60 |
| Dimensions | 70" x 66" x 95" | 70" x 66" x 95" |
| Weight | 3300 LBS | 3300 LBS |
Head Movement (Right to Left): ±90°
Head Tilt (Front to Back): ±45°
Newall C-80 DRO
