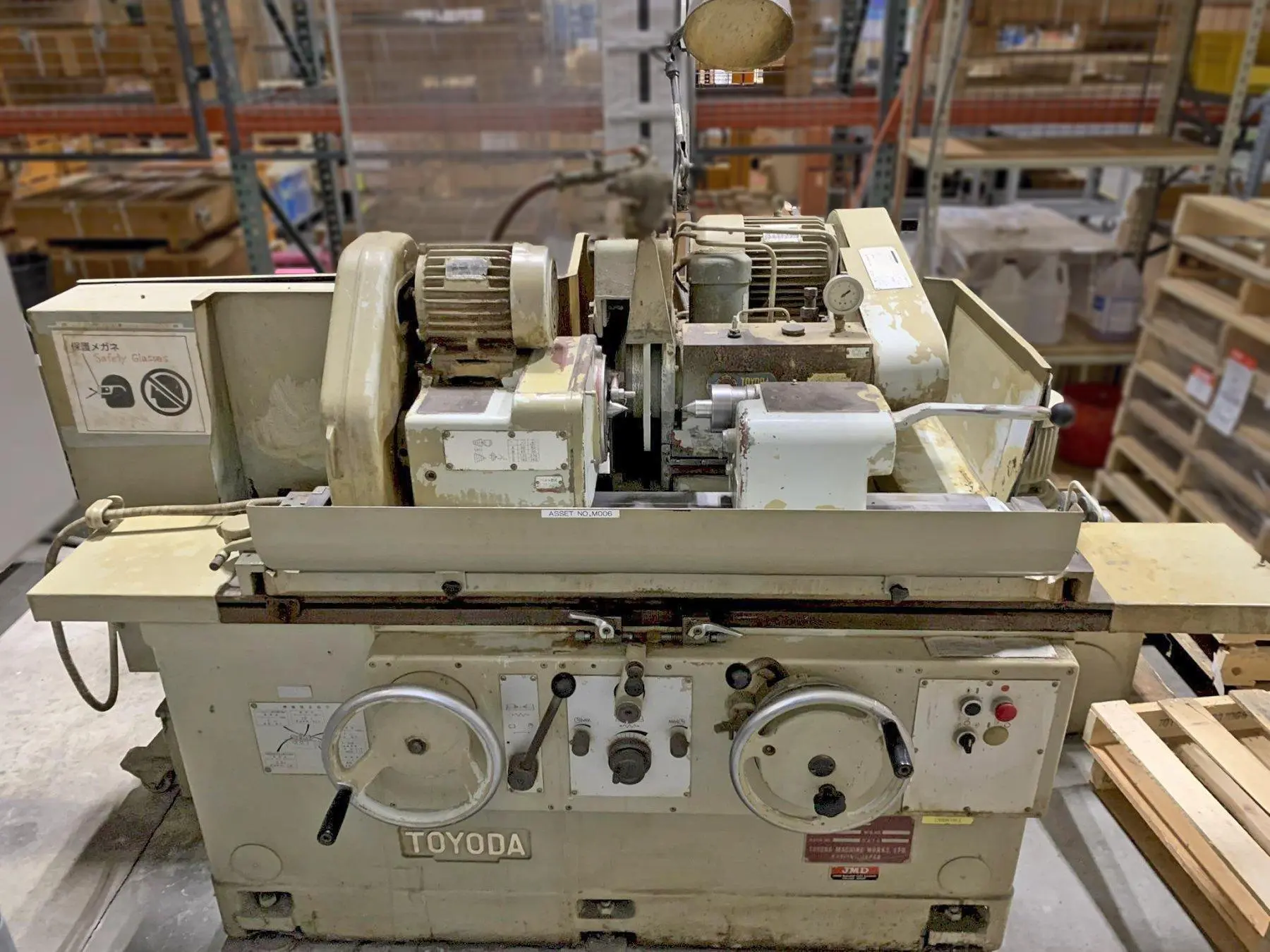

12" x 20" TOYODA GOS32X50 CYLINDRICAL GRINDER, 12.6" Swing, 20" Between Centers, 16" Diameter Wheel, 5 HP Spindle, Coolant System, New 1985.
| Plain or Angle Head | Plain | Plain |
| Max Swing Over Table | 12.59" | 319.79 mm |
| Max Distance Between Centers | 19.68" | 499.87 mm |
| Max Load Between Centers | 330 lbs | 149.7 kg |
| Max Grinding Wheel Diameter | 16" | 406.4 mm |
| Max Grinding Wheel Width | 3" | 76.2 mm |
| Grinding Wheel Hole Diameter | 1.1" | 27.94 mm |
| Wheelhead Infeed Rate | 1.97 - 157 IPM | 4 m/min. |
| Wheelhead Infeed Rapid Traverse Stroke | 1.57" | 39.878 mm |
| Wheelhead Swivel Range | 12.5° | 12.5° |
| Wheelhead Power | 5.5 hp | 4.1 kW |
| Wheelhead Surface Speed | 6,500 SFPM | 1,981,204 SMMPM |
| Workhead Power | .27 / .54 hp | 0.4 kW |
| Workhead Speed | 30 - 360 RPM | 360 RPM |
| Dimensions | 101" x 77" x 76" | 101" x 77" x 76" |
| Weight | 6,400 LBS | 6,400 LBS |
12.6" Swing, 20" Between Centers, 16" Diameter Wheel, 5 HP Spindle, Coolant System.
