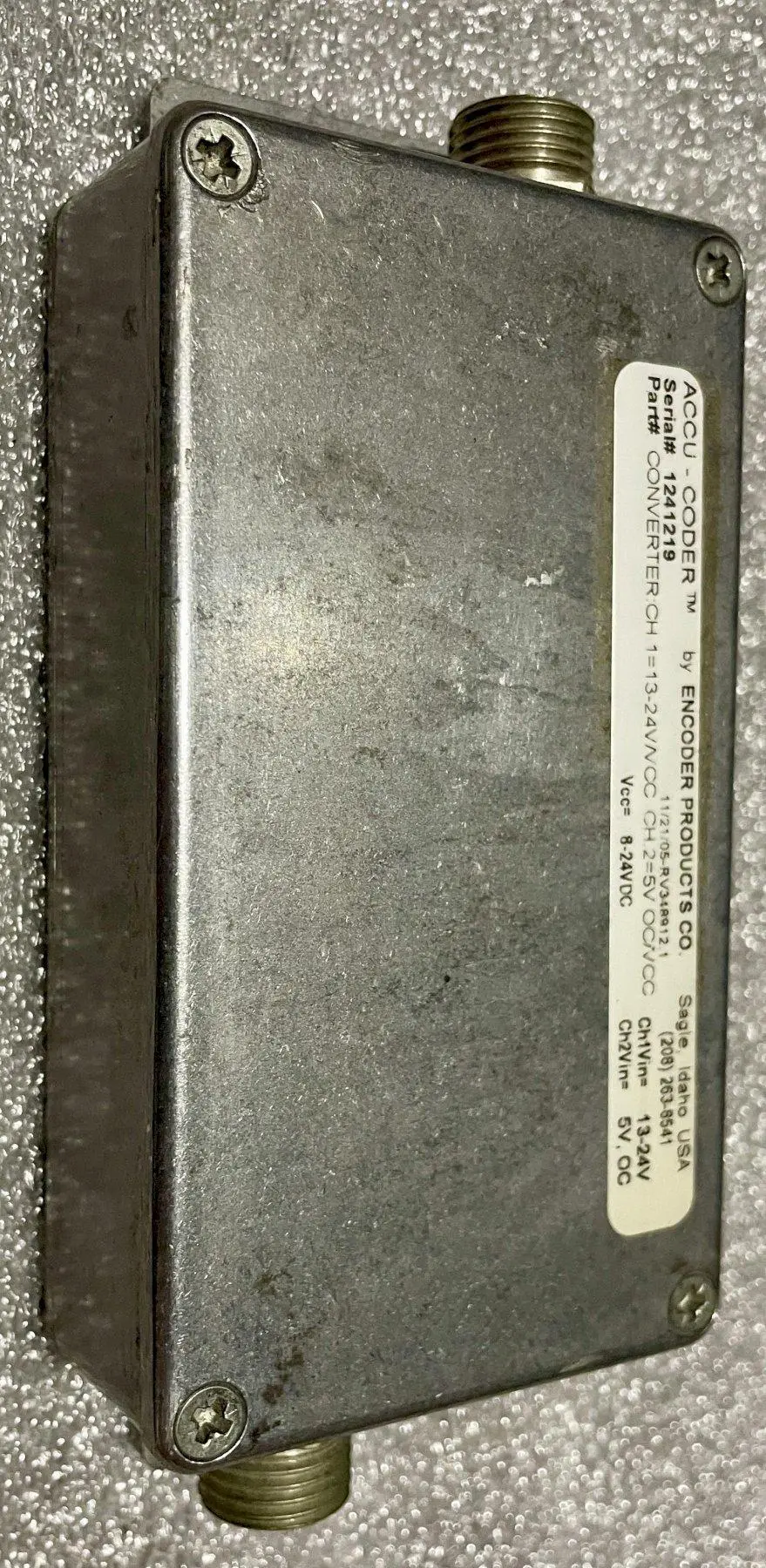

ENCODER PRODUCTS ACCU-CODER 100020-9 RX/TX CONVERTER
| Type | RX/TX Converter | RX/TX Converter |
| Current Type | DC | DC |
| Supply Source (Vcc) | 5 to 24 VDC | 5 V |
| Max Current Consumption | 20 mA (plus encoder and output load requirements) | 20 mA |
| Max Frequency | Up to 1 MHz | 1,000,000 Hz |
| Enclosure Rating | IP54 (Dust proof) | IP54 (Dust proof) |
| Input Voltage: Channel 1 | 13 - 24 VDC | 13 V |
| Input Voltage: Channel 2 | 5 VDC | 5 V |
| Output Voltage: Channel 1 | Vcc | Vcc |
| Output Voltage: Channel 2 | Vcc | Vcc |
| Max Output Current per Channel | 30 mA/Channel | 30 mA |
| Dimensions | 6" x 3" x 2" | 6" x 3" x 2" |
| Weight | 5 LBS | 5 LBS |
FEATURES:
The RX/TX Converter converts a Push-Pull or NPN encoder output to an RS422 compatible differential Line Driver output. In addition, it will also convert Line Driver/RS422 encoder output to single ended signals (PushPull) for compatibility with certain PLC's.
Each converter has two independent channels: Channel 1 is a differential Line Receiver on the input. It then converts these differential signals (A, A’, B, B’, Z, Z’) to Push-Pull output signals (A, B, Z), with an amplitude equivalent to Vcc.
Channel 2 will convert single ended signals from a Push-Pull or NPN Open Collector encoder to Differential Line Driver signals. Differential Line Driver signals include complementary outputs A’, B’, and Z’ which offer greater immunity to electrical noise, signal distortion, and interference, especially with long cable runs.
