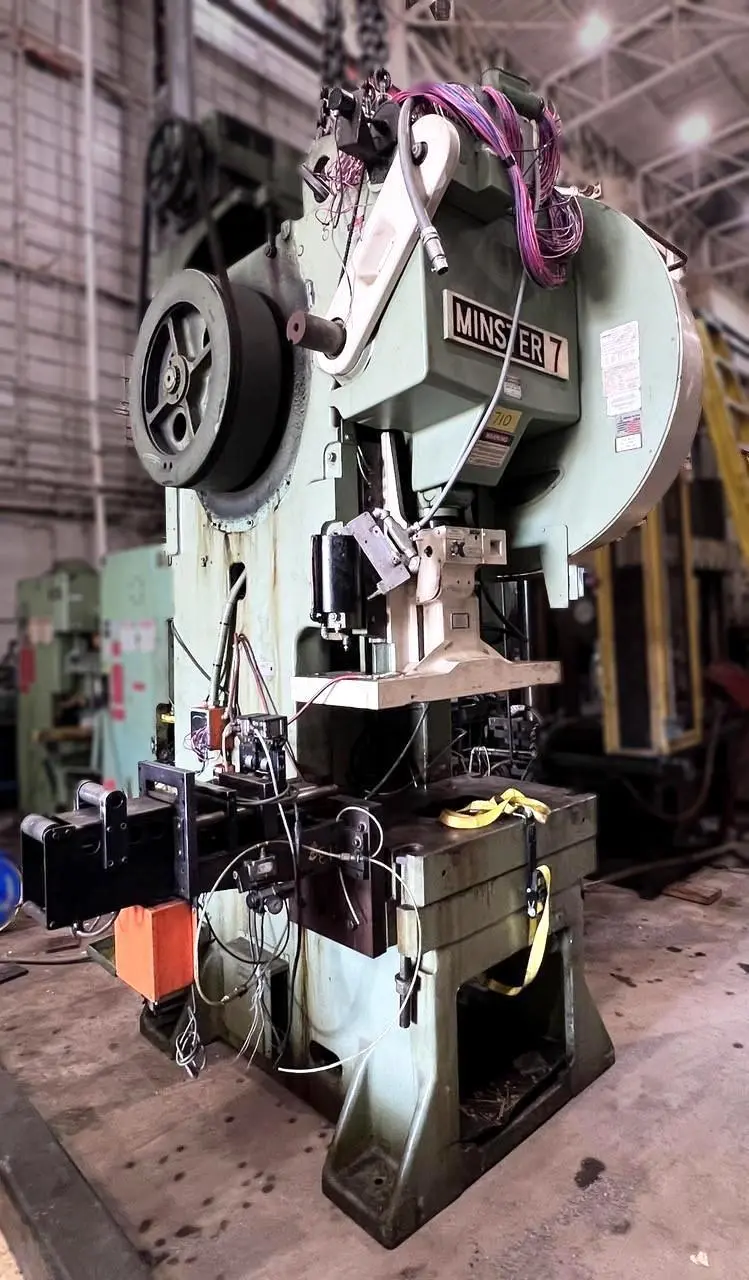

75 TON MINSTER FIXED BASE GAP FRAME PRESS, Model #7, 4" Stroke, 3.5" Slide Adj, 21" Shut Height, 36" x 24" Bed, 5" Bolster Plate, 45-90 SPM, New 1991.
| Tonnage Capacity | 75 T | 68.039 t |
| Stroke Length | 4" | 101.6 mm |
| Adjustment | 3.5" | 88.9 mm |
| Shut Height | 21" | 533.4 mm |
| Bed Size (L-R) | 36" | 914.4 mm |
| Bed Size (F-B) | 24" | 609.6 mm |
| Bolster Plate-L | 5" | 127 mm |
| Bolster Plate-H | 5" | 127 mm |
| Pressing Speed | 45 - 90 strokes/min. | 45 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
Air Clutch & Brake, Free Standing Control Console, 5" Bolster Plate.
