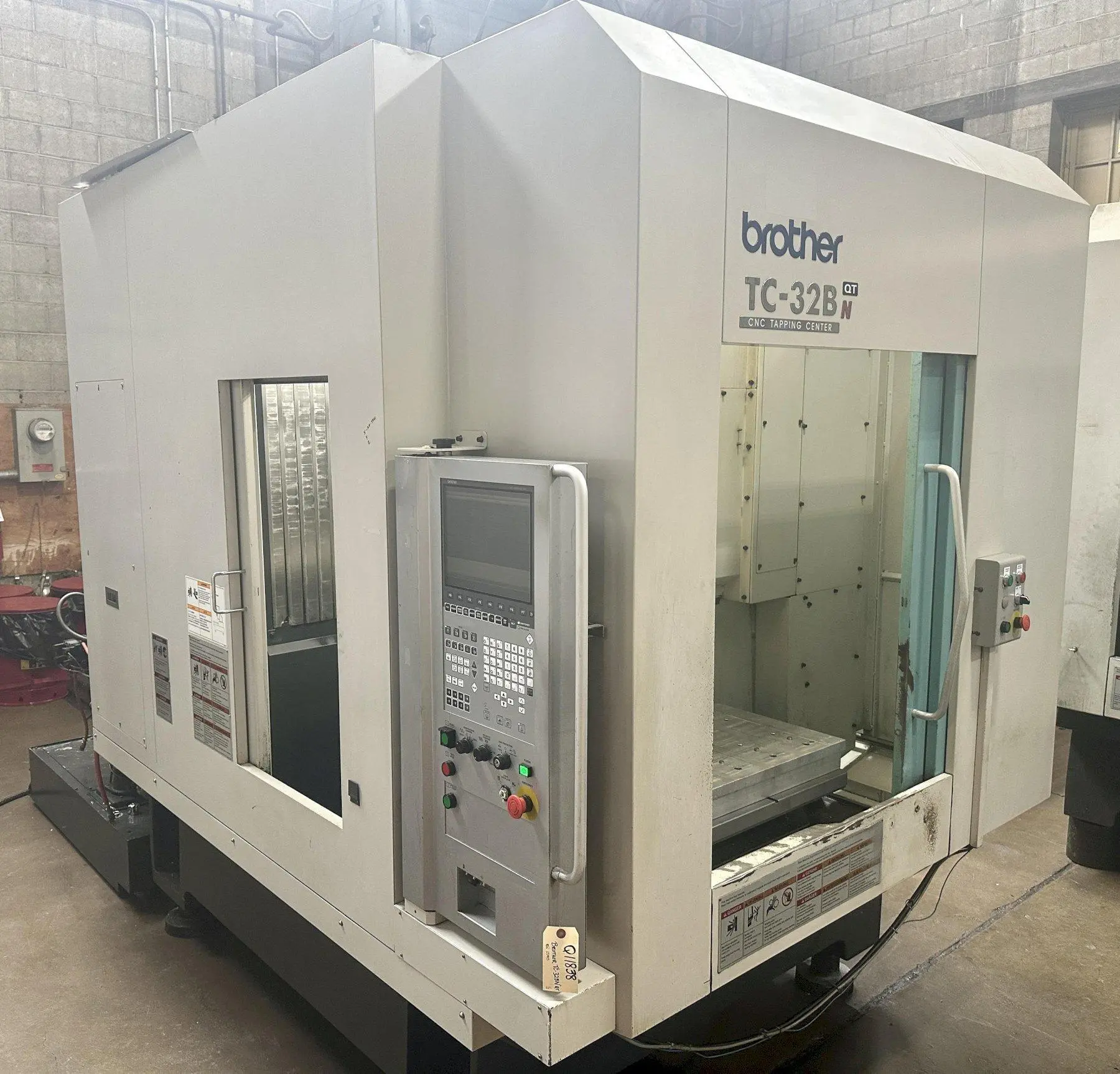

BROTHER TC-32BN QT CNC VERTICAL MACHINING CENTER, Brother B00 CNC Control, 23.6" x 16.7" Table, X=21.7", Y=15.7", Z=16.3", BT30 Taper, 16000 Max Spindle RPM, Chip Conveyor & Coolant System, New 2014.
| CNC Control | Brother B00 CNC | Brother B00 CNC |
| # Axis | 3 | 3 |
| Table-L | 16.7" | 424.18 mm |
| Table-W | 23.6" | 599.44 mm |
| Max Table Load Capacity | 441 lb (one side) | 200 kg |
| X-Axis (Longitudinal Travel) | 21.7" | 551.18 mm |
| Y-Axis (Cross Travel) | 15.7" | 398.78 mm |
| Z-Axis (Vertical Travel) | 16.3" | 414.02 mm |
| Max Clearance Tabletop to Spindle Nose | 25.4" | 645.16 mm |
| Feed Rates (X, Y, & Z Axis) | 0.04 - 787.4 in/min. | 20 m/min. |
| Rapid Traverse Rate (X, Y, & Z Axis) | 2,756 in/min. | 70 m/min. |
| Spindle Power | 13.3/9.7 hp | 9.9 kW |
| Spindle Speed Range | 16 - 16,000 RPM | 16,000 RPM |
| Spindle Taper | BT30 | BT30 |
| Coolant Through Spindle | No | No |
| Automatic Tool Changer Capacity (ATC) | 26 | 26 |
| Automatic Tool Changer Style | Double Arm | Double Arm |
| Tool Change Time | 2 sec. | 2 sec. |
| Electrics | 230/3/60 | 230/3/60 |
| Dimensions | 74.4" x 144.4" x 92.9" | 74.4" x 144.4" x 92.9" |
| Weight | 10,143 LBS | 10,143 LBS |
Brother B00 CNC Control, 16000 RPM Spindle, BT30 Spindle Taper, 26 Station Tool Changer, Chip Conveyor & Coolant System.
