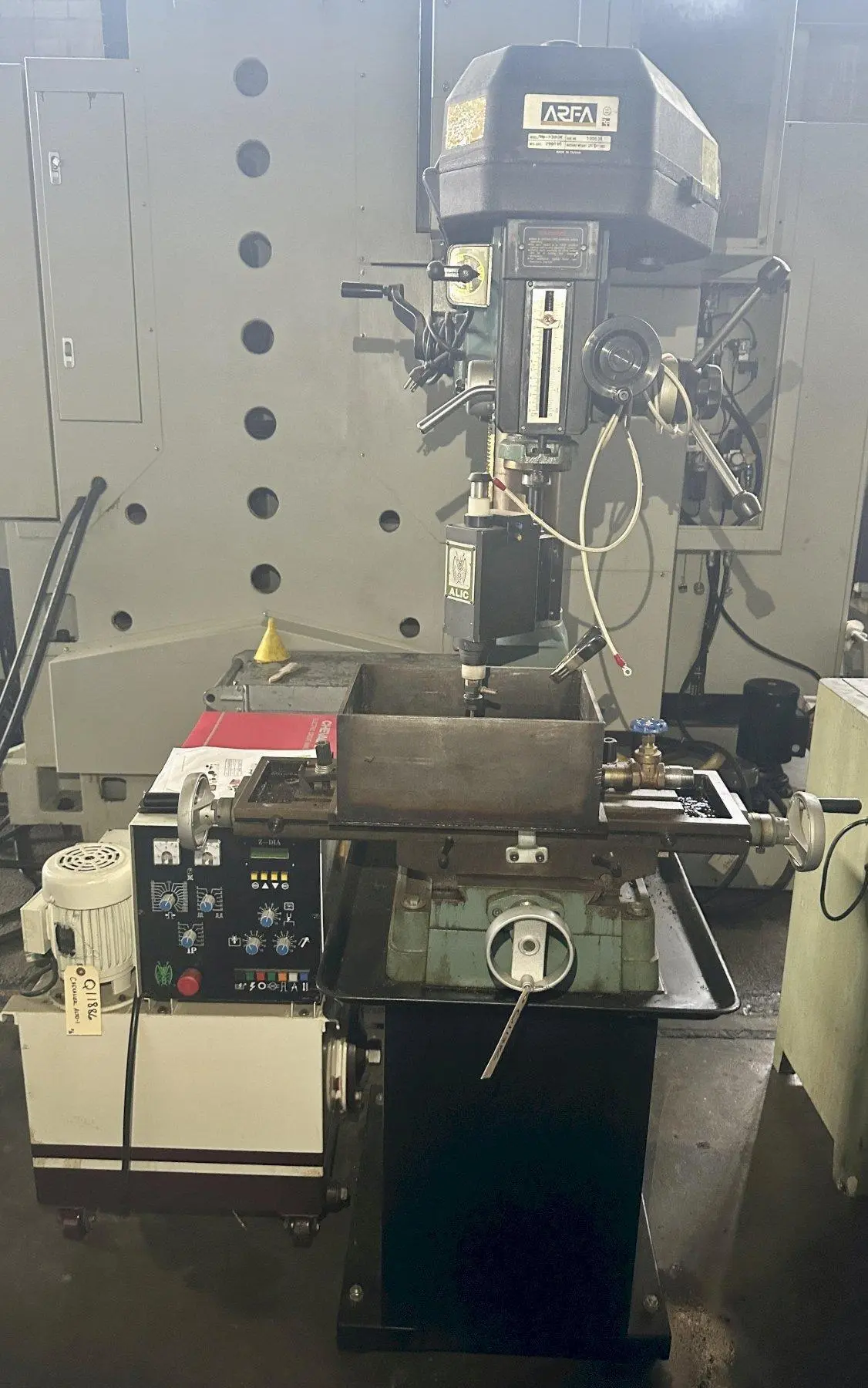

CHEVALIER ALIC-1 MANUAL RAM PORTABLE TOOL TYPE EDM, ARFA MMD-9100 Milling Machine with an ALIC-1 EDM Tool (15AMP) Mounted to Spindle Powered by a Chevalier DT-168 Portable EDM Power Unit, Travels X=14", Y=8", Z=5", Max Work Piece Dimensions 13.75" x 10.75" x 5.5", Magnetic Chuck, New 2001.
| Control | CNC (220/3/60) | CNC (220/3/60) |
| Internal Work Tank Width | 13.75" | 349.25 mm |
| Internal Work Tank Depth | 10.5" | 266.7 mm |
| Internal Work Tank Height | 5.5" | 139.7 mm |
| Table-L | 13.75" | 349.25 mm |
| Table-W | 10.5" | 266.7 mm |
| Dielectric Fluid Capacity | 24 gal | 90.8 L |
| Dielectric Tank Capacity | 24 gal | 90.8 L |
| X-Axis (Longitudinal Travel) | 14" | 355.6 mm |
| Y-Axis (Cross Travel) | 8" | 203.2 mm |
| Z-Axis (Ram Travel) | 5.5" | 139.7 mm |
| Electrode Quill Stroke | 2.3125" | 58.738 mm |
| Max Electrode Weight | 22 lb | 10 kg |
| Max Process Current | 15 A | 15 A |
| Electrics | 220/3/60 | 220/3/60 |
| Power Supplier Unit - Model | DT-168 | DT-168 |
| Power Supplier Unit - Max Machining Current | 15 A | 15 A |
| Dimensions | 60" x 40" x 81" | 60" x 40" x 81" |
| Weight | 2500 LBS | 2500 LBS |
ARFA MMD-91002K Milling Machine with an Alic-1 EDM Tool Mounted to Spindle powered by a Chevalier DT168 Power Unit, 15 Amp Max Processing Current, 5.25" x 2.5" Magnetic Chuck, Welded Work Tank 13.75" x 10.5" x 5.5" with Fluid Return.
