USED 2009 Rexroth H250-AKP.A10VSO45-18,5KW
Overview
Description

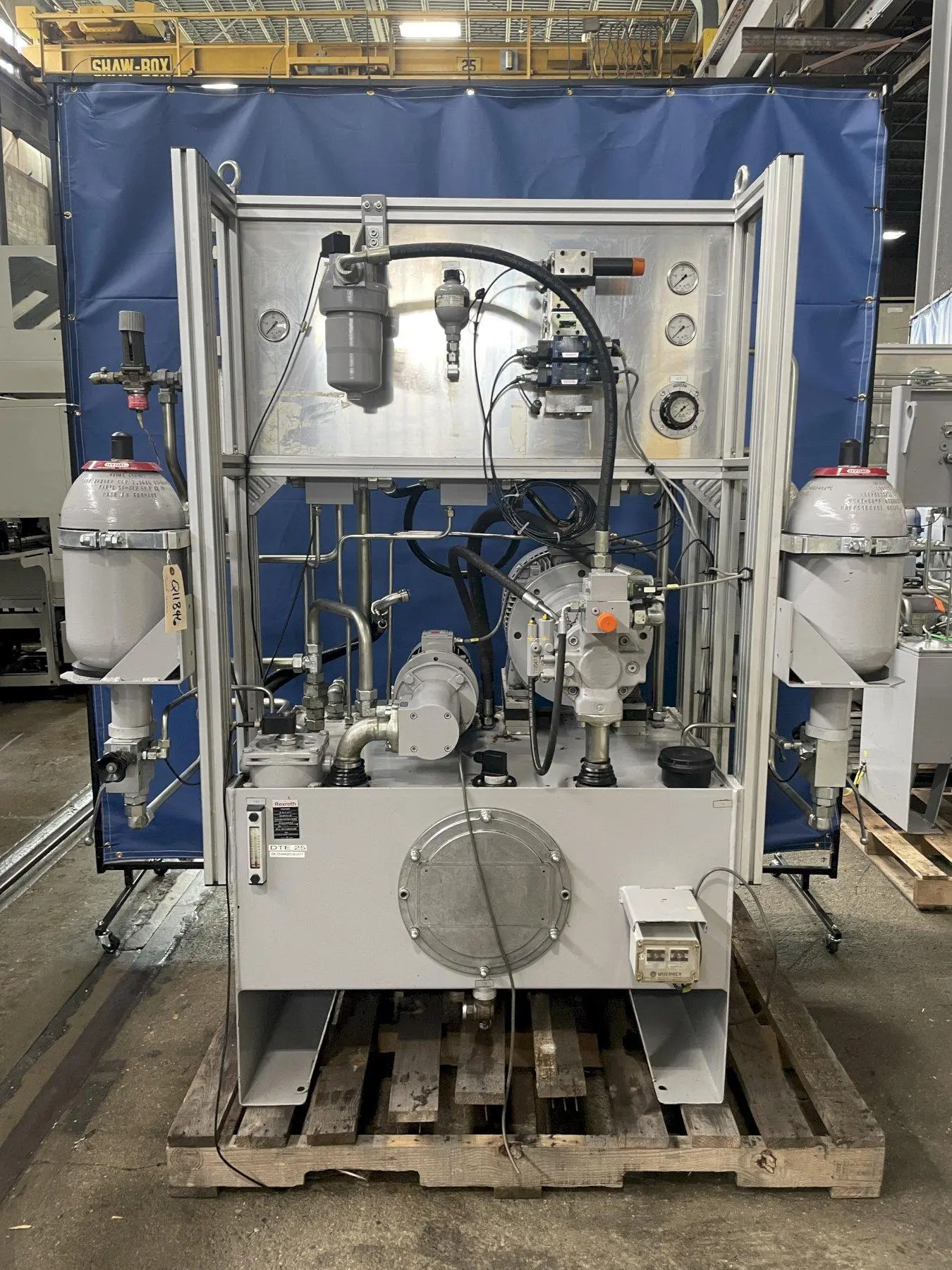

REXROTH HYDRAULIC POWER UNIT, Model H250-AKP.A10VSO45-18,5KW, 25 HP, 22 GPM, 60-Gallon Tank, Siemens 1LA91834WA96-Z Motor, Rexroth Pump R901025419, New 2009.
Specifications
| Pump Capacity Displacement | 0 ft³ | 44 cm³ |
|---|---|---|
| Flow Rate | 22 US gpm | 83.3 L/min. |
| Motor Power | 25 hp | 18.6 kW |
| Maximum Pressure | 3,000 PSI | 206.8 bar |
| Tank Capacity | 60 gal | 227.1 L |
| Power Source | Electric Motor | Electric Motor |
| Motor Voltage | 480 V | 480 V |
| Cooling Method | Heat Exchanger | Heat Exchanger |
| Dimensions | 71 x 48 x 84 | 71 x 48 x 84 |
| Weight | 1600 | 1600 |
Pump Capacity Displacement: 2.7 Cu In/Rev
Flow Rate (Gallons per Minute): 22 GPM
Motor Horsepower: 25 HP
Maximum Pressure: 3000 PSI
Tank Capacity: 60 GAL
Pump Type: Axial Piston Variable Displacement
Power Source: Electric Motor
Motor Voltage: 480 VAC
Cooling Method: Plate Heat Exchanger
Approximate Dimensions: 71" x 48"
Approximate Height: 84"
Approximate Weight: 1,600 LBS
Equipped With
Siemens Motor 1LA90964KA96 60 Hz, 480V, 1.5 Kw, 2.85 A, 1755 RPM
Siemens Motor 1LA91834WA96-Z 60 Hz, 480V, 18.5 KW, 2.9A, 1770 RPM
Overpressure Protection
Funke Plate Heat Exchanger, R900219781
Fluid Temperature Gauge
Fluid Sight Level
Pump Part # R901025413, A10VS0 46 DFR1/31P
Valve Part # ZDR6 DP2-43/150YM, 4WE 6D62/EG24N9K4
