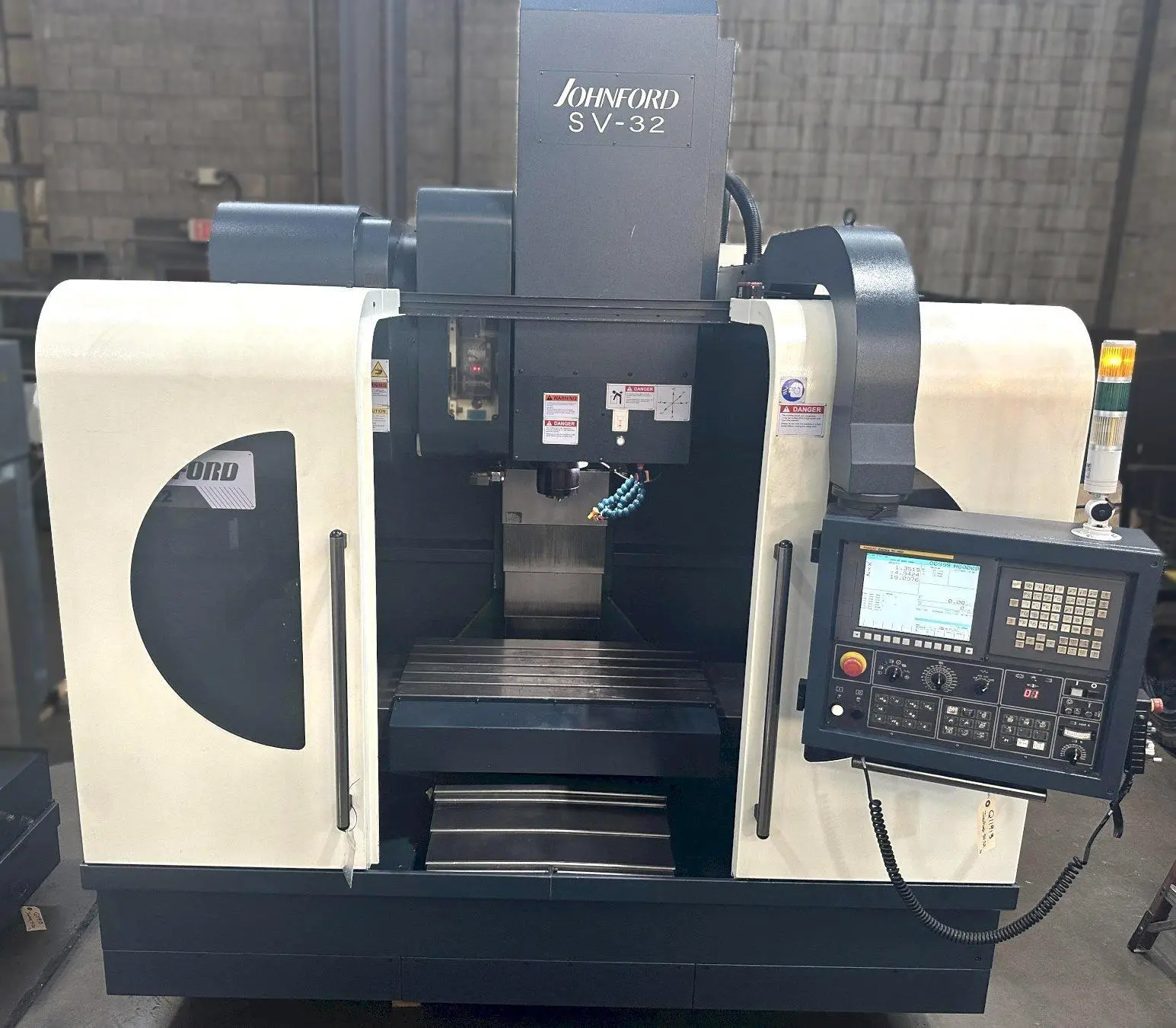

JOHNFORD SV-32 CNC VERTICAL MACHINING CENTER, Fanuc Oi-MD CNC Control, 40" x 20" Table, X=32", Y=20", Z=24", #40 Taper, 15 HP, 10000 Max Spindle RPM, 24 ATC, Chip Conveyor & Coolant System, New 2016.
| CNC Control | Fanuc Oi-MD CNC | Fanuc Oi-MD CNC |
| # Axis | 3 | 3 |
| Table-L | 39.4" | 1,000.8 mm |
| Table-W | 19.7" | 500.38 mm |
| Max Table Load Capacity | 1,320 lb | 598.7 kg |
| X-Axis (Longitudinal Travel) | 31.5" | 800.1 mm |
| Y-Axis (Cross Travel) | 19.7" | 500.38 mm |
| Z-Axis (Vertical Travel) | 24" | 609.6 mm |
| Max Clearance Tabletop to Spindle Nose | 28" | 711.2 mm |
| Min Clearance Tabletop to Spindle Nose | 3.94" | 100.08 mm |
| Distance Spindle Center to Column | 21.7" | 551.18 mm |
| X-Axis Rapid Traverse Rate | 1,181 in/min. | 30 m/min. |
| Y-Axis Rapid Traverse Rate | 1,181 in/min. | 30 m/min. |
| Z-Axis Rapid Traverse Rate | 787 in/min. | 20 m/min. |
| Spindle Power | 15 hp | 11.2 kW |
| Max Spindle Speed | 10,000 RPM | 10,000 RPM |
| Spindle Taper | CAT 40 | CAT 40 |
| Automatic Tool Changer Capacity (ATC) | 24 | 24 |
| Automatic Tool Changer Style | Side Mount Swing-Arm | Side Mount Swing-Arm |
| Machine Hours | 1789 | 1789 |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 92.5" x 86.6" x 118.4" | 92.5" x 86.6" x 118.4" |
| Weight | 14,200 LBS | 14,200 LBS |
Fanuc Oi-MD CNC Control, Remote Manual Pulse Generator, 10000 RPM Spindle, 24 Station Automatic Tool Changer, Work Light, Full Enclosure Splash Guard, Chip Conveyor & Coolant System.
* Excellent Condition, Only 1,789 Cutting Hours
