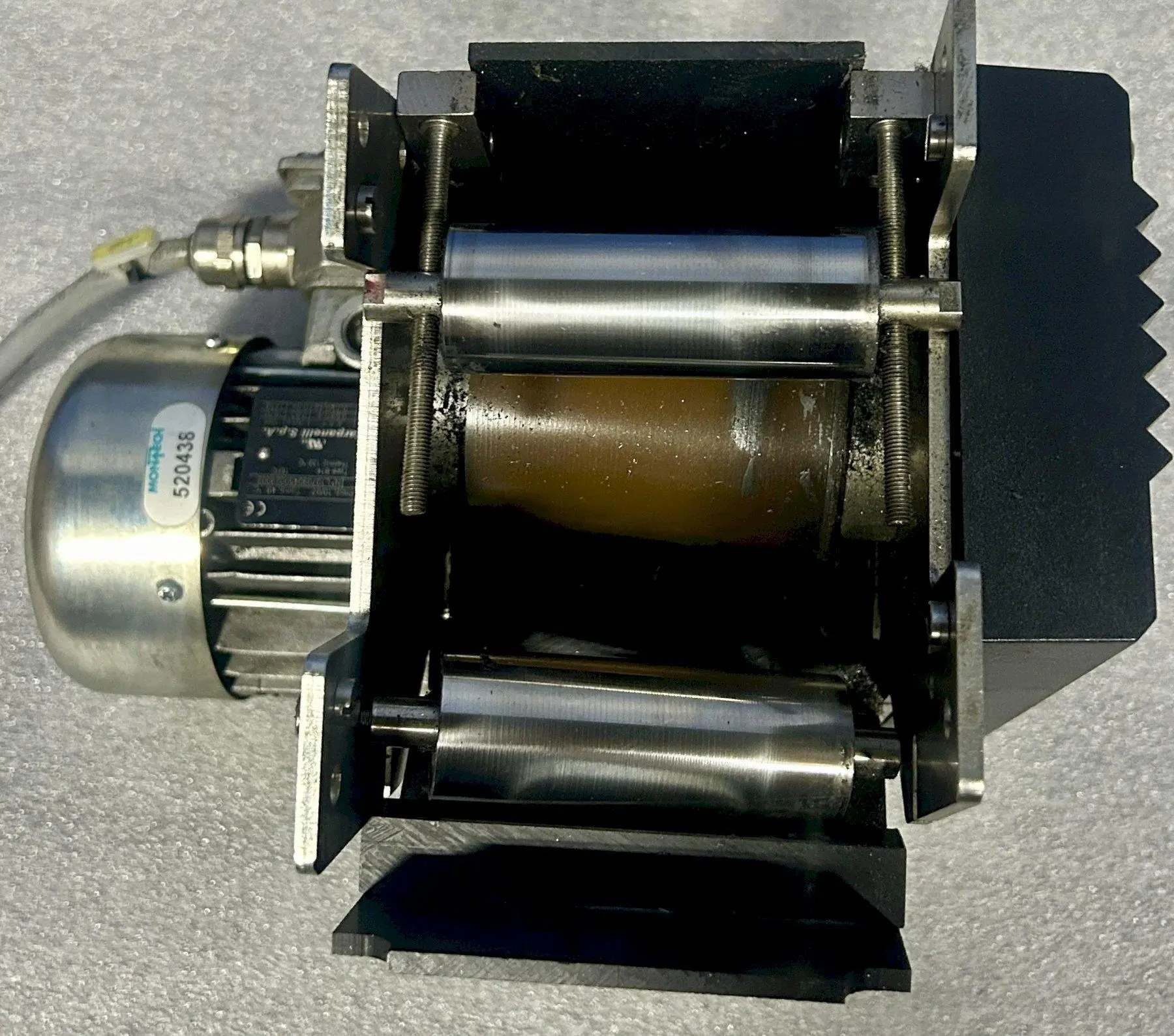

MONTECH TB-105 CONVEYOR DRIVE UNIT, Vertical, Single Belt, Chassis Width 105 mm.
| Overall Length | 16" | 406.4 mm |
| Overall Height | 9" | 228.6 mm |
| Belt Width | 3.15" | 80.01 mm |
| Motor Power | 0.1 hp | 0 kW |
| Electrics | 60 Hz, 3-Phase | 60 Hz, 3-Phase |
| Dimensions | 15 x 16 x 9 | 15 x 16 x 9 |
| Weight | 21 LBS | 21 LBS |
Mfr Part Number: TB-105
Type: Single-Belt
Belt Type: FNI-5E
Belt Width: 80 mm
Belt Length: 2,627 mm
Belt Speed: 4.1 m/min
Belt Tension: 0.67%
Belt Max Load: 600 N
AC Motor Type: Asynchronous
Motor Power: 45 W
Base Speed: 1,360 RPM
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Rating: IP55
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Approximate Dimensions: 15" x 16"
Approximate Height: 9"
Approximate Weight: 21 LBS
