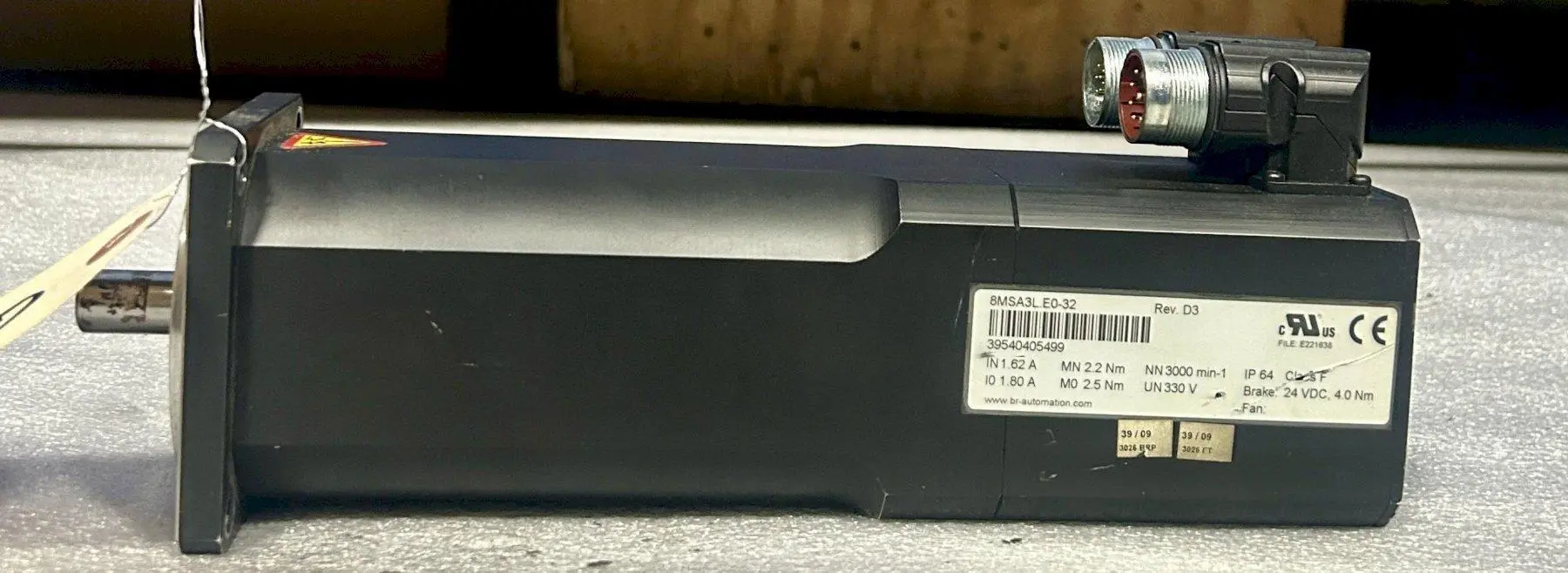

B&R SERVO MOTOR 8MSA3L.E0-32, 3000 RPM, Self-Cooling, Size 3, Large Rated Torque, 3-Phase Synchronous.
| Current Type | AC | AC |
| Torque (Stall) | 2.5 Nm | 2.6 N |
| Amp (Stall) | 1.8 A | 1.8 A |
| Voltage | 330 V | 330 V |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 0.9 hp | 0.7 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Encoder | EnDat Single-Turn, 512 lines | EnDat Single-Turn, 512 lines |
| Dimensions | 15" x 8" x 8" | 15" x 8" x 8" |
| Weight | 12 lbs | 12 lbs |
